ELNA eXcellence 680+ - Essential Parts; Names of Parts

3

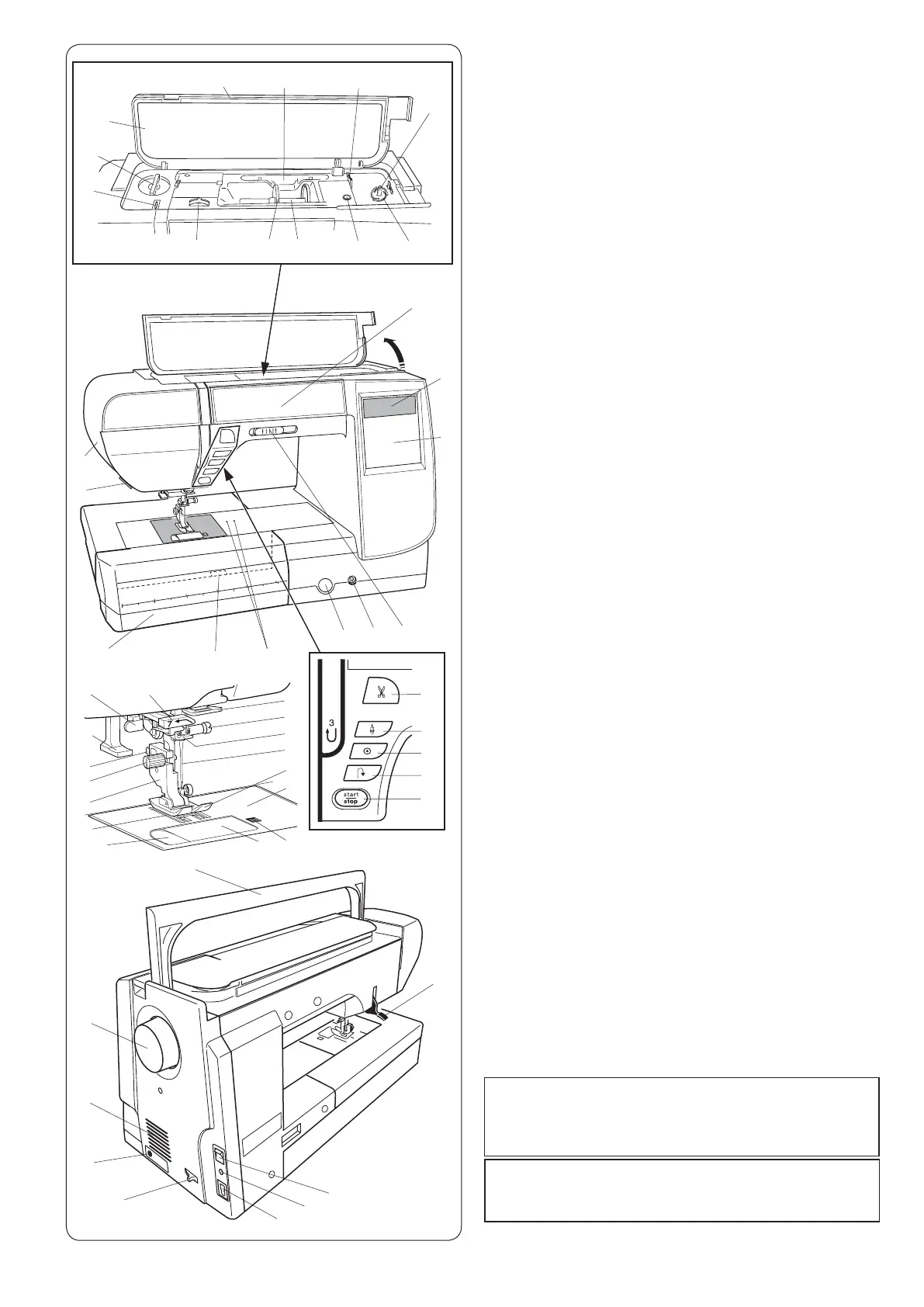

Thread take-up lever
Foot pressure dial
Reference chart
Top cover
Touch panel stylus holder
Bobbin thread cutter B
Bobbin winder spindle
Bobbin thread cutter A
Hole for extra spool pin
Spool pin
Spool holder (large)
Thread tension dial
Face cover
Thread cutter
Extension table (accessory storage)
Needle plate release lever
Holes for circular pivot pin
Start/stop button
Reverse button
Auto-lock button
Needle up/down button
Thread cutter button
Feed balancing dial
Knee lifter socket
Speed control slider
Touch panel (Function keys)
LCD screen
Foot storage compartment
Lower thread guide
Needle clamp screw
Needle bar thread guide
Needle
Zigzag foot A
Needle plate
Hook cover release button
Hook cover plate
Thread cutter
Feed dog
Foot holder
Setscrew
Lever
Needle threader
Buttonhole lever
Needle threader guide
Carrying handle
Handwheel
Ventilation opening
Thread cutter switch jack*
Drop feed lever
Machine socket
Foot control jack
Power switch
Presser foot lifter
ESSENTIAL PARTS
Names of Parts
q
w
e
r
t
y
u
i
o
!0
!1
!2
!3
!4
!5
!6
!7
!8
!9
@0
@1
@2
@3
@4
@5
@6
@7
@8
@9
#0
#1
#2
#3
#4
#5
#6
#7
#8
#9
$0
$1
$2
$3
$4
$5
$6
$7
$8
$9
%0
%1
%2
%3
NOTE:
To carry the sewing machine, hold the carrying handle
with your hand, and support the sewing machine with
the other hand.
NOTE:
Sewing machine design and specications are subject
to change without prior notice.
* Thread cutter switch is an optional item.
