Elstat ems25 Series User Manual

www.elstat.io
82
11. Annexe | UL information
Note
This annexe applies to ems25+ controllers, 120VAC only
ELECTRICAL RATINGS
INPUTS
SUPPLY 120VAC, 3VA, 50/60Hz
(L) line in (7)
(N) neutral (5)
TEMPERATURE SENSOR INPUT 5Vdc, Limited Energy Circuit, 15W or less (class 2) appliance sensor (3)
DOOR/SENSOR INPUT 5Vdc, Limited Energy Circuit, 15W or less (class 2) condenser sensor (2)
AUXILIARY INPUT 5Vdc, Limited Energy Circuit, 15W or less (class 2)
door switch (1)
OUTPUTS
MODEL TYPE RATING LOAD TYPE CYCLES TERMINAL
All models
Compressor relay
(K3)
6FLA/36LEA
120VAC
Motor 100K
(L) line in (7)
compressor (6)
All models Lighs relay (K2) 120VAC 250W Ballast 6K
(L) line in (7)
lights (4)

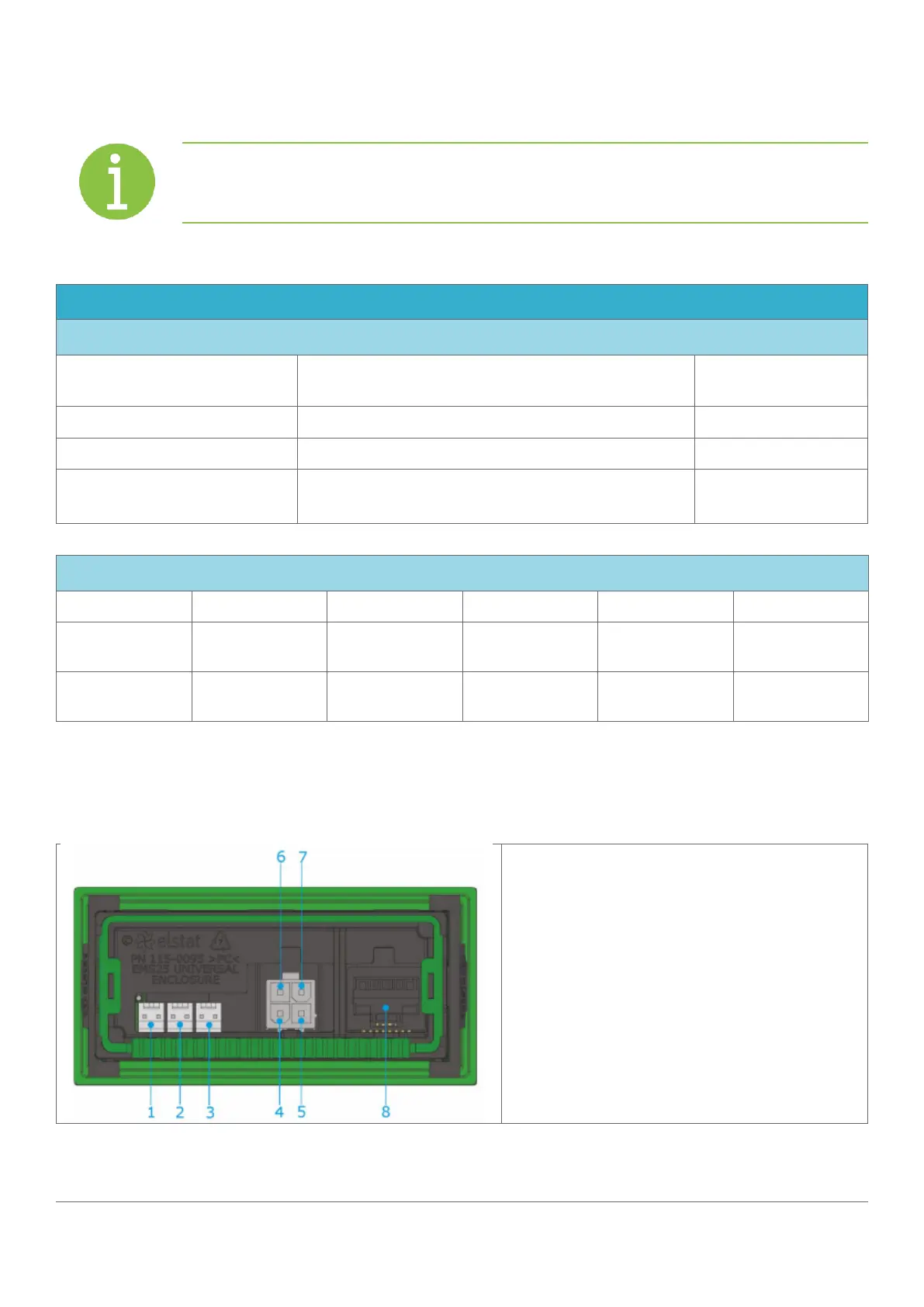

11.1 ems25+ rear view (input reference)
1. Door switch
2. Condenser sensor
3. Appliance sensor
4. Lights out
5. Neutral
6. Compressor out
7. Line in
8. Micro RMD and parameter programming port
