ELTEC BAB 740 - Connector Assignments; On-Board Connectors; Keyboard and Mouse Connector; Table 2: KEYB (6-Pin Miniature Circular Connector)

Connector
Assignments
Connector Assignments User's Manual
BAB 740
3—1
3 Connector Assignments
Please check the connector assignments before making any
connections!

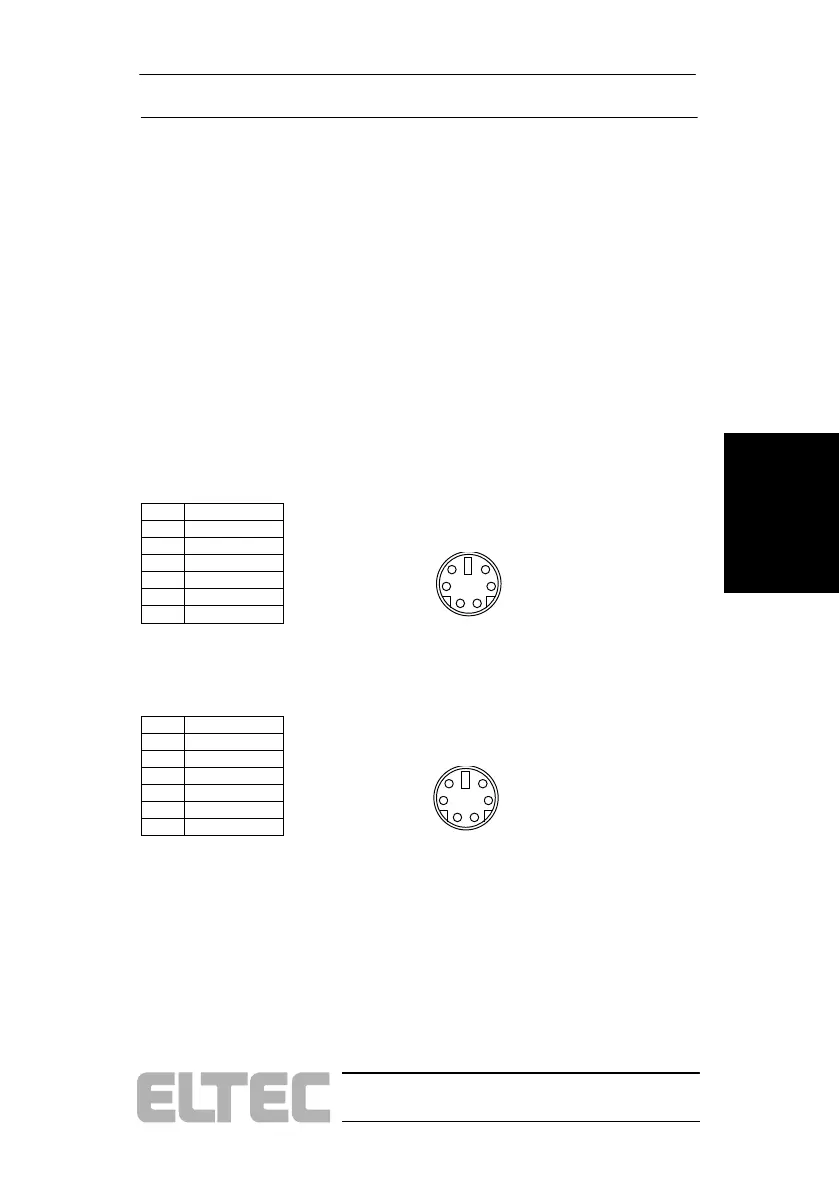

3.1 On-board Connectors
3.1.1 Keyboard and Mouse Connector
Table 2: KEYB (6-pin miniature circular connector)
Pin Signal
1
KBDATA
2
nc
3
GND
4
+5V
5
KBCLK
6
nc
6
2 1
43
5
Front View
Table 3: MOUSE (6-pin miniature circular connector)
Pin Signal
1
MDATA
2
nc
3
GND
4
+5V
5
MCLK
6
nc
6
2 1
43
5
Front View
