ELTEC BAB 740 - Parallel I;O Connector; Table 6: PRN (25-Pin Min-D Connector)

Connector
Assignments
Connector Assignments User's Manual
BAB 740
3—3
3.1.4 Parallel I/O Connector

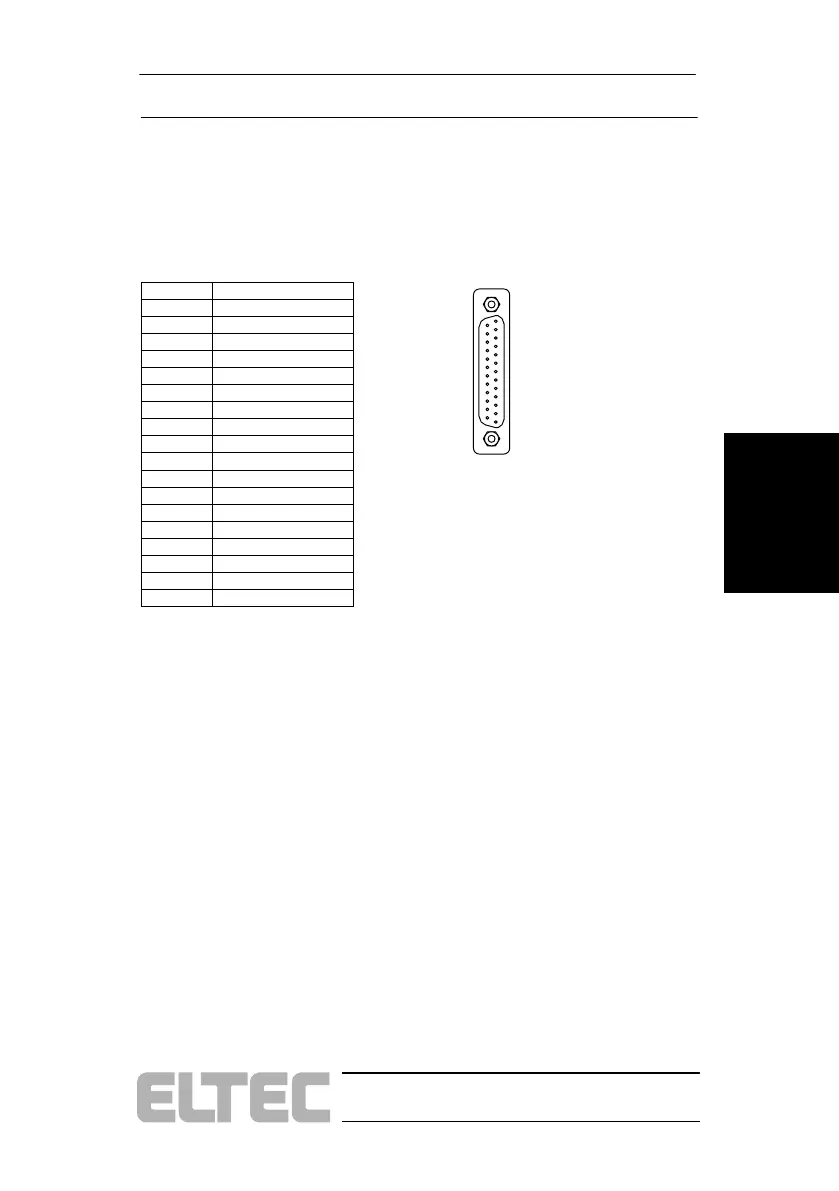

Table 6: PRN (25-pin min-D connector)
Front View
Pin Signal
1
/STROBE
2
D1
3
D2
4
D3
5
D4
6
D5
7
D6
8
D7
9
D8
10
/ACK
11
BUSY
12
PE (Paper End)
13
SLCT
14
/AUTO FEED
15
/ERROR
16
/INIT
17
/SLCT IN
18-25
GND
Pin 1
