ELTEC BAB 740 - Eide; Table 13: Pinout EIDE Connector X105 (on ADAP-740)

Connector
Assignments
User's Manual
BAB 740
3—10
Connector Assignments
3.4.2 EIDE
Like the floppy disk drive an EIDE drive is connected with its flat
cable to the adapter. The power supply cable of the EIDE device
must be directly connected to the power supply.
Up to two EIDE drives (harddisk, CD-ROM) can be connected.
Cable length should not exceed 40 cm to avoid instable operation.
EIDE is only available on board versions with EIDE option.

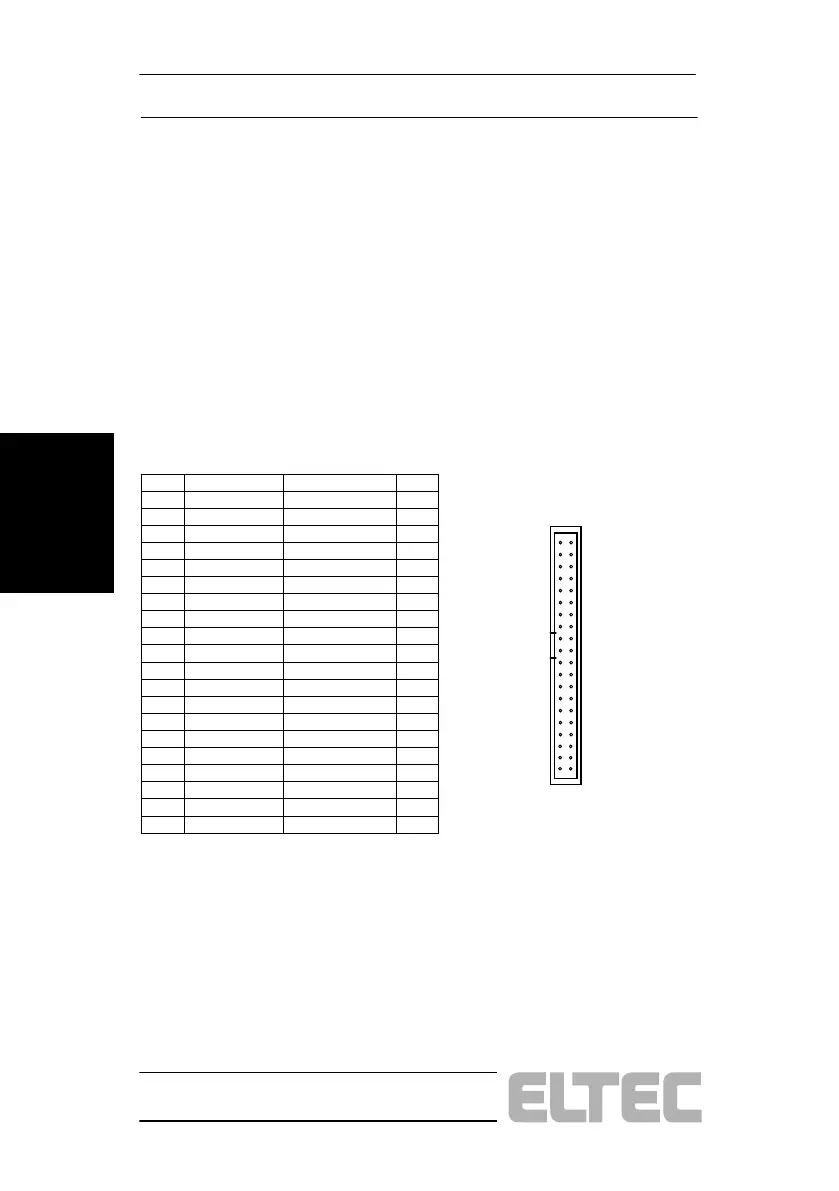

Table 13: Pinout EIDE Connector X105 (on ADAP-740)
Pin Name Name Pin
1
/RST GND
2
3
D7 D8
4
5
D6 D9
6
7
D5 D10
8
9
D4 D11
10
11
D3 D12
12
13
D2 D13
14
15
D1 D14
16
17
D0 D15
18
19
GND nc
20
21
REQ GND
22
23
/IOW GND
24
25
/IOR GND
26
27
IORDY nc
28
29
/ACK GND
30
31
IRQ14 nc
32
33
A1 nc
34
35
A0 A2
36
37
/CS1 /CS3
38
39
/ACT GND
40
12
39 40
Front View
