Jumpers
Jumpers User's Manual
BAB 740
5—2

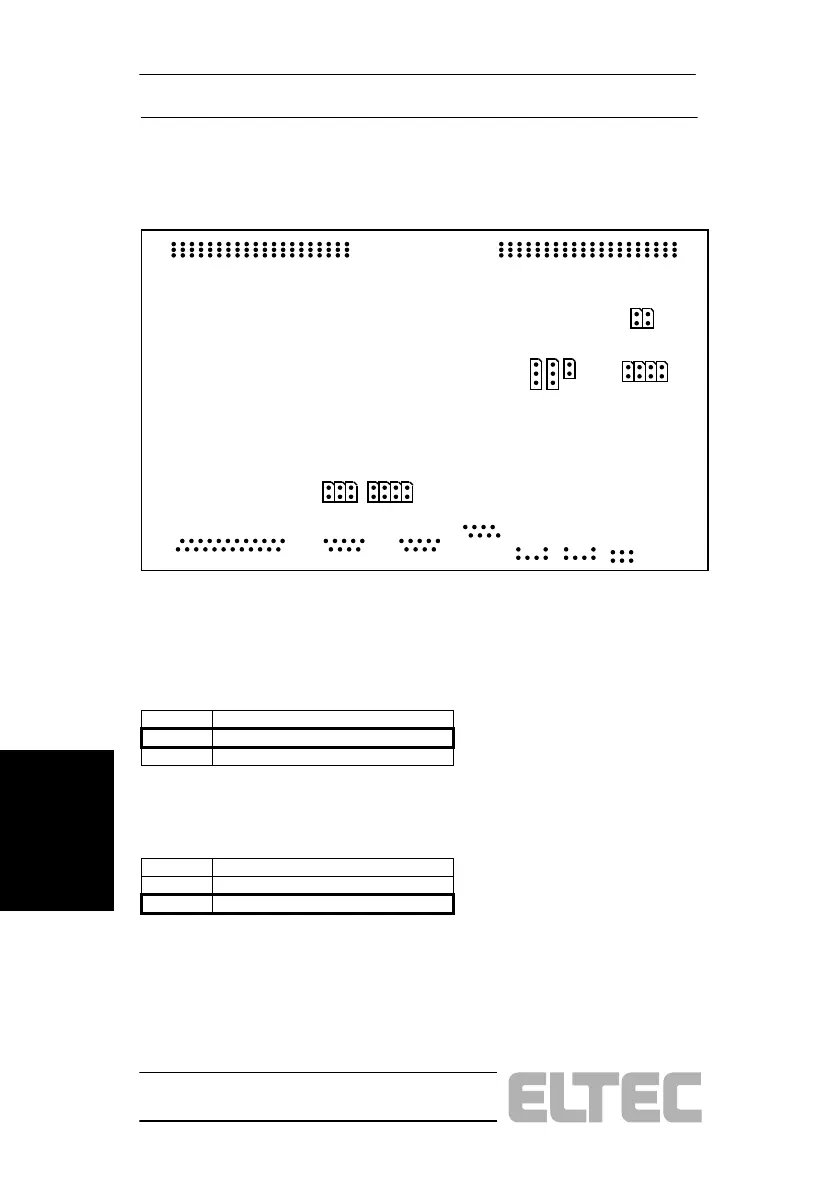

Figure 4: Solder Side Jumpers
J103 J104 J105 J106
J102 J101
J602 J601 J603
J111 J112 J113 J107 J108 J109 J110
5.1.1 User-settable Jumpers
Table 20: Boot ROM Select (J114)
J114 Description
open Boot from Boot-ROM
Short Boot from User-ROM (default)
Table 21: SCSI Termination (J1601)
J1601 Operation
Open disable termination
short enable termination (default)
