APPENDIX B TYPICAL BUILDINGS OF NETWORKS ON BASIS OF EAPS PROTOCOL

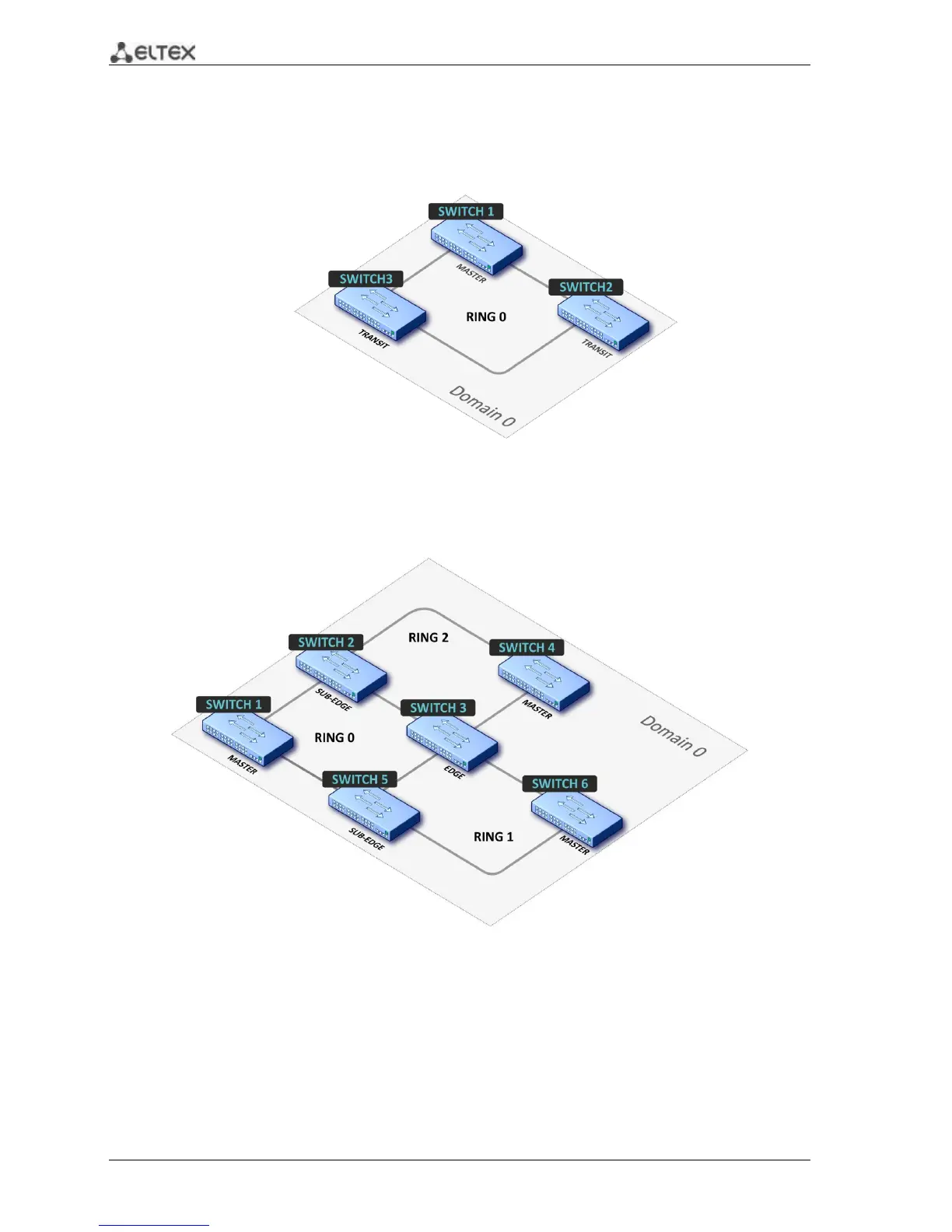

1. Topology simple "ring"
In network topology there is only one ring. In this case it is required to define for it only EAPS
domain.
2. Topology one domain with several "rings"
In topology of network 3 rings (can be 2 or more) and 2 common hubs between them. In this case it
is required to define EAPS domain and establish one ring as main and rest of rings - as secondary.
