MES1000, MES2000 Ethernet Switches 23

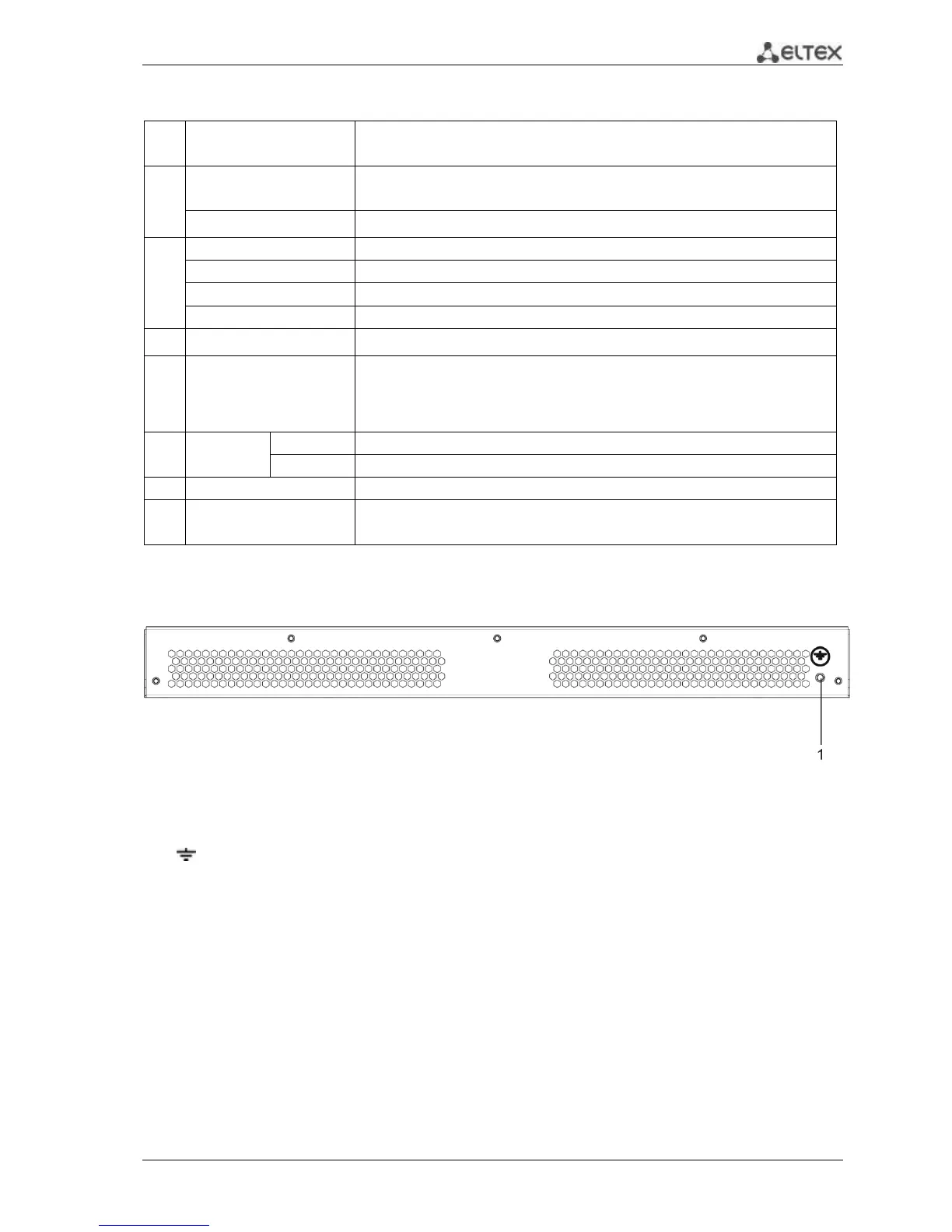

Table 2.12 — Description of connectors, LEDs and controls located on the front panel MES1124M,
MES2124M
110-250VAC, 60/50Hz
max 1A
Connector for AC power supply
Connector for DC power supply 48В
Stacked device activity mode indicator—master or slave
Indicator of device number in a stack
RS-232 console port for local control of the device
Functional key that reboots the device and resets it to factory settings:
- pressing the key for less than 10 seconds reboots the device.
- pressing the key for more than 10 seconds resets the terminal to factory
settings
24 ports 10/100 Base-TX (RJ-45)
24 ports 10/100/1000 Base-T (RJ-45)
LED indication of optical interface status
Combo ports: 10/100/1000 Base-T (RJ45) ports and slots for 1000Base-X
Combo transceiver installations
The rear panel layout of MES1124M, MES2124M series switches is depicted in Fig. 11.
Fig. 11 – MES1124M, MES2124M, rear panel
An earthing bolt is located on the rear panel of MES1124M, MES2124M series devices and marked
with (1) symbol.
