EM TEST AutoWave

Manual for Operation V 5.9.1 17 / 45

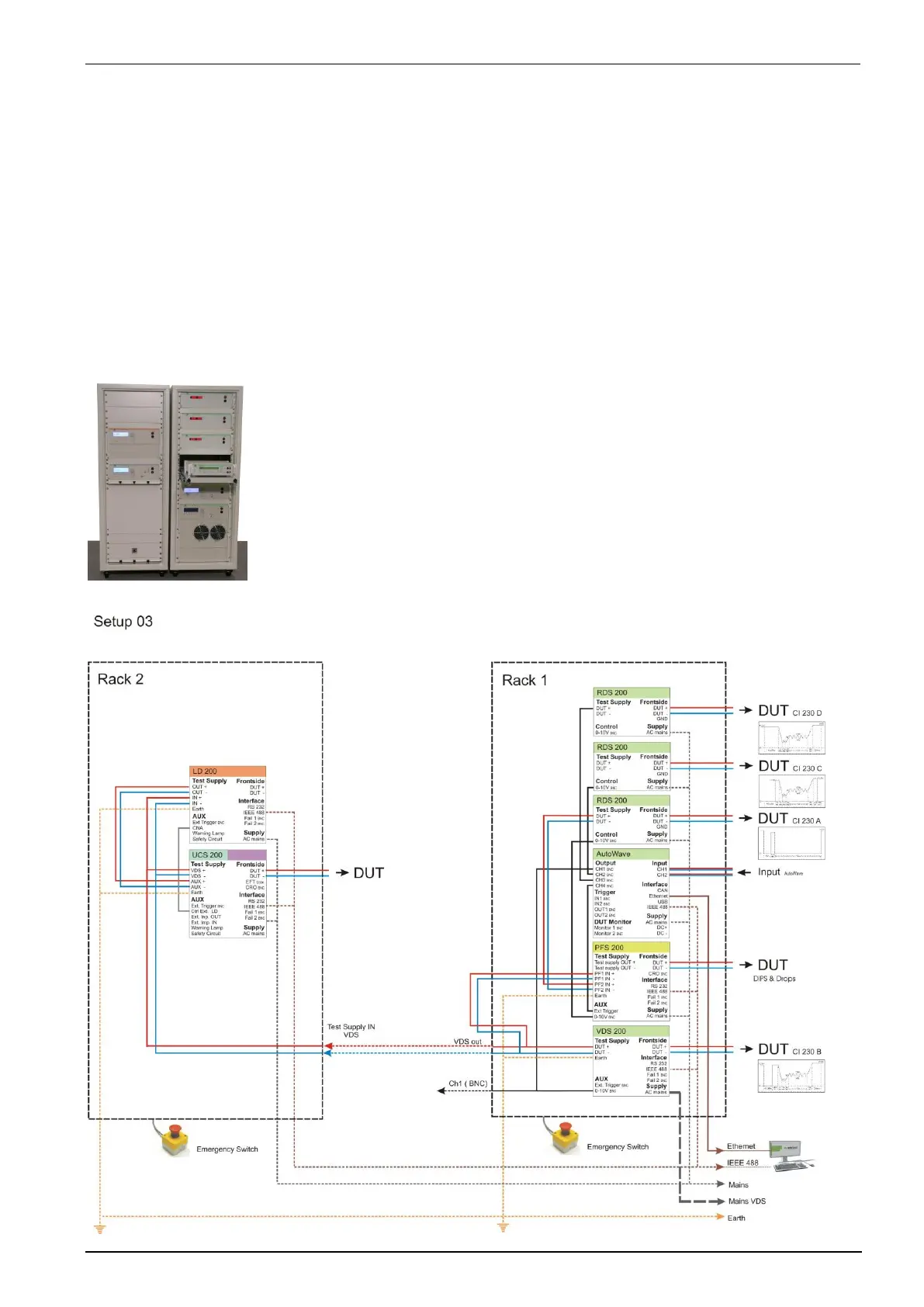

Setup 3:

example with:

Rack 1

RDS 200

AutoWave

PFS 200N

VDS 200N

Rack 2

LD 200N

UCS 200N

This configuration is suitable for testing Ford AC CI-230 tests with four waves at the

same time. The figure shows the output for:

- General tests at UCS output

- Dips and Drops at PFS 200

- Ford AC CI-230 at RDS and VDS outputs

Note : The default connection between the two racks is

Test Supply Out VDS – Test Supply IN PFS.

Dips and Drops are available on UCS 200 output, when the connection

Test Supply out PFS is used. The disadvantage is the additional voltage drop

inside the UCS 200.

Supply connections from VDS200Nx to PFS200N can be wired inside the rack.

Automotive rack for with 4 DC output for Ford AC CI-230 test
