EM TEST AutoWave
Manual for Operation V 5.9.1 42 / 45
Basic Waves
The AutoWave generates the waves like an arbitrary generator as PointWaves, where all samples are stored in
a file. As an advantage the AutoWave firmware generates the waves as segmented waves from a parameter
list. This has the advantage to save a lot of memory and to create waves who can not be realized by
PointWaves.

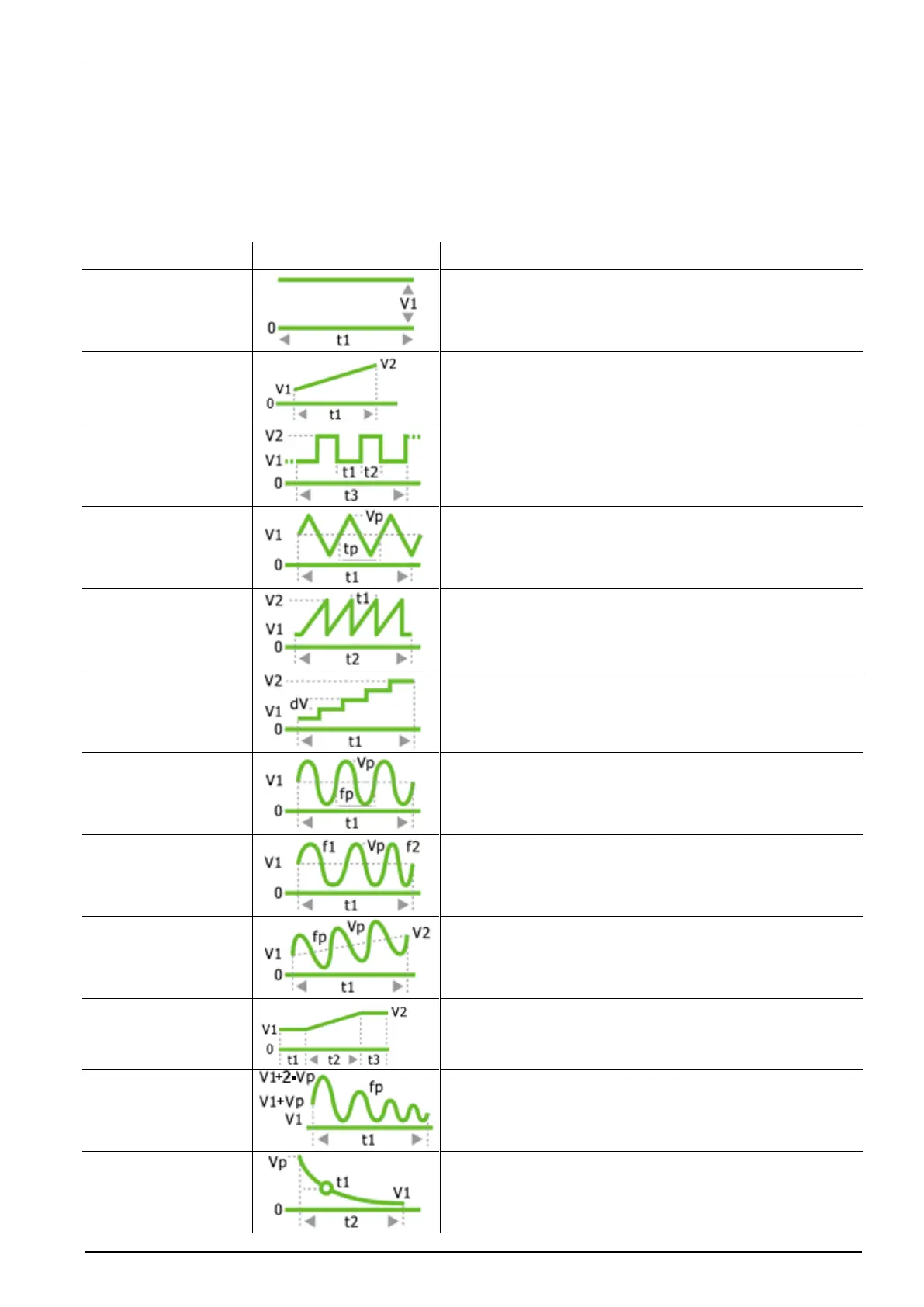

The following waves are programmed inside the AutoWave:
Constant DC voltage at V1 level during the selected
duration t1.
Voltage ramp where the time t1 goes from 0% to 100% or
10% to 90%
Square function with defined voltage parameters V1 and V2
offset and the square duration of V1 and V2.
Sine wave with frequency sweep over the duration t1. The
sine starts with the frequency f1 and ends with the
frequency f2. The frequency can sweep up or down with the
frequency.
Description:
Damped sine with asymptote end voltage on Vp2 offset
level = V1-Vp1
Description:
This function simulates a fall or rise of an exponential
impulse waveshape. It simulates a typical fall or rise of a
capacitive impulse waveshape.
