EM TEST AutoWave User Manual

EM TEST AutoWave
Manual for Operation V 5.9.1 34 / 45
4.

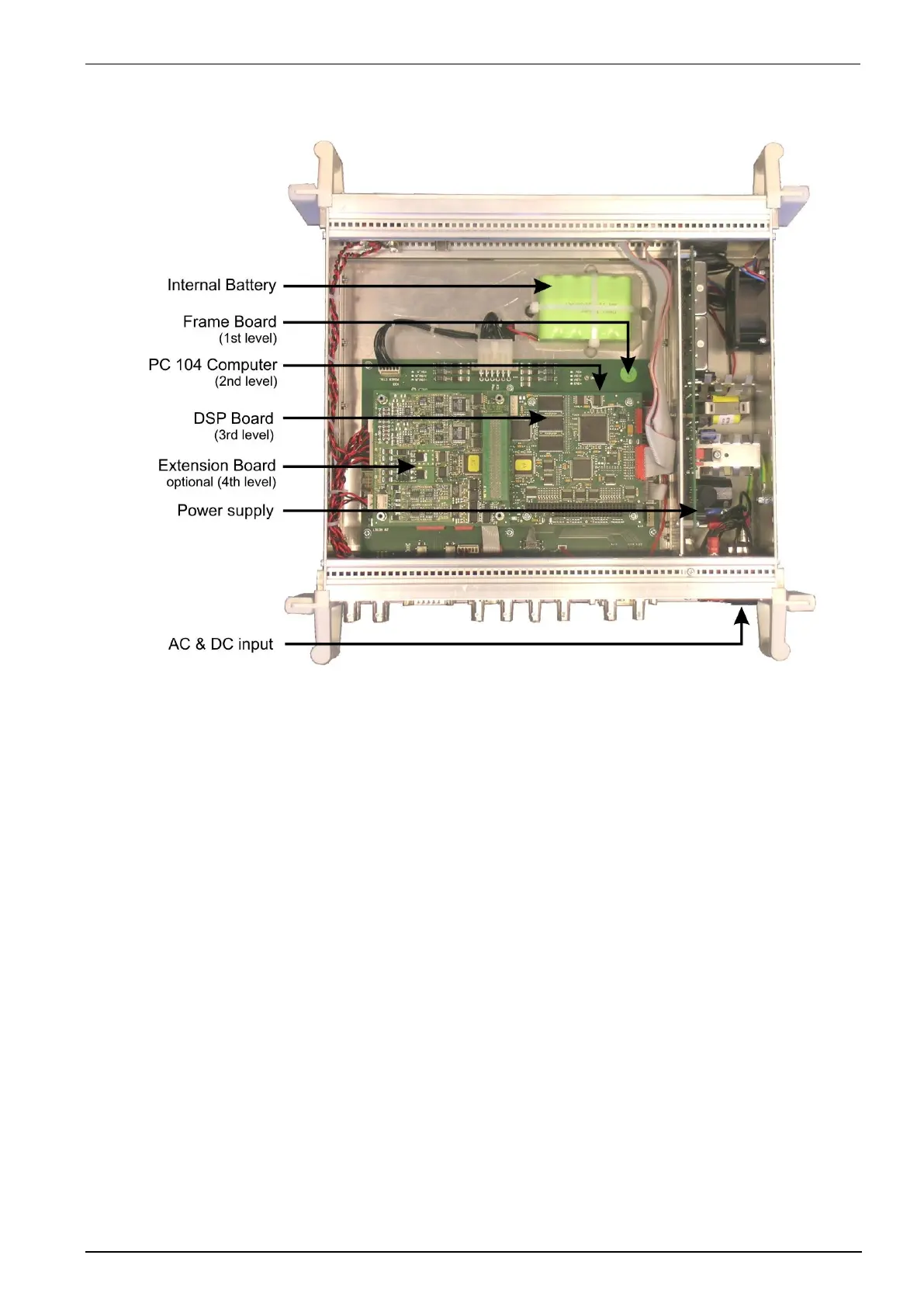

Test Equipment
PC 104 Computer
The computer is a PC 104 board with AMD SC520 processor and 32 MB SDRAM
DSP Board
The DSP board is based on the DSP 56303 100 MHz from Motorola which includes two output channels with a
resolution of 16 bits / 500kHz
Extension Board
The extension board is a mezzanine card that includes:
- 2 input channels 16 bits / 500kHz
- 2 output channels 16 bits / 500kHz
Power supply
The AutoWave can be operated on two different power supply system.
- AC mains power
- DC supply from car battery
AC input
The AC mains power input is a wide range AC input that allows to operate the AutoWave in every country of the
world. With the voltage input range from 90V ... 250V and 47Hz ... 63Hz it is not necessary to use an adapter
transformer.
DC Input
The DC input is used for mobile operation in a car. The input is designed for 12V and 24V systems
Internal Battery (optional)
An internal battery pack is used for buffer voltage dips. In case of dropouts below approx. 3V, the device will
switch off and reboot when the DC voltage is higher than 10V. The Autowave does not operate with the
internal buffer battery.

EM TEST AutoWave Specifications

General

Brand	EM TEST
Model	AutoWave
Category	Portable Generator
Language	English
