EM TEST AutoWave User Manual

EM TEST AutoWave
Manual for Operation V 5.9.1 31 / 45

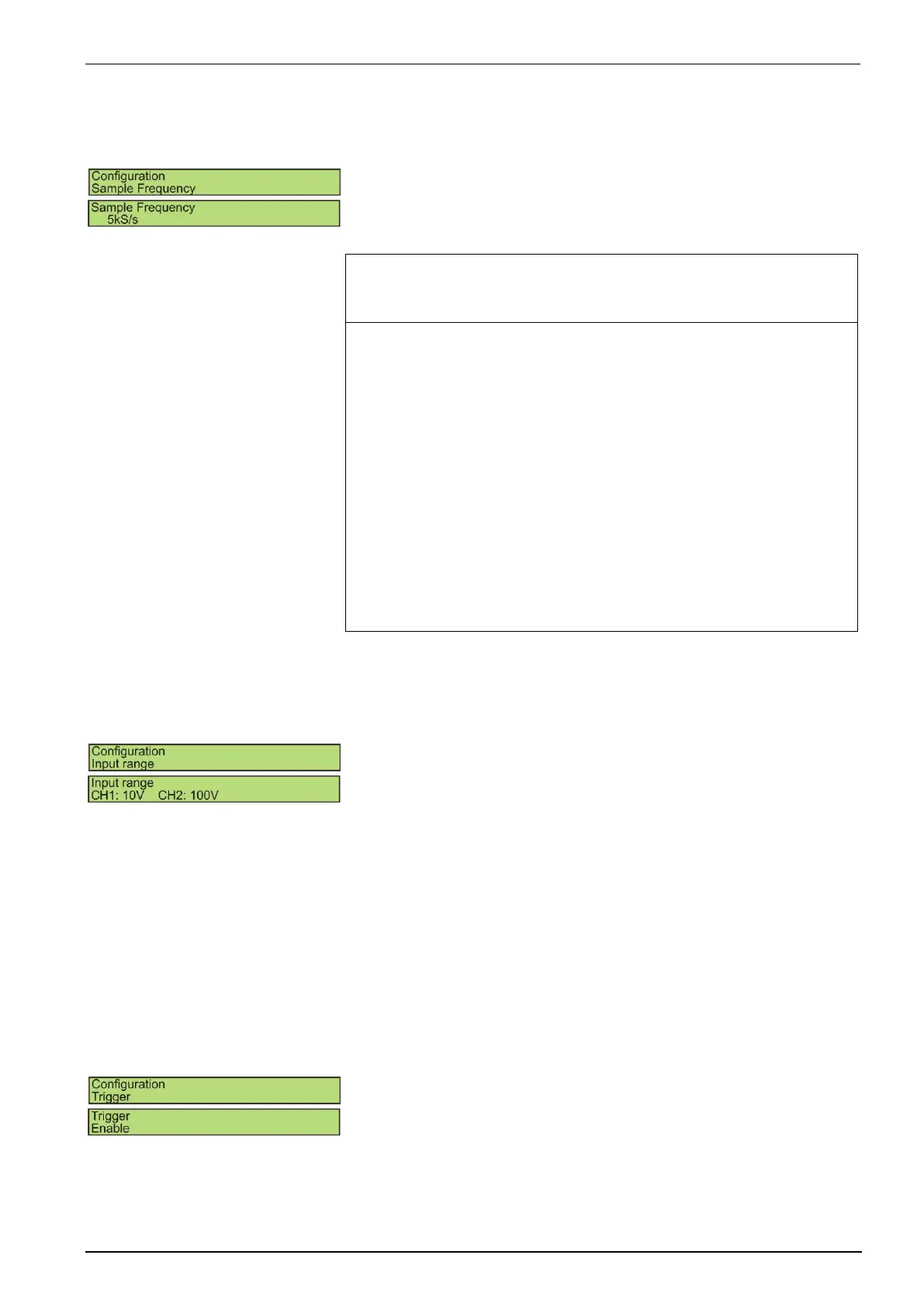

3.2.4.
Sample frequency (only with the option record)
Sample frequency for data recording. The max. sampling frequency is limited by the number of used measuring
channels.
Sampling frequency
Default 5kS/s
Sampling Frequency [kHz] depends on the number of channels
Single channel Dual channel
CH1 or CH2 CH1 and CH2
500kHz --
250kHz --
100kHz 100kHz
50kHz 50kHz
25kHz 25kHz
10kHz 10kHz
5kHz 5kHz
2.5kHz 2.5kHz
1kHz 1kHz
500Hz 500Hz
250Hz 250Hz
100Hz 100Hz
50Hz 50Hz
25Hz 25Hz
10Hz 10Hz
5Hz 5Hz
3.2.5.
Input Range (only with the option record)
Setting the measuring input range of the two input channels
Input Range bipolar input. Each channel can be set individually.
Channels : CH 1, CH2
Default : 100V
Ranges for both channels
 5V
 10V
 20V
 50V
 100V
3.2.6.
Trigger
Setting of the trigger status
Enable: Function of Trigger IN is enabled.
- Trigger IN 1, IN 2
Default : Enabled
Disable: Function of Trigger IN is disabled.
- Trigger IN 1, IN 2
