EM TEST AutoWave
Manual for Operation V 5.9.1 8 / 45
2.2.

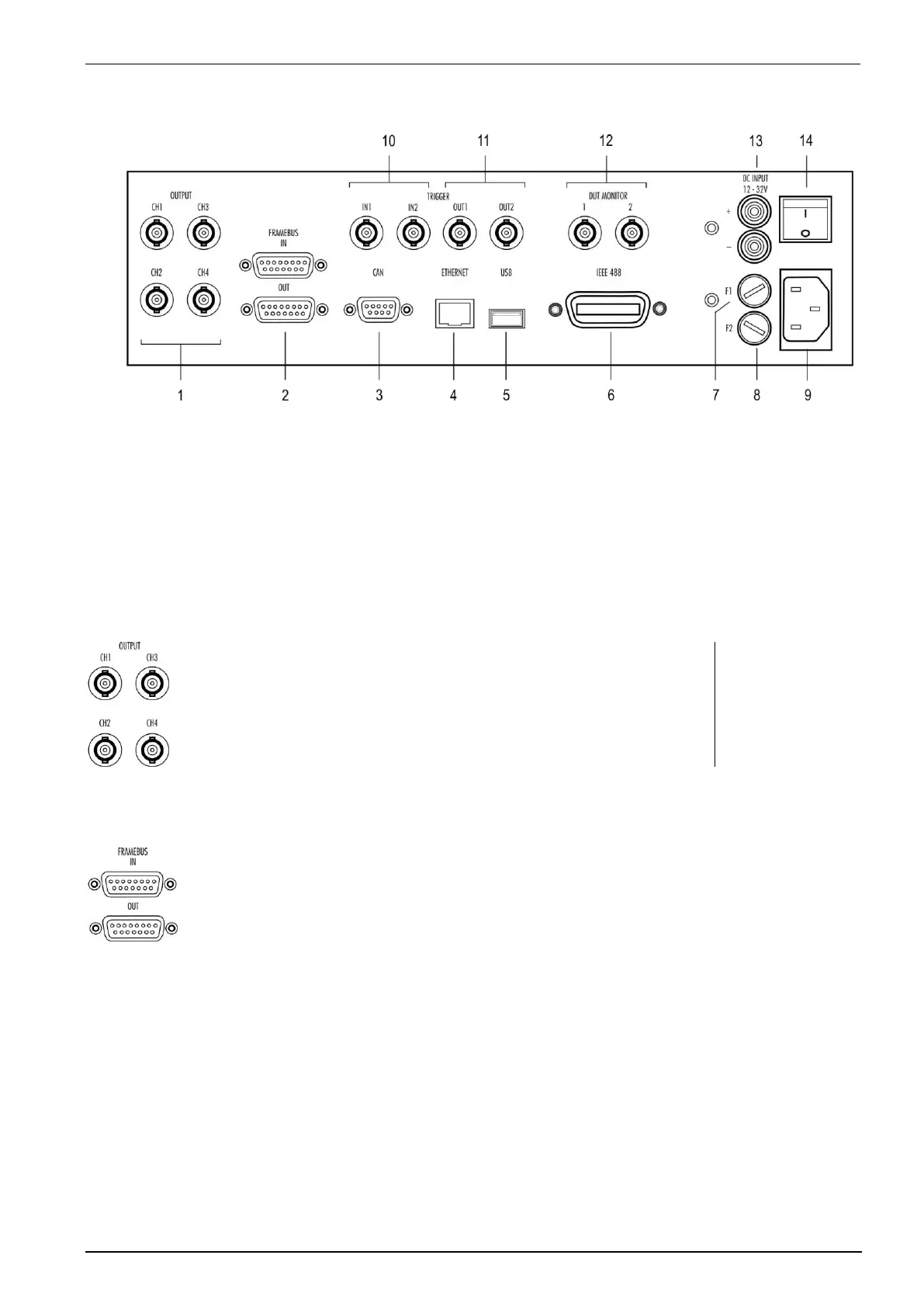

Rear view
1 Output channel 1...4
2 Framebus IN / OUT
3 CAN port
4 Ethernet port
5 USB port
6 GPIB / IEEE 488 port
7 Fuse F1 DC 3.15A
8 Fuse F2 AC 1A
9 Mains 90V – 250V
10 Trigger IN1 / IN2
11 Trigger OUT1 / OUT2
12 DUT monitor
13 DC supply 12 – 32V
14 Power on switch
1. Output Channel 1...4
BNC output plug to controll external DC sources.
Example:
CH 1 : Default channel for the battery power supply.
CH 2 : Auxiliary DC power for dips
CH 3 : Auxiliary channel for Ford specs.
CH 4 : Auxiliary channel for Ford specs.
Output range:10V
Impedance 50Ω
2. Framebus IN / OUT
Daisy Chain bus with Sub D 15 poles male and
female connectors.
This port is used as communication and control bus
between EM Test devices.
