EM TEST AutoWave User Manual

EM TEST AutoWave
Manual for Operation V 5.9.1 13 / 45
2.3.
Put in service
2.3.1.
Unpacking
Please check if the packing is not damaged. If there is an external damage, make inform your representative.
2.3.2.
Installation in a System
The AutoWave is used to control one or more DC sources and / or for measuring and recording of the transient
behavior of a voltage during a sequence.
2.3.2.1.

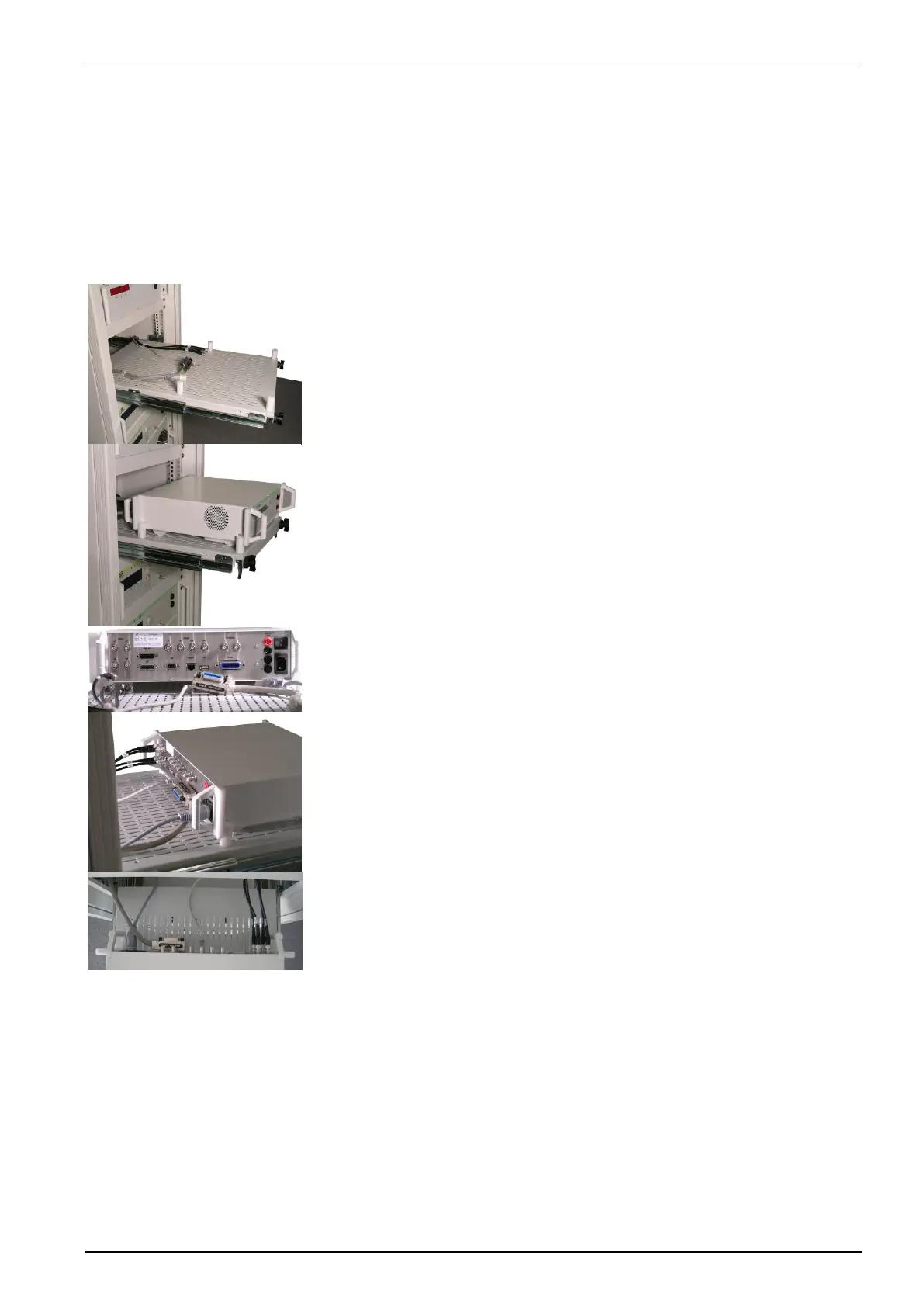

Installation or mount in a 19” Rack
1. Unlock the two knobs on the front side and pull out the drawer
2. Mount the AutoWave into the four bolts. This fixation will allow the user
to uncase the equipment in a short time for external use.
3. Connect the cables to the AutoWave
Output CH1 to CH4 BNC
Mains 115...230V
Interface IEEE / GPIB
Ethernet if available
Trigger IN / OUT BNC ( if available )
DUT Monitor BNC ( if available )
4. Final work
- check the proper cabling
- insert the drawer
- fix the two knobs
