EM TEST dito User Manual

EM Test dito
Instruction Manual V 2.30 24 / 36
5.
Technical data
5.1.
dito
Test voltage
Contact discharge (CD) 500V to 10kV
Air discharge (AD) 500V to 16.5kV
Resolution
In 100V steps
Tolerance
5% at the discharge tip
Polarity
Positive, negative, alternating
Trigger mode
Single
Single discharge by pressing the trigger
Continuous
Continuous discharges as long as the trigger is pressed
Auto
Automatic discharges for tripod setup
External
Via optical link and esd.control
Counter
Count down
1 ... 30‘000
Count up
0 ... 999‘999
Operating mode
Manual
Via function keys of dito
Remote control
Via optical interface and RS 232 adapter (option)
Display
LCD; graphical display with 128x64 pixel
Supply
Battery mode
Continuous operation for >70000 discharges at 16.5kV (LiFePO4)
Save mode
Auto-Switch-Off after 10 minutes without any operation
Battery voltage
12.8V / 1000 mAh
Self discharge
3 – 5% /month
Charging cycles
> 1000
Connector
Lemo part number : FFA.0S.304.CLA37
Weight
180g
Housing
Not flammable as per ABS-UL94V0
General data
Temperature range
15 – 35C (59 to 95°F) As per IEC 61000-4-2
Relative humidity
30 – 60% non condensing As per IEC 61000-4-2
atm. pressure
86 kPa (860 mbar) to 106 kPa (1 060 mbar) As per IEC 61000-4-2
Total weight
app. 870g
5.2.
MAD mains Adapter
Supply voltage
90V – 264V , 50Hz-60Hz
Power
5VA
Fuse
500mA TT
Weight
215g

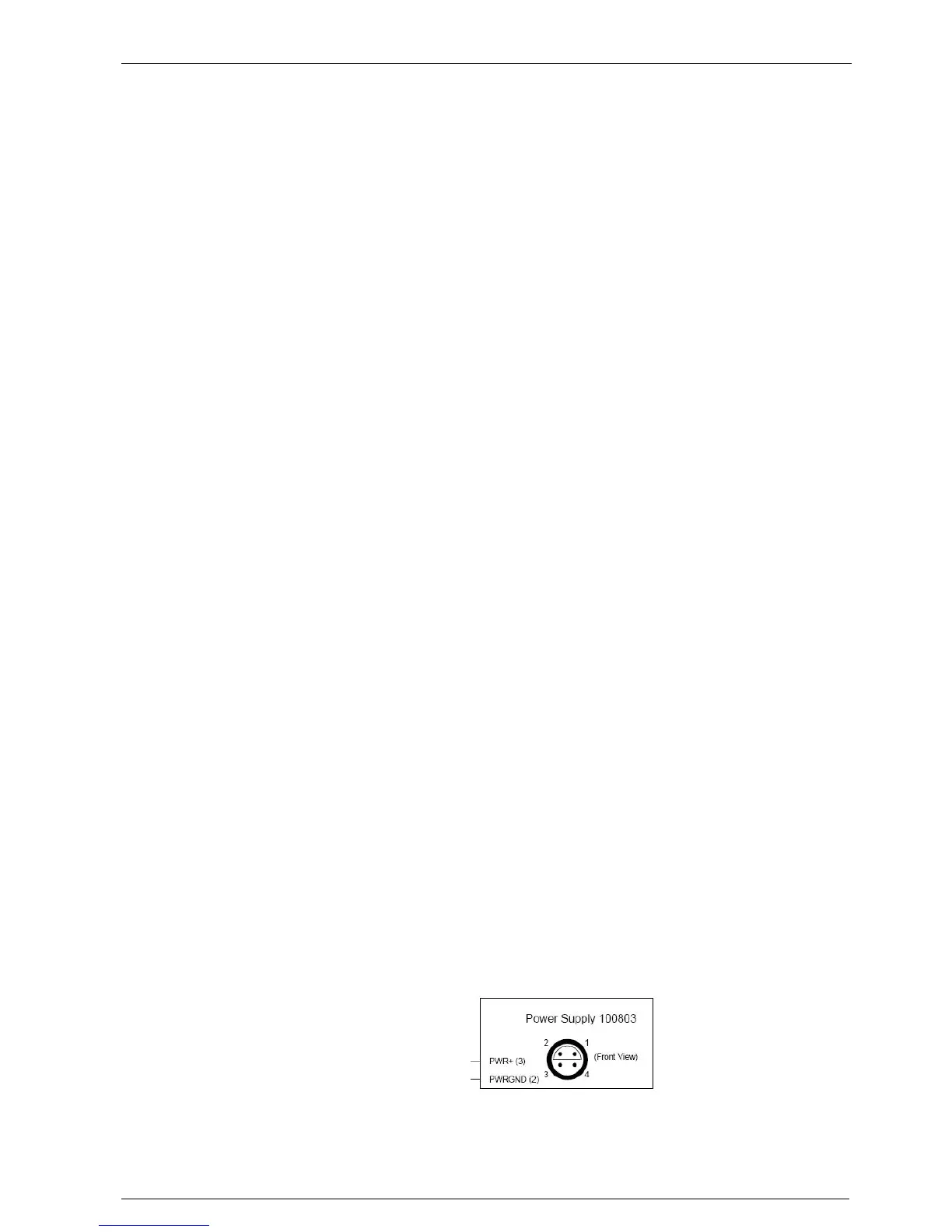

Pin connection
1 : nc
2 : Power GND
3 : Power + polarity
4 : nc
