EM Test dito
Instruction Manual V 2.30 31 / 36
7.
Delivery
7.1.
Basic
- dito ESD generator
- 1 discharge module included (e.g. 150 pF / 330 Ohm )
- Discharge tip for air discharge ( 8mm round )
- Discharge tip for contact discharge ( sharp  30)
- LiFePO4 battery
- Grounding cable (2 m)
- Battery charger
- Carrying case
- Manual
- Certificate of compliance
Identical accessory parts are delivered only once if several devices are orderes. The delivered packing list is in each case
valid for the delivery.
7.2.
Options
Discharge modules
DM 1 C= 150pF, R=330 according IEC 61000-4-2
DM 2 C= 150pF, R=2000 according ISO TR10605
DM 3 C= 330pF, R=2000 according ISO TR10605
DM 4 C= 100pF, R=1500 according MIL
DM X customized modules on request
C = 50pF to 500pF and R = 10 to 10k
MAD Mains Adapter to operate from AC power
alternative to battery operation 85 – 265 V; 50-60 Hz
power consumption < 30VA
PowerPack dito Spare battery (LiFePO
4
)
CU dito battery charger for PowerPack dito
esd.control Operating software with optical interface dito – computer
EAS 30 Earthing resistor 2x470k to test table, 1.40m
VCP Vertical coupling plane Set for indirect testing.
Optolink Fiber optic link and interface for dito and ESD 30N with USB A connector, length 3m

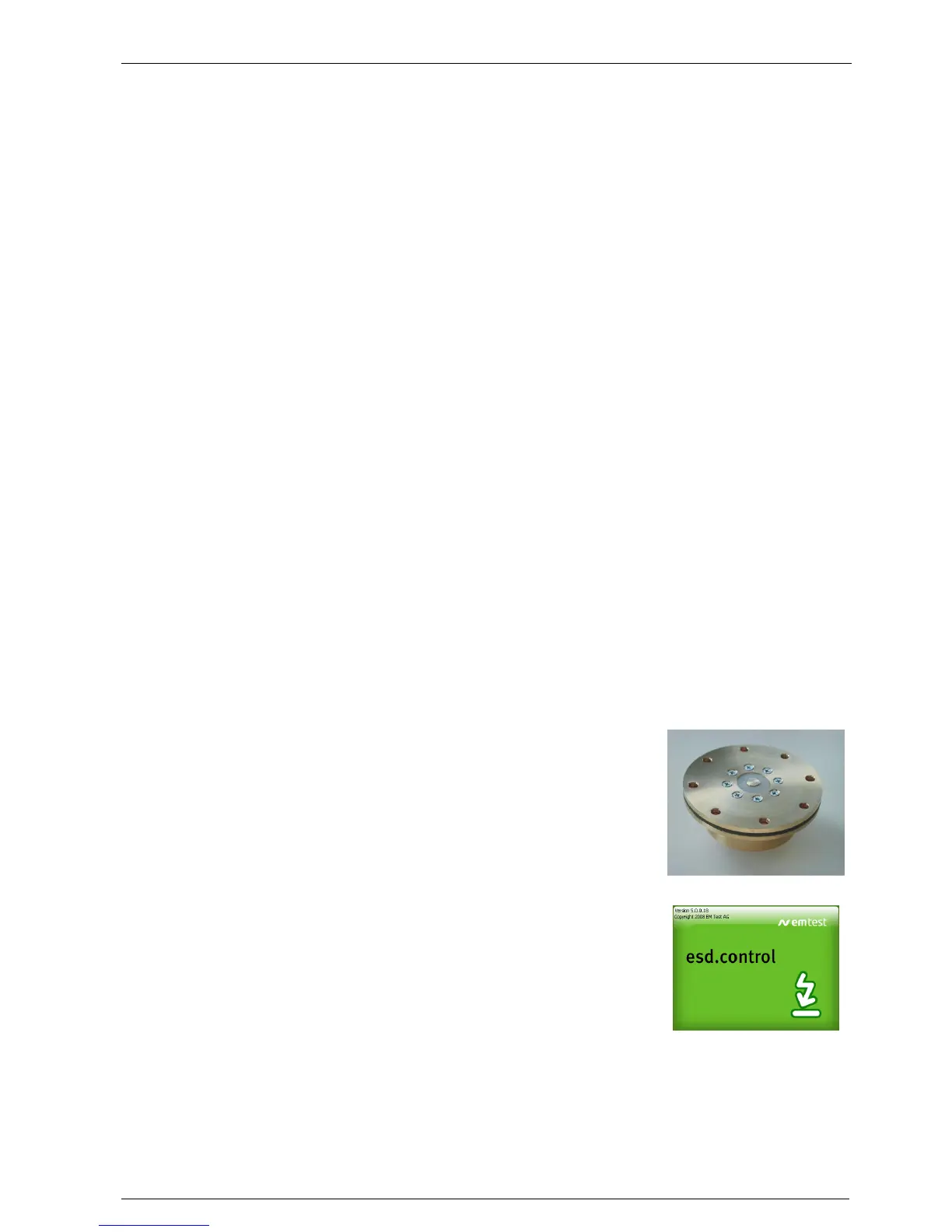

CTR 2 Target 2 Ohm for verification
CTR 2 target
 Operating software with optical interface dito – computer
- Test, analysis and documentation with windows
- License version for testing according the most industrial standards
- Report generator with export function to word-processing software
See manual esd.control software
