EM Test dito
Instruction Manual V 2.30 35 / 36
8.4.
Application

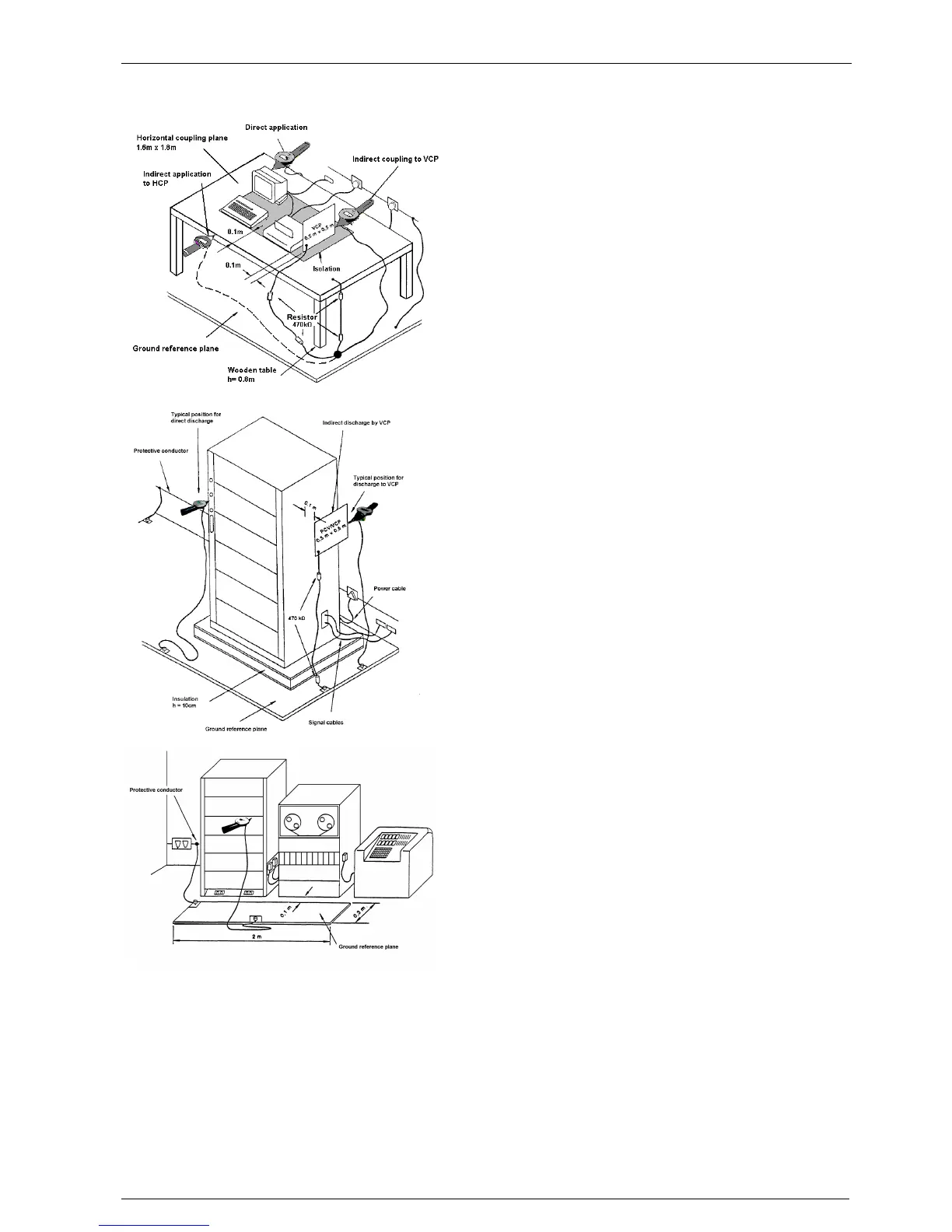

Example of test set-up for table-top equipment, laboratory tests.
Example of test set-up for floor standing equipment, laboratory
tests.
Example of test set-up for floor standing equipment, post installa-
tion tests.
Test points per IEC 61000-4-2
Direct discharge
- All accessible points of the surface of the DUT: Cables, housings, displays, keyboards, etc.
- The points which are accessible only for customer maintenance.
Indirect discharge
- VCP at each side of the DUT
- HCP 10 cm distance to the DUT
For additional information concerning the test setup and the test procedure please read the IEC 61000-4-2 care-
fully.
