Emaldo Power Core User Manual
• All system wiring must comply with national and local regulations.
• When wiring, please ensure that the polarity connection is correct to avoid any danger or
damage to the equipment.
• Please connect the communication cable as per the instructions.
ATS automatic change-over switch:
This switch has two inputs and one output.
AC (Emaldo Power Core) is connected to common power input; Mains supply is connected to
the standby power input. The output provides electric power for the KeepON load.
In the two inputs, when AC (Emaldo Power Core) fails and there is no input, the mains supply
will be automatically cut in to ensure power supply for the loads.
RCD earth leakage circuit breaker:
One is Grid(Emaldo Power Core), connected to the circuit breaker of mains supply. The other is
AC(Emaldo Power Core), connected to the KeepON load circuit breaker.

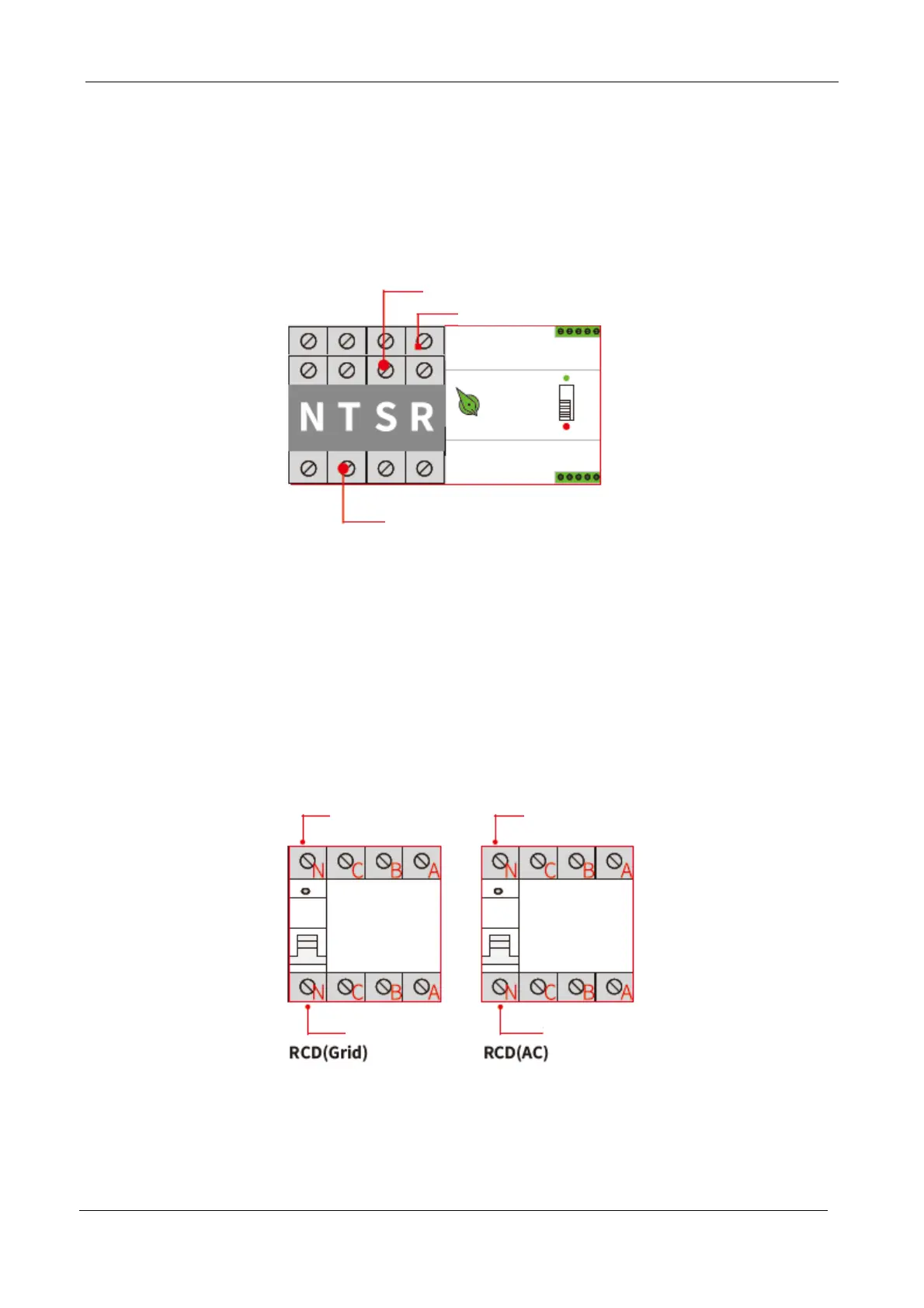

Common power supply/connected to AC (Emaldo
Power Core)
AT S o ut pu t/ t o KeepON load
Standby power supply/connected
to mains supply
Connected to primary
distribution box
To Next Page
