When the RCD circuit breaker is in the ON position, the circuit is connected.
When the RCD circuit breaker is in the OFF position, the circuit is disconnected.
Specifications of main devices of Additional Cabinet
Component
Specification
Electricity meter
Bidirectional, CT150/5
ATS
400Vac,40A
RCD
400Vac,40A,Type B
DC Isolator
6P16A600V

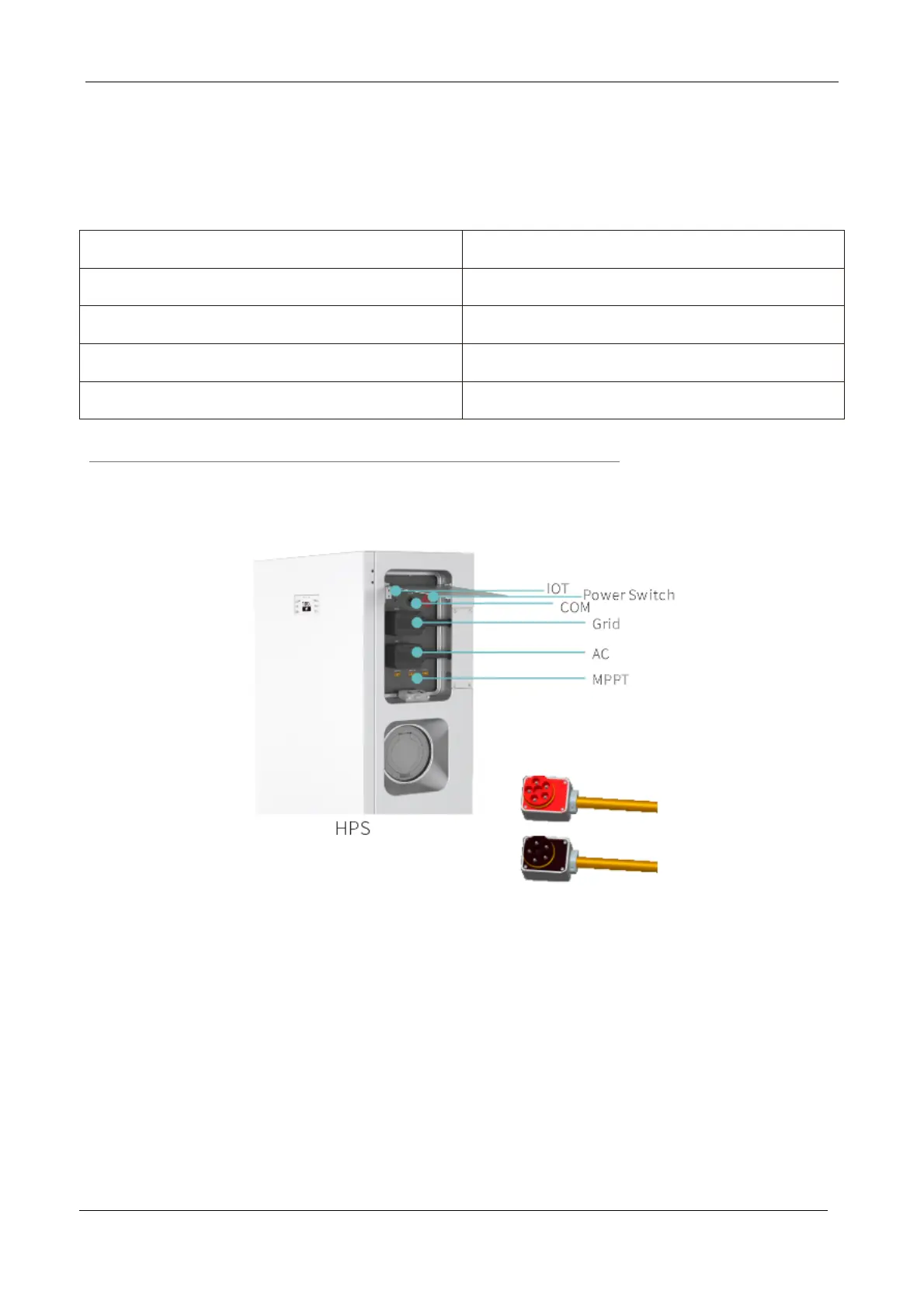

Wiring of leading-out cabin of cabinet
Step 1
Thread one end of the cable from the leading-out cabin through the outlet hole.
Step 2
Align the AC cable terminals and press them into the AC port of the energy storage system;
Align the Grid cable terminals and press them into the Grid port of the energy storage system.
Step 3
Grid input/output cable
(5*4mm2)
AC output cable
(5*4mm2)
