WEEE Disassembly Instructions for the
HD400 Disk Processor Enclosure
10.0.2 Locating Materials on a 2.5-inch Hard Disk Drive
The following identify 2.5-inch hard disk drive components.

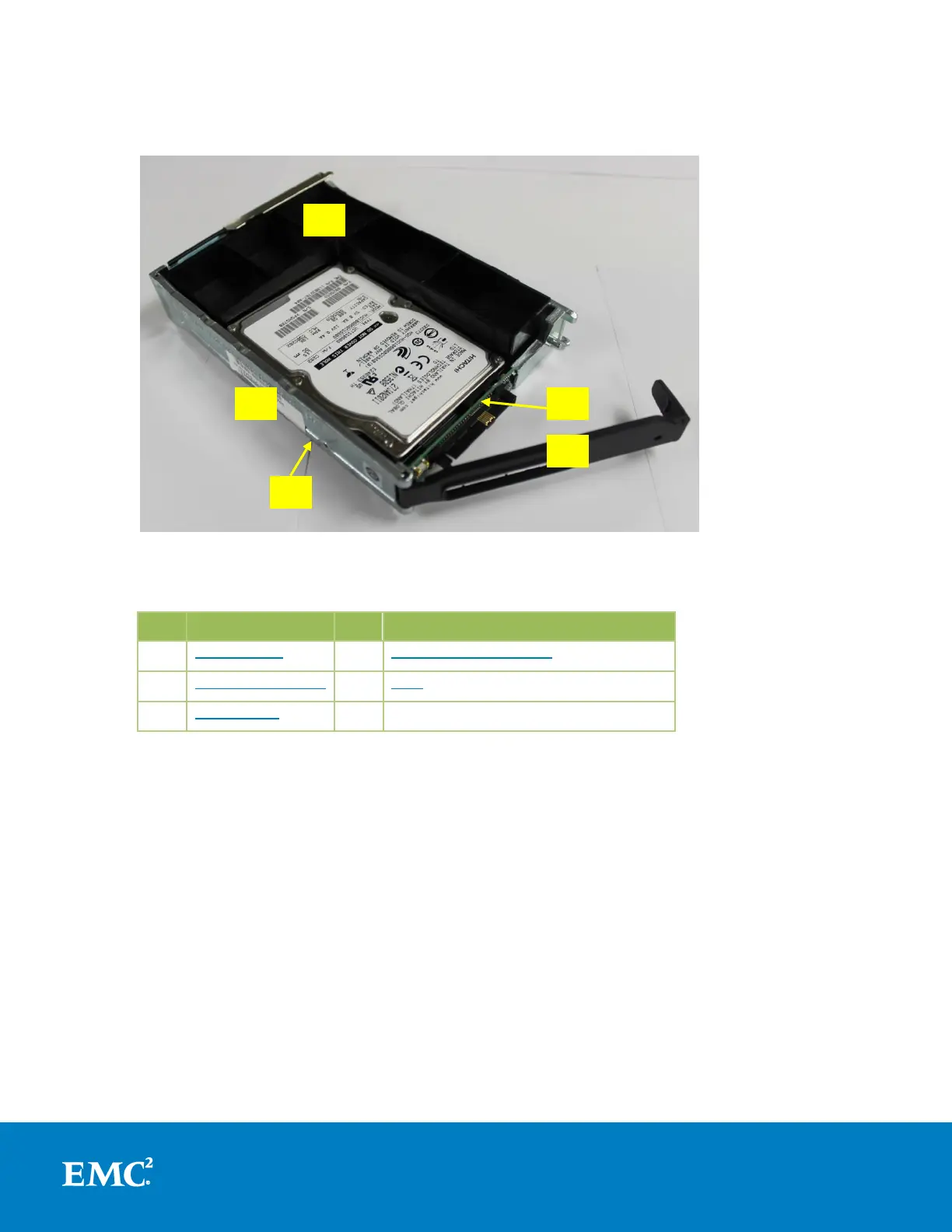

Figure 10. HD400 2.5-inch hard disk drive in a 3.5-inch disk carrier
Table 10 Components on the 2.5-inch Hard disk drive
Item
Component
Item
Component
42
Plastic Latch
45
Hard Disk Drive Carrier (ferrous)
43
SAS or SATA PCB
46
PCB (not visible, on the bottom of drive)
44
Plastic Filler
43
42
44
45
46
