31
WEEE Disassembly Instructions for the
HD400 Disk Processor Enclosure

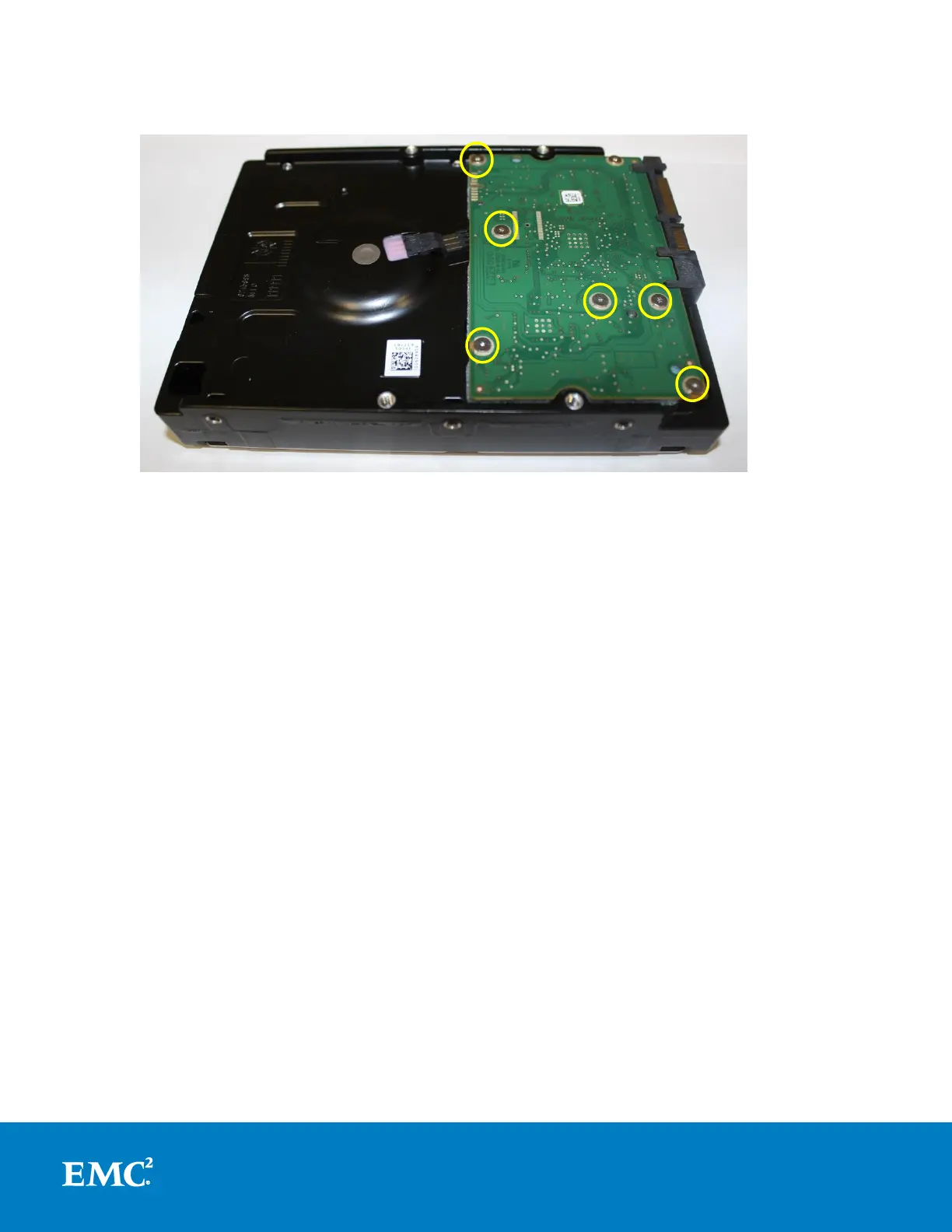

4. Use a T6 torque screwdriver to remove the seven screws (circled) that attach the PCB to the
drive, and lift off the PCB.
