WEEE Disassembly Instructions for the
HD400 Disk Processor Enclosure

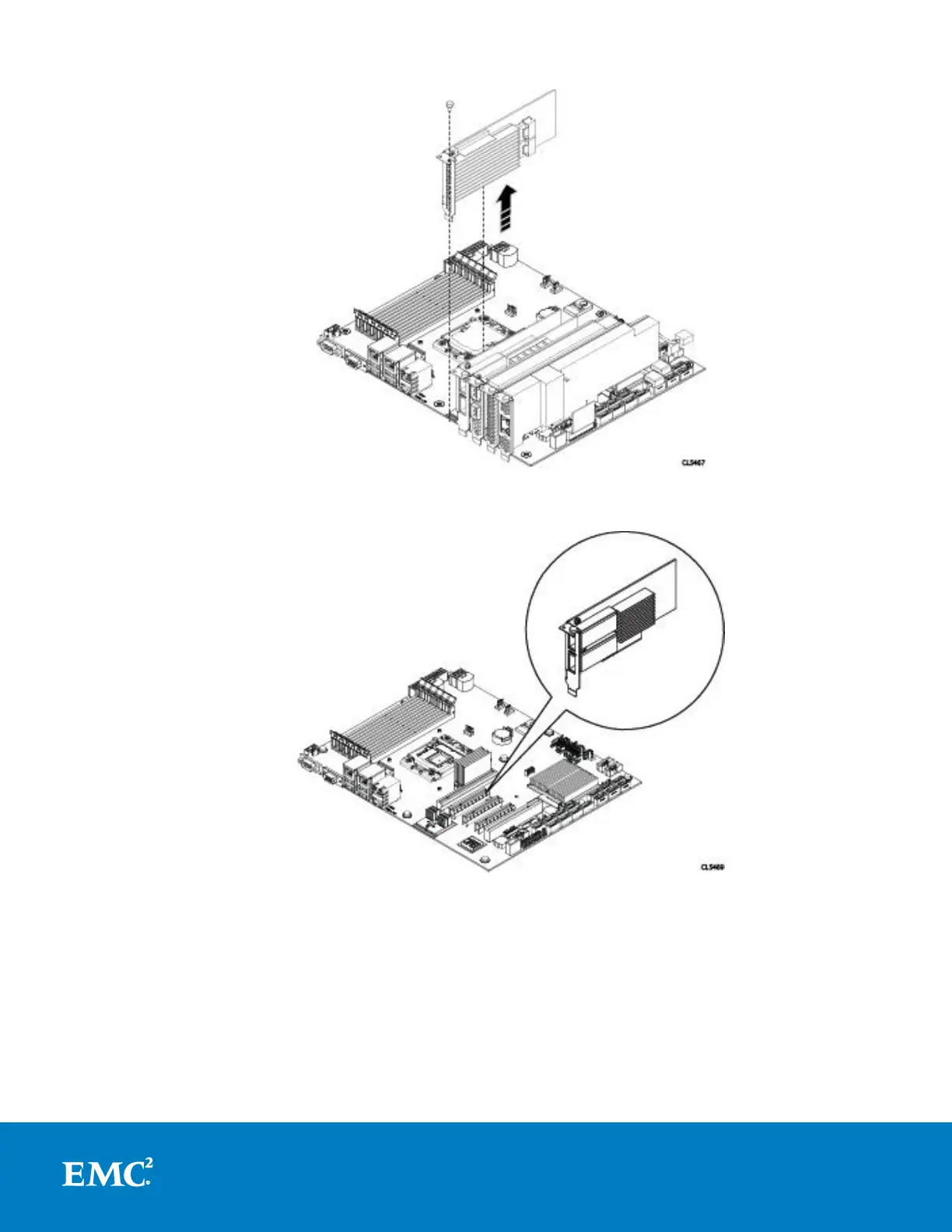

d. Remove the screw securing the SAS HBA board to the Suitcase and remove the SAS HBA board.
3. Remove the IB Card as follows:
a. The IB Card is the second card from the left when facing the Suitcase from the rear.
