WEEE Disassembly Instructions for the
HD400 Disk Processor Enclosure

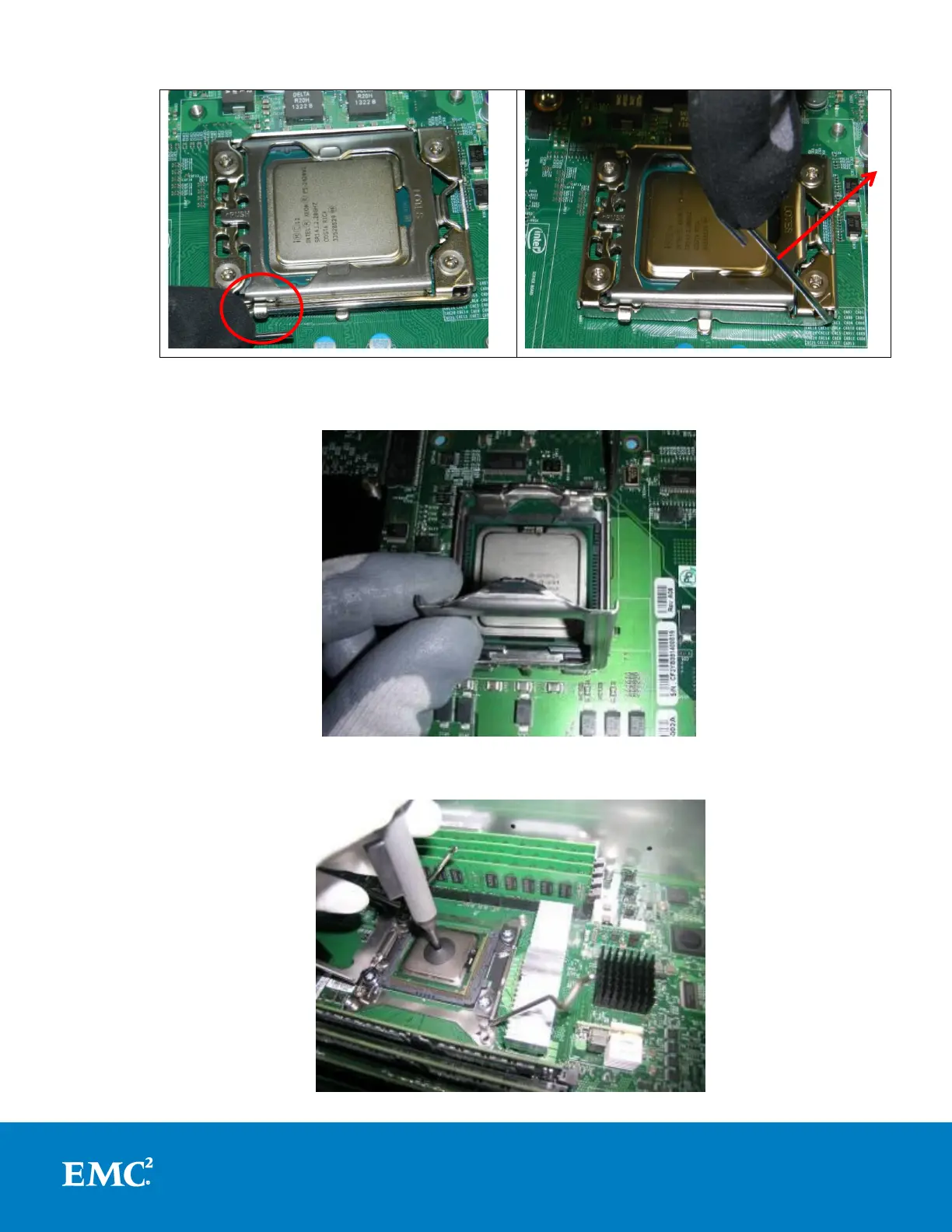

d. To remove CPU from CPU socket, first press latch downward toward motherboard to release the
latch. Then raise latch to release CPU socket cover.
e. With the latches released, open the CPU processor holder cover.
