3. Disconnect the transducer cable by removing the retaining clips and pulling the
cable plug straight out. Do not twist or rotate the plug. (See Figure 3-2).
4. Remove the transformer retainer using a 1 1/8” wrench and then disconnect and
remove the transformer module (Figure 3-3).
Note
T-21 and T-41 transducers use W-01 transformers and T-22 transducers use W-02
transformers.
5. Use a 1 1/4” (32 mm) wrench on the hex of the transducer holder and slowly
unscrew in a counterclockwise direction from the meter. If you hear gas leaking
from the threads, immediately stop and reinstall the holder as the meter has not
been fully drained and/or pressure has not been relieved from the meter. Correct
the issue before attempting to remove the holder.
The transducer holder has now been removed from the meter with the transducer
still installed inside the transducer holder.
6. Make a note of the removed transducer holder length which is used to update the
meter configuration during the Transducer Swap-out procedure in Daniel
MeterLink, after all of the transducer holders are replaced.

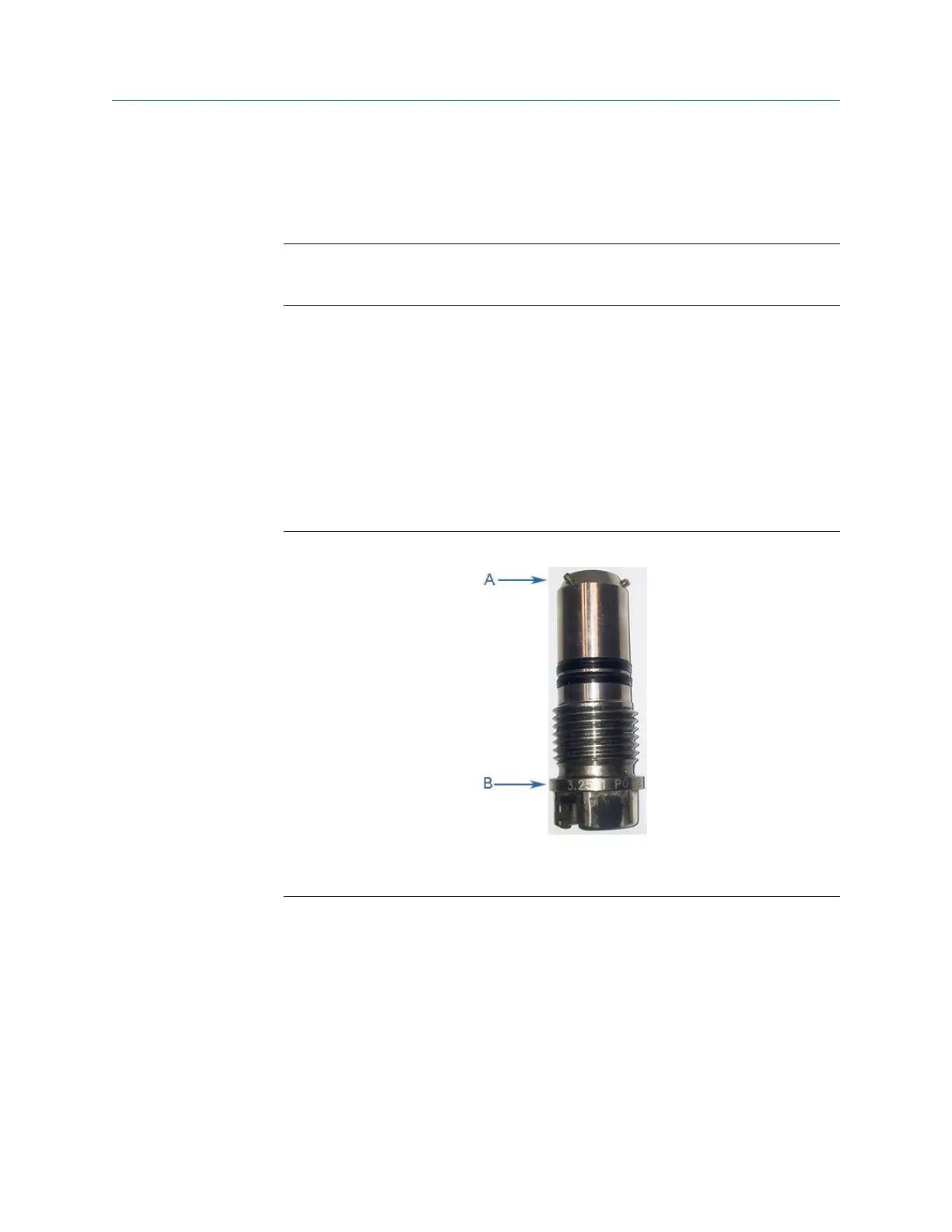

Figure 3-5: Transducer holder length and set screw identification
A. Transducer holder set screws
B. Transducer holder length identification
7. Loosen the three Allen setscrews with a 1/16” hex driver securing the transducer
assembly and stalk, if installed. Carefully remove the transducer by pulling it from
the T-Slot transducer holder (or stalk if installed) without rotating.
8. Clean the holder with a dry cloth.
Meter repairs Maintenance and Troubleshooting manual
August 2021 P/N 3-9000-791
54 Models 3415, 3416 and 3417 GUSM
