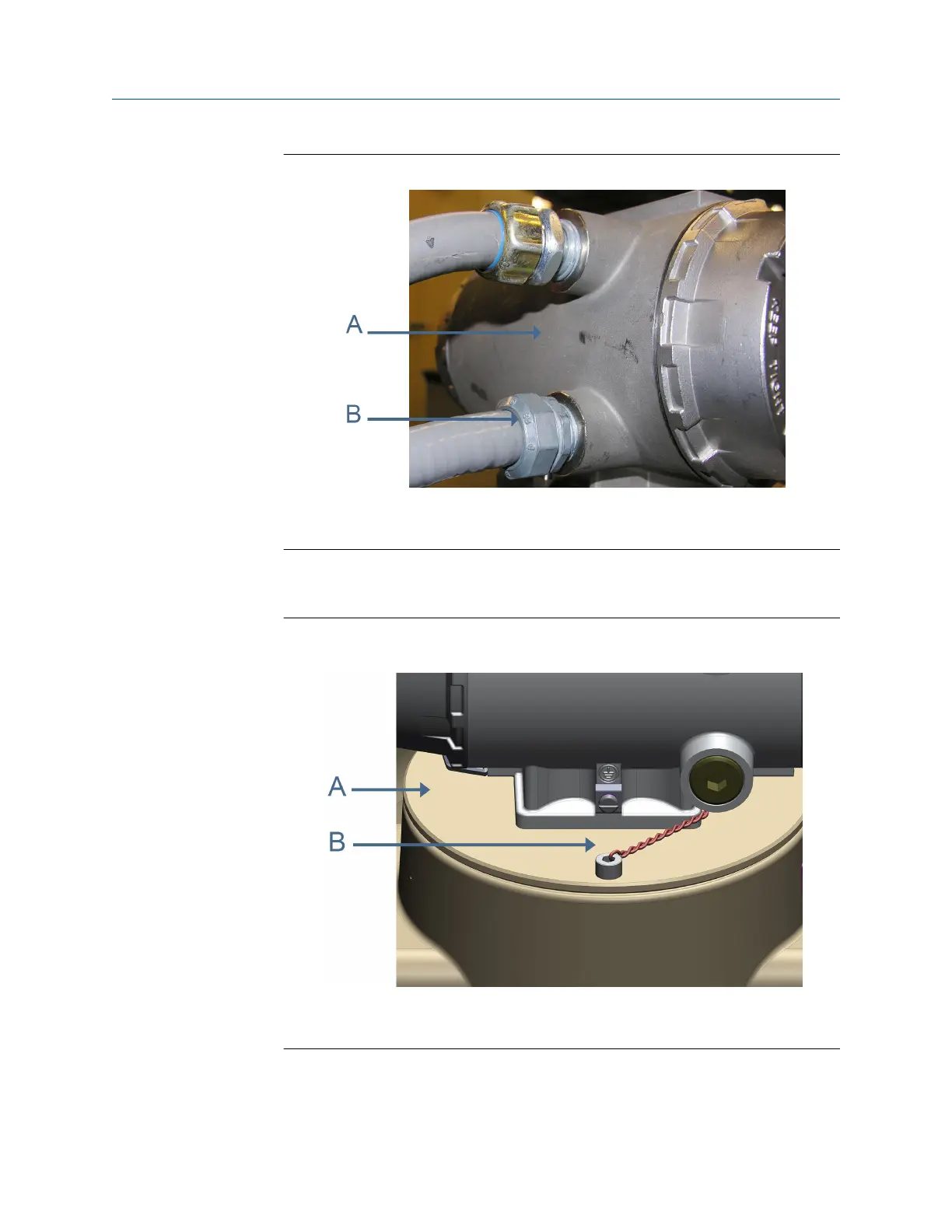

Figure 3-32: Conduit removal
A. Transmitter electronics enclosure
B. Conduit nuts
3. If the meter is equipped with security seals, remove the seals from the bolts on the
Base Enclosure.
Figure 3-33: Transmitter Electronics Enclosure and Base Enclosure security seal
removal
A. Transmitter electronics enclosure
B. Base enclosure bolts and security seals
4. Use a 6 mm Allen wrench and remove the two hex head bolts securing the
Transmitter Electronics Enclosure to the Base Enclosure.
Meter repairs Maintenance and Troubleshooting manual
June 2019 P/N 3-9000-769
98 Gas Ultrasonic Flow Meters
