Emerson Daniel 3414 - Transducer Timing Control; Figure 4-2 Models 3412 or 3411 Measurement Principle; Figure 4-3 Signal Analyzer - Update Rate, Stack Size, Filter and Emission Rate

18 Transducer timing control
Section 4: Flow measurement 3410 Series Gas Ultrasonic Meters Operations Manual
January 2018 3-9000-777 Rev E

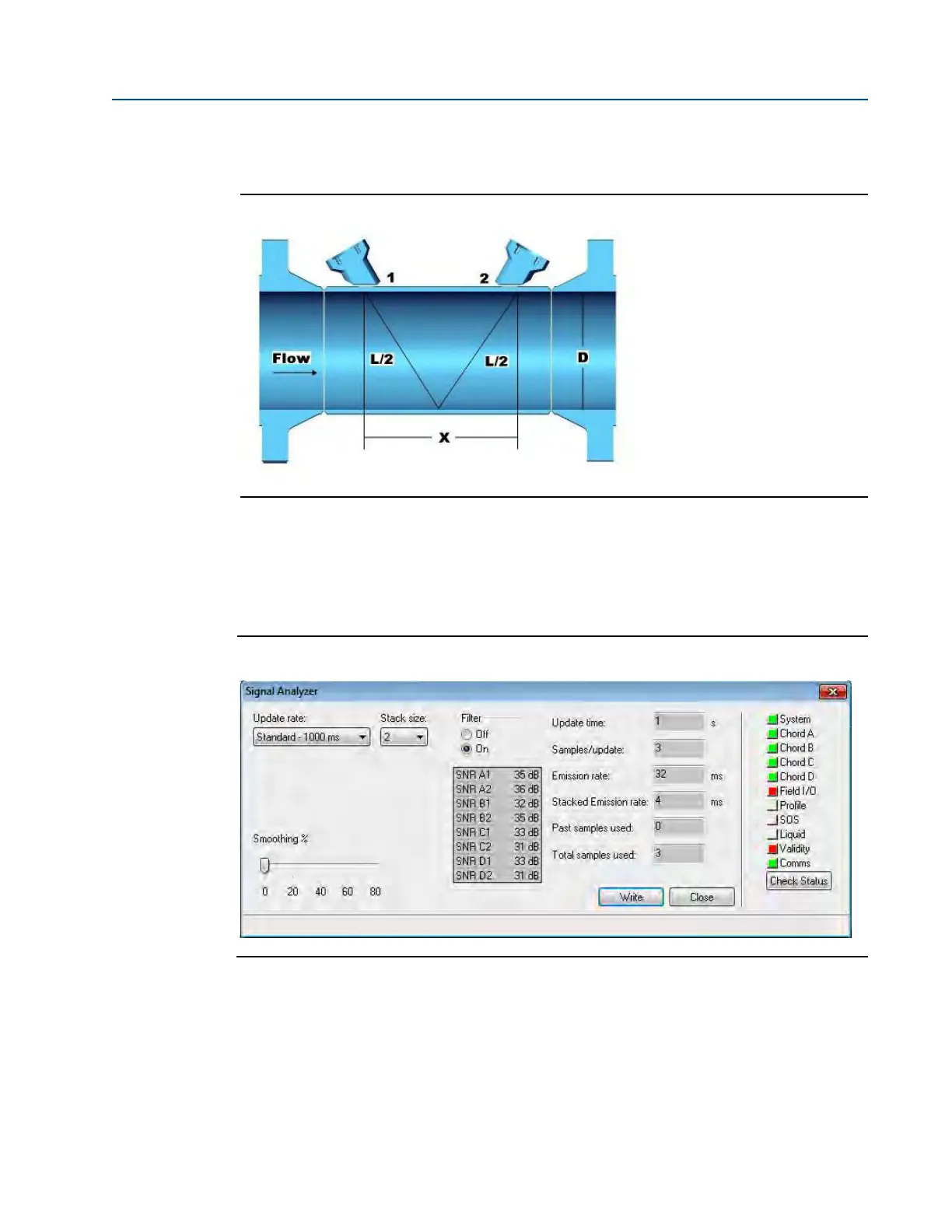

Figure 4-2 Models 3412 or 3411 measurement principle
4.1 Transducer timing control
The following terms are used in explaining the effects of transducer timing control, the
performance of batch data collection and calculation updates in Daniel 3410 Gas Ultrasonic
Flow Meters.
Figure 4-3 Signal Analyzer - update rate, stack size, filter and emission rate
