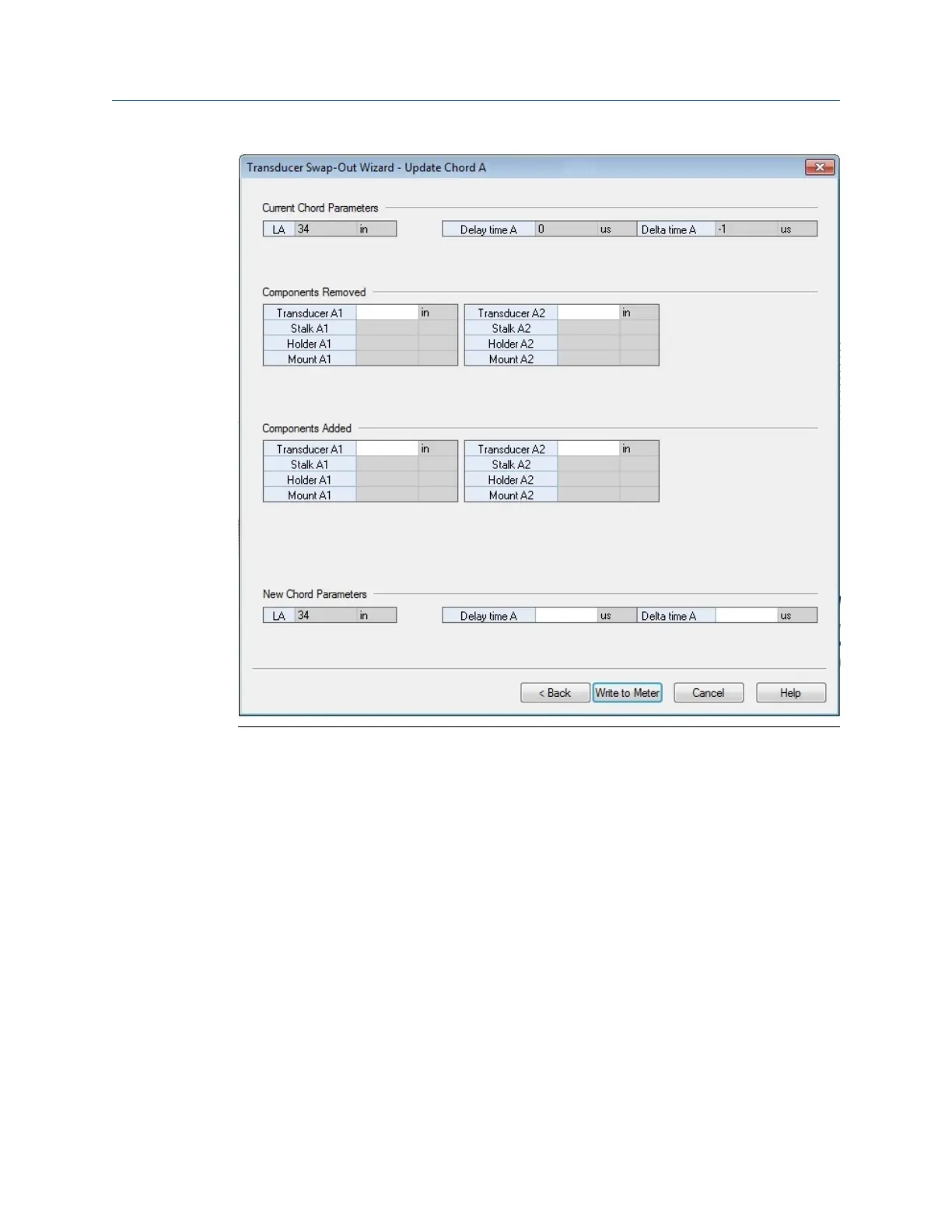

Chord “L” Dimension Calculation
The chord “L” dimension is calculated from the meter housing length as well as the
transducer pair lengths, mount lengths, holder lengths, and stalk lengths as shown in
Equation Chord "L" Dimension. The transducer lengths are etched on the transducers.
Likewise, the lengths of the mounts, stalk assemblies, and transducer holders are also
etched on the individual components. The length of the meter body is found on the
original calibration sheet supplied with the meter.
Meter repairs
Maintenance and Troubleshooting manual 23
