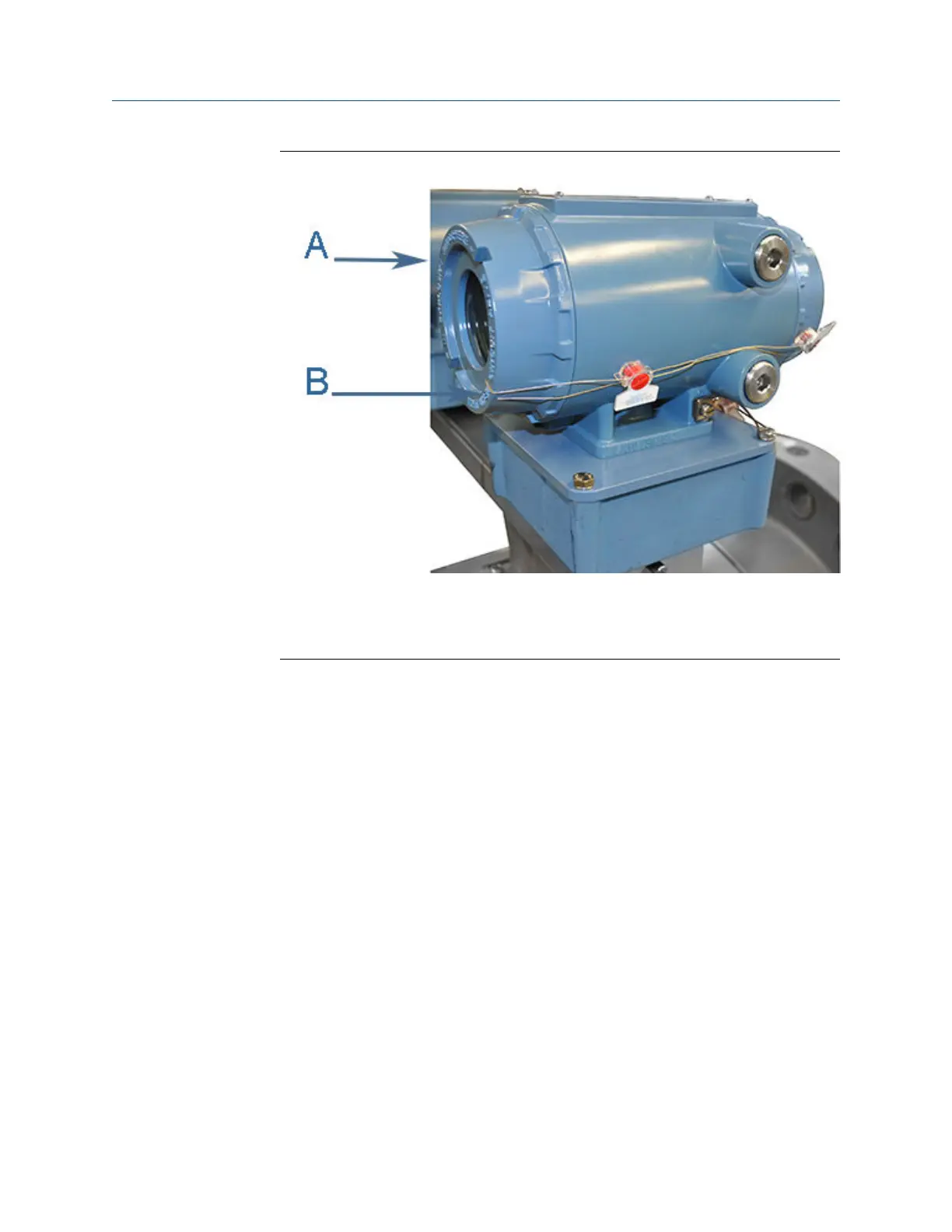

Transmitter electronic enclosure security sealsFigure 3-12:
A. Transmitter Electronics Enclosure end cap
B. Security wire seals
8. Adjust the security wire, removing all slack and thread into the lead seal.
9. Cut wire ends to remove excess wire.
10. If replacing other electronics or the fuse, continue with Section 3.5.2, Section 3.5.3
and Section 3.6 before replacing the end caps and sealing the enclosure.
11. If you encounter problems replacing the electronics, see the Flow Lifecycle Services
contact information on the back cover of this manual for Daniel products.
12. This completes the CPU Module or I/O Module replacement procedure.
3.5.2 Fuse replacement
1. Remove power to the meter.
2. Disconnect the Transmitter Electronics Enclosure security seals (see
Transmitter Electronics Enclosure security seals), loosen the end cap security latch
(requires a 3 mm Allen wrench) on the terminal end of the enclosure (see Figure 3-9)
and remove the end cap.
3. Use a 1/4 inch standard flat head screw driver and remove the Fuse Holder cap by
rotating cap counter clockwise. (See Figure 3-10.)
4. Insert the replacement fuse (Littlefuse #218002.HXP) into the Fuse Holder.
5. Install the fuse cap into the holder and push until it is flush with the holder.
Meter repairs
Maintenance and Troubleshooting manual 35
