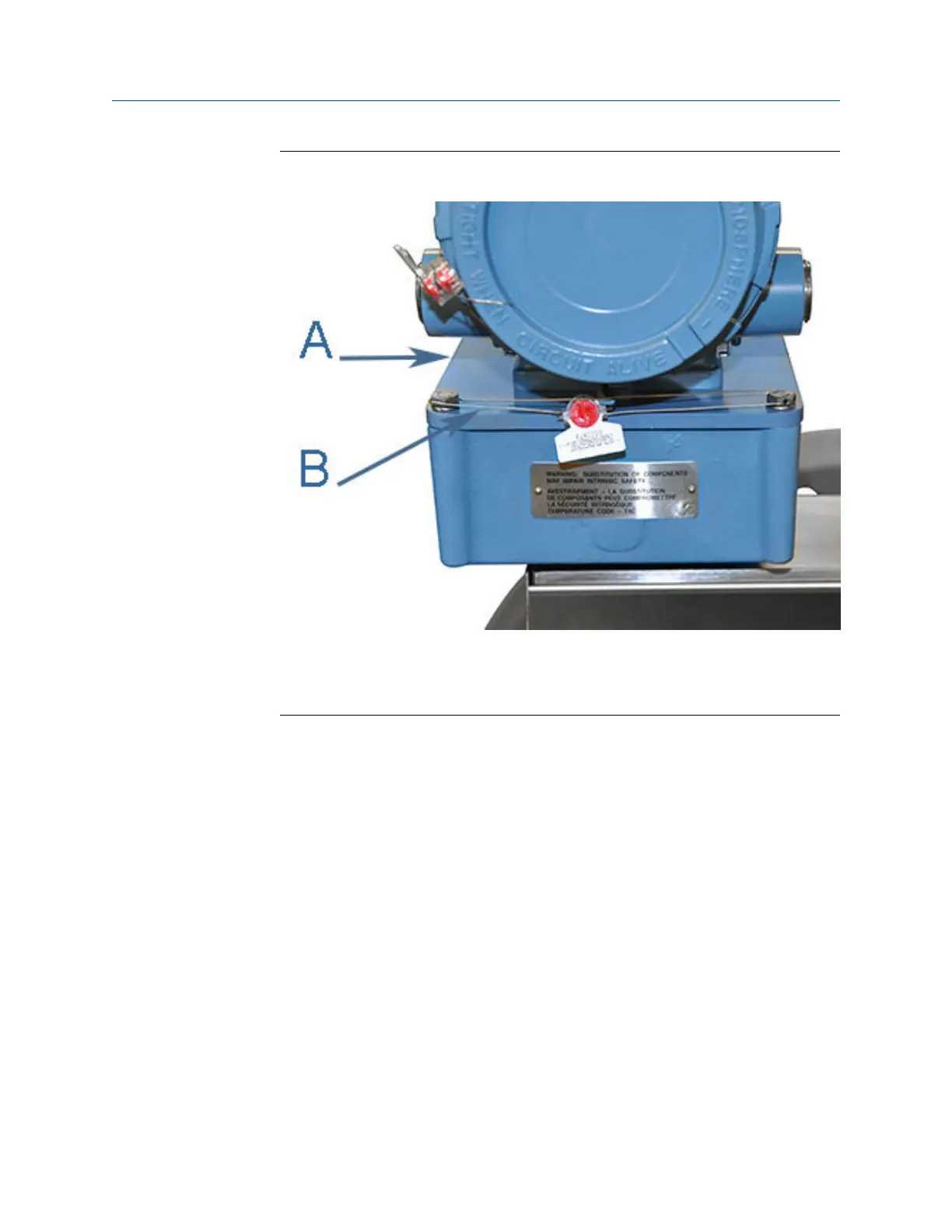

Transmitter Electronics Enclosure and Base Enclosure security seal
removal
Figure 3-18:
A. Transmitter electronics enclosure
B. Base enclosure bolts and security seals
4. Use a 6 mm Allen wrench and remove the four hex head bolts securing the
Transmitter Electronics Enclosure to the Base Enclosure.
Meter repairs
Maintenance and Troubleshooting manual 45
