Emerson EL-O-Matic F Series User Manual

Parts List and Spare Parts

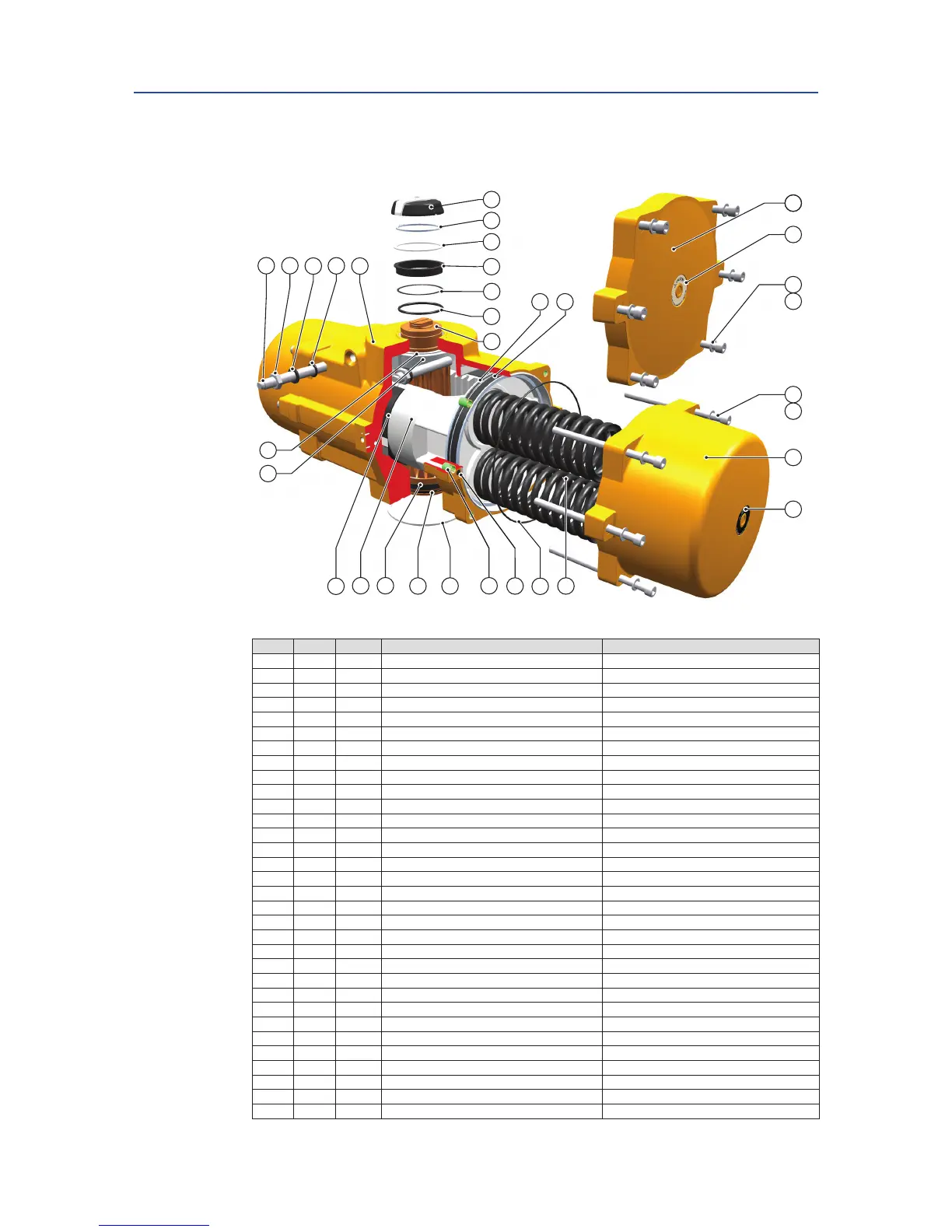

11.4 Actuator sizes F4000
133
7
12
23
27
29
26
22
3
17
2
8
6
32
16
30
18
15
21
31
13
5
10
14
9
10
11
4
20
25
24
19
Table 19. Parts List
Pos. Qty. Notes Description Material
1 1 House Cast Aluminium alloy
2 2 1 B-port seal Silicon rubber
3 1 Center ring Stainless Steel AISI 304
4 12 Thread insert Steel
5 2 End cap SR Cast Aluminium alloy
6 2 End cap DA Cast Aluminium alloy
7 Max. 6 Springs Spring steel
8 12 End cap screw DA Stainless Steel
9 12 End cap screw SR Stainless Steel
10 12 End cap screw washer Stainless Steel
11 2 1 O-ring end cap Nitrile rubber
12 2 Warning sticker DA Polyester
13 2 Warning sticker SR Polyester
14 2 Piston assembly Cast Aluminium alloy
15 2 1 Bearing piston PTFE 25% carbon-lled
16 2 1 O-ring piston Nitrile rubber
17 2 1 Bearing strip piston rack POM
18 1 Pinion High grade aluminium
19 2 1 Bearing pinion top POM
20 1 1 Bearing pinion bottom POM
21 1 1 O-ring pinion top Nitrile rubber
22 1 1 O-ring pinion bottom Nitrile rubber
23 1 1 Thrust washer pinion POM, black UV stabilized
24 1 Cam stroke adjustment Steel
25 1 1 Cam thrust washer POM, black UV stabilized
26 1 Indicator assembly ABS + stainless steel screw
27 1 1 Circlip Spring steel
29 1 1 Backup ring POM
30 2 Limit stop screw Stainless steel
31 2 Limit stop nut Stainless steel
32 2 1 Limit stop washer PA66
33 2 1 O-ring limit stop Nitrile rubber
Notes:
1 Included in Service Kit.
52
September 2017
Installation, Operation and Maintenance Manual
DOC.IOM.EF.EN Rev. 7
