28 Installation
2.9 Terminal Plate
The terminal plate includes the various terminal blocks (TB) for power and I/O
connections.
Note
AI/AO and DI connections are disabled in the FB1100 Flow Computer.

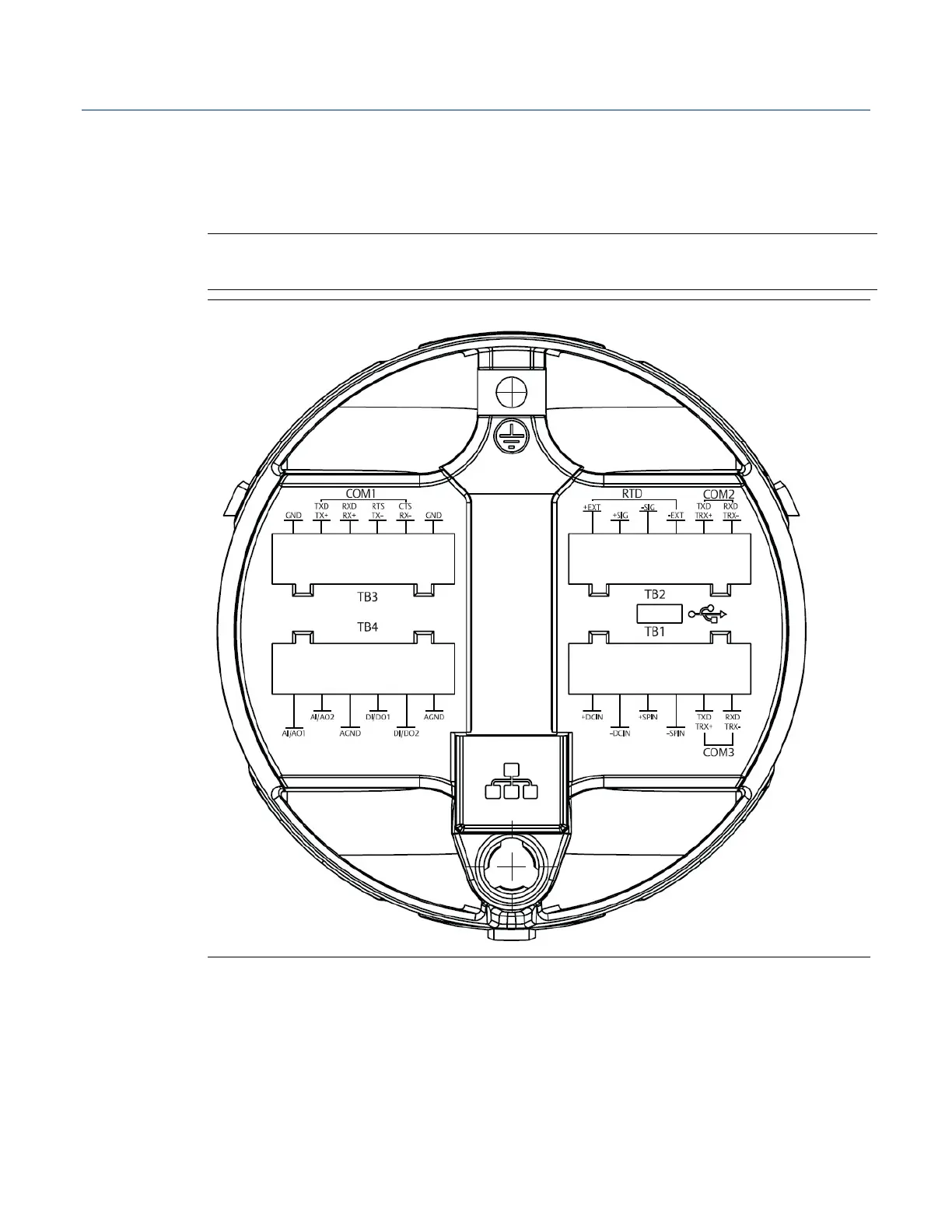

Figure 2-17. Terminal Plate
2.10 Power Modes
To keep power consumption to a minimum, especially for remote sites, the flow computer
can run in two different power modes: Low Power Mode (4 or 8 MHz CPU clock speed) or
Standard Power Mode (60 MHz CPU clock speed).
