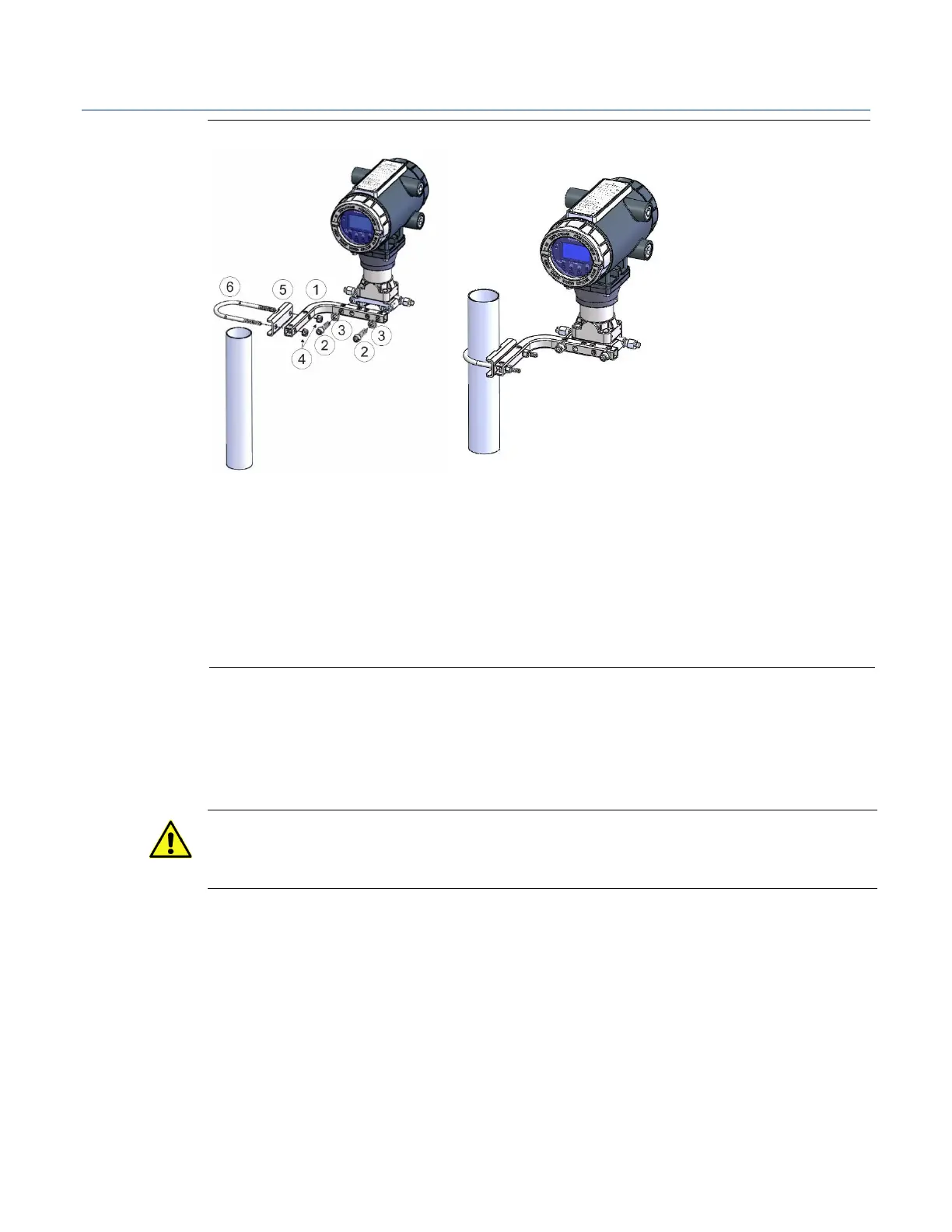

Figure 2-14. Coplanar Mounting Kit
1
Tubular L-shaped bracket
2
3/8-16 x 1 ½ in socket head wire lockable screw (2) – Apply Killark
®
LUBG-6 Thread
Lubricant to threads. Torque screws to 30 in-lbs (3.4 N m)
3
Split 3/8 lock washer (2)
4
5/16-18 keps nut (2). Apply Loctite 222 Low Strength Purple Threadlocker to nuts.
Torque nuts to 30 in-lbs (3.4 N m)
5
U-bolt bracket
6
2-inch diameter pipe U-bolt
2.7.5 Rotating the Housing
To improve accessibility to the HMI module or to ease wiring, you can optionally rotate
the housing.
Important
Never rotate the housing more than 180 degrees from its original (as-shipped) position.
Over-rotation can break electronics within the unit.
