FB3000 RTU Instruction Manual
D301851X012
November 2023
Service and Troubleshooting 87
Backup data before you begin because replacing the CPU module may result in loss of
configuration data, alarms, events, and history.
1. Backup data in the CPU (See Section 5.9 and Section 5.10).
2. Remove power from the FB3000 (See Chapter 4).
3. Depress the orange tabs at the top and bottom of the CPU module to release the
module and slide it straight out of the slot.

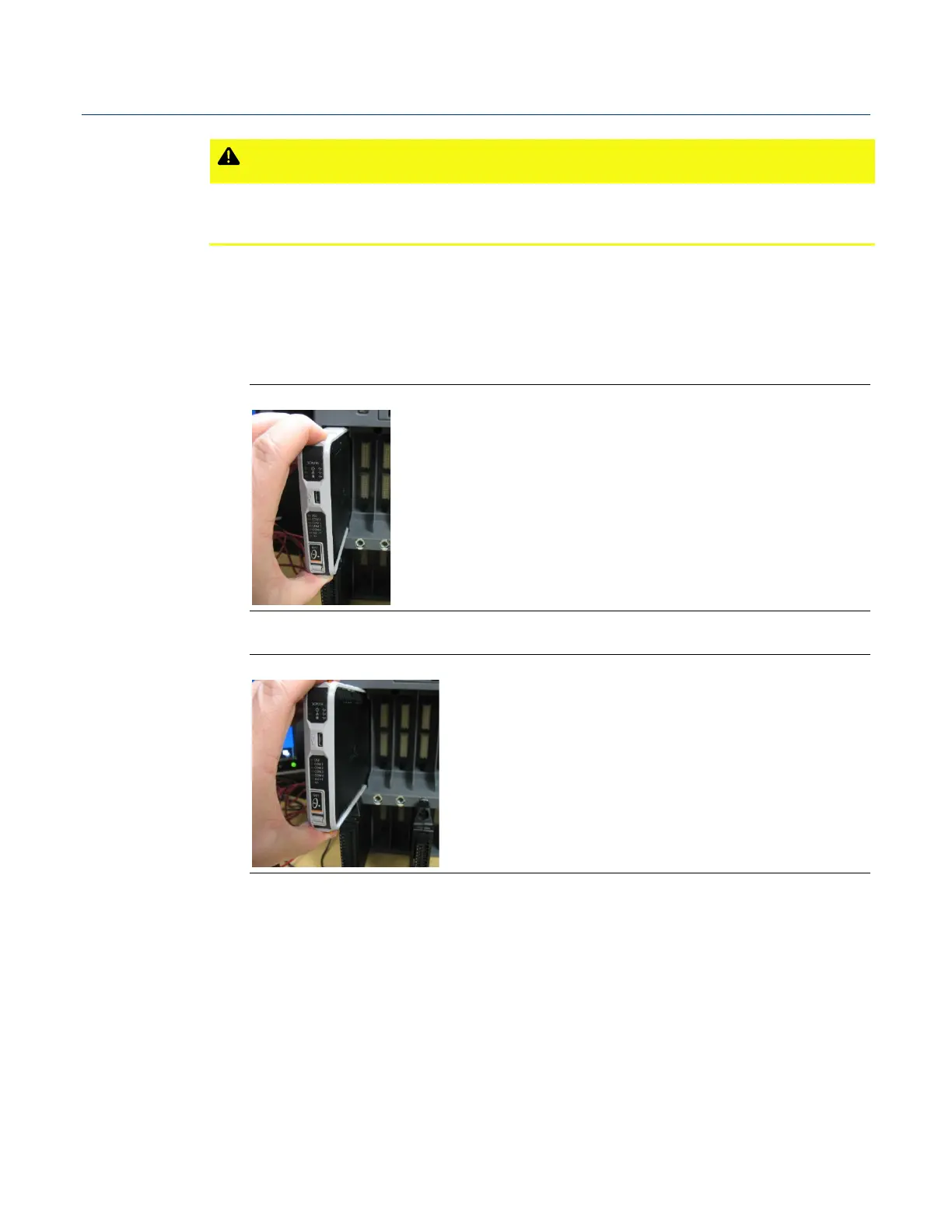

Figure 5-6. Removing the CPU Logic Module
4. Press the new replacement module into slot 1 until it is properly seated.
Figure 5-7. Replacing the CPU Logic Module
5. Restore power.
6. Restore the configuration backed up from step 1.
