FB3000 RTU Instruction Manual
D301851X012
November 2023
88 Service and Troubleshooting
5.6 Removing/Replacing an I/O or
Communications Logic Module
EXPLOSION HAZARD - MAY CAUSE DEATH
Ensure the RTU is in a non-hazardous area. Never open the enclosure in a hazardous
area. Performing this operation in a hazardous area could result in an explosion.
DANGER TO PERSONNEL AND EQUIPMENT
During the removal/replacement, switch the I/O or communications this module
controls over to whatever manual/backup system you have.
1. Squeeze the orange tabs at the top and bottom of the module to release the module
and slide it straight out of the slot.

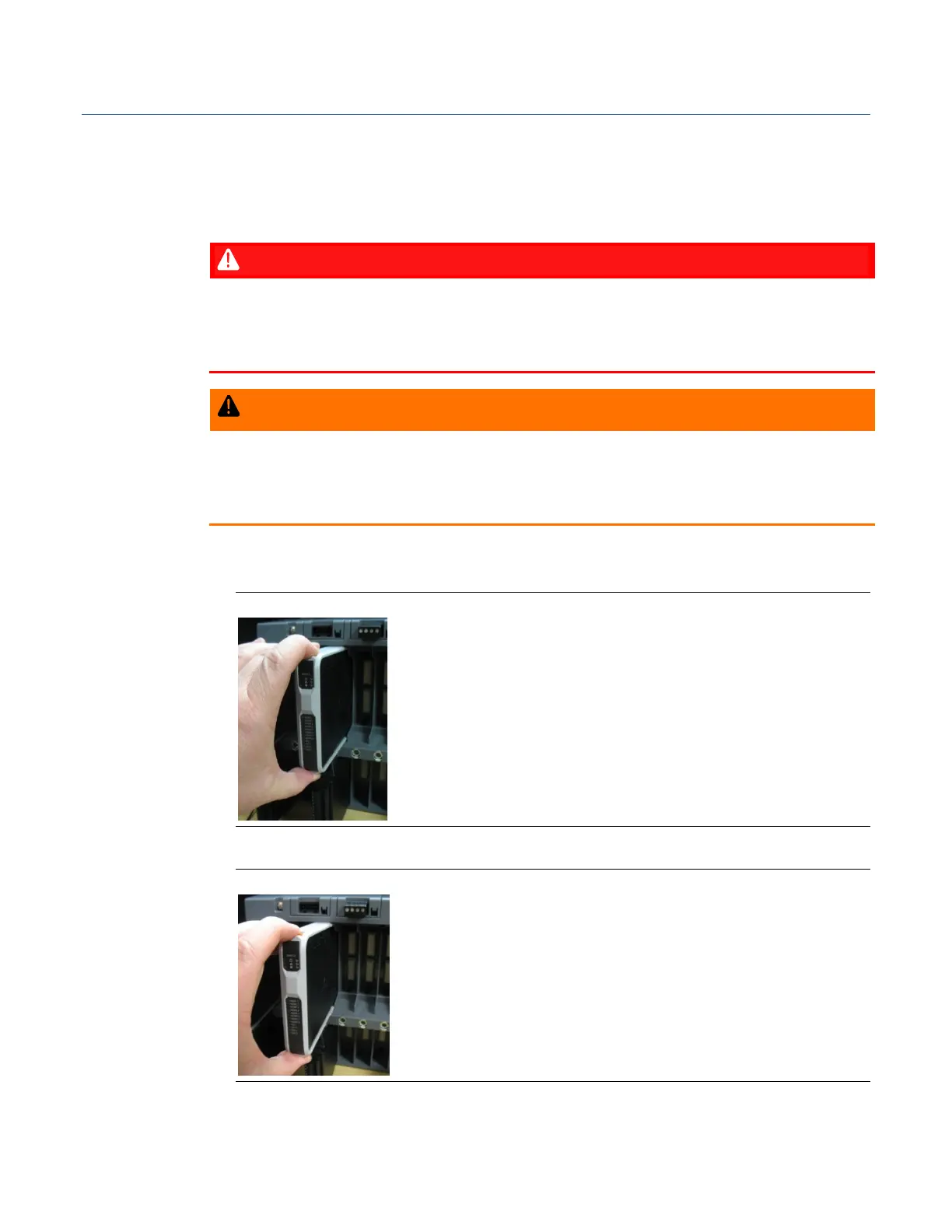

Figure 5-8. Removing an I/O Logic Module
2. Press the new replacement module into the slot until it is properly seated.
Figure 5-9. Replacing a Logic Module
