FB3000 RTU Instruction Manual
D301851X012
November 2023
Service and Troubleshooting 91

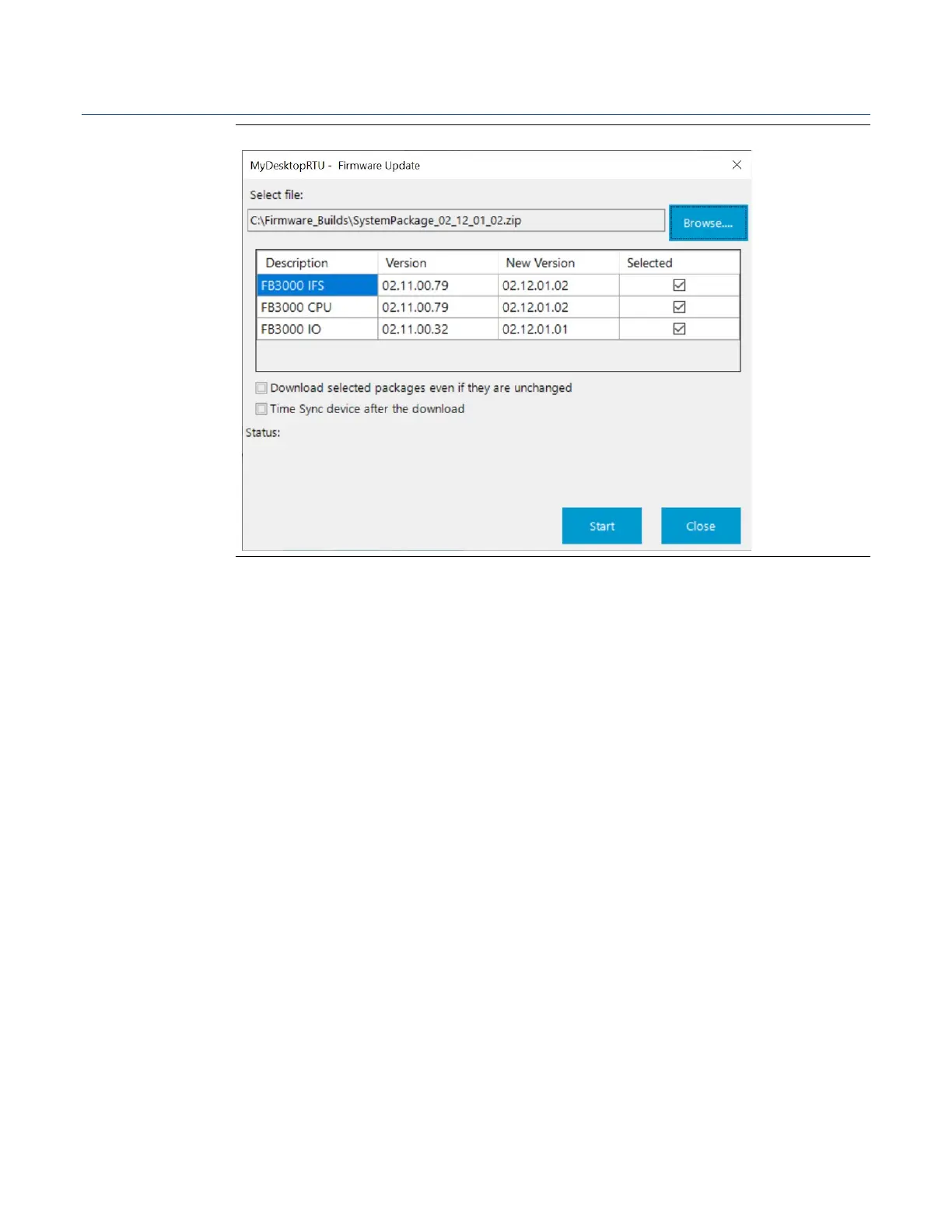

Figure 5-12. Firmware Update dialog box
8. Select the checkbox in the Selected column to choose the firmware. If you are
downloading the same version that is already installed on the device, select
Download selected packages even if they are unchanged. If you want to update
the RTU’s clock so that it agrees with your PC clock, click Time Sync device after the
download.
9. Click Start to begin the firmware download. Allow the download to proceed to
completion. If you choose to cancel the firmware download before it completes, the
system restores the current version already in the device. The firmware upgrade
results in a warm start of the running application.
