FB3000 RTU Instruction Manual
D301851X012
November 2023
Installation 13
Squeeze hard to remove connector covers on the two mating chassis. You may need to
use both hands.

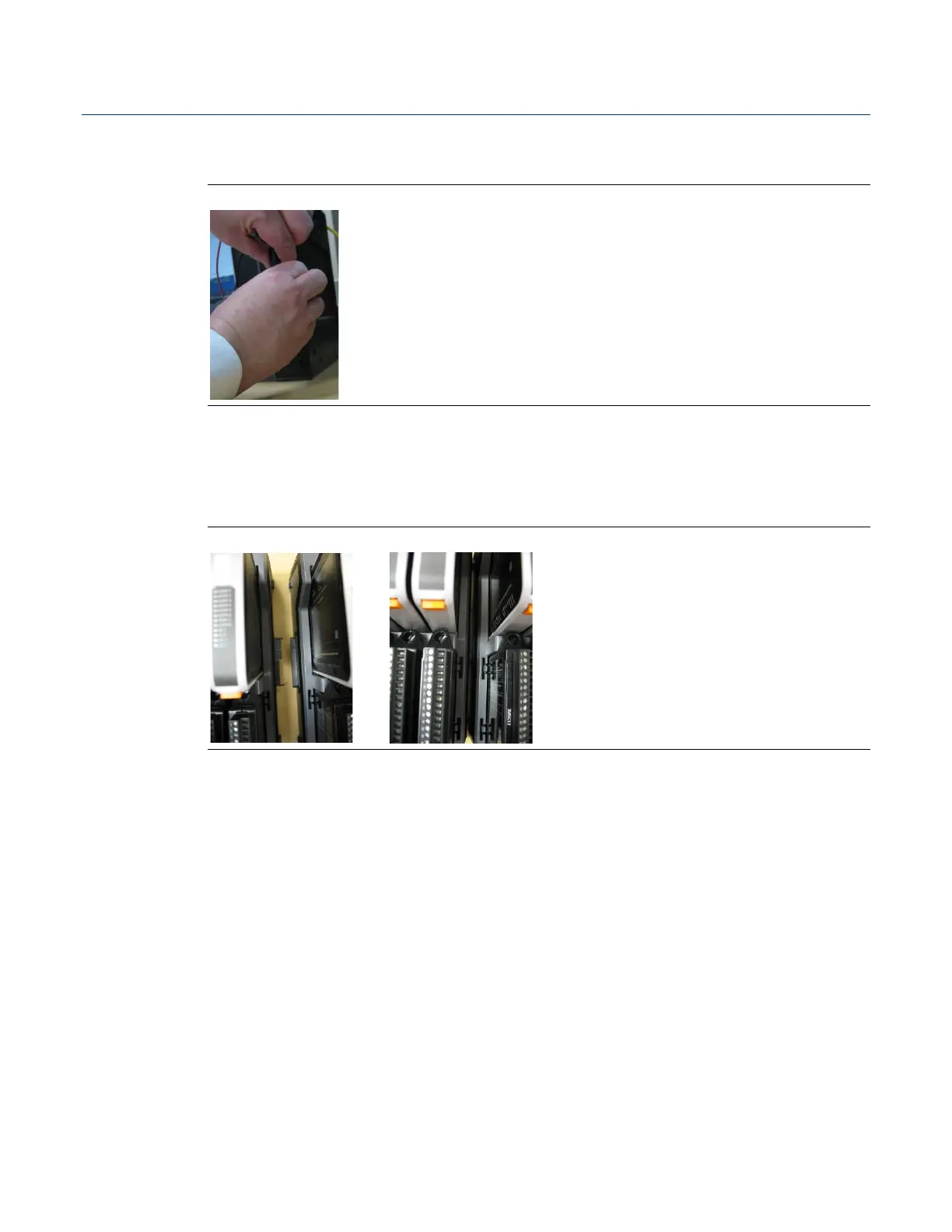

Figure 2-3. Removing Chassis Connector Cover
Press the two chassis together. If mounting on a DIN rail, slide both chassis onto the DIN
rail first to ensure proper alignment and place clamps/brackets at both ends of assembly
on DIN rail to ensure side connectors between chassis remain fully engaged. (See Section
2.6).
Figure 2-4. Pressing Chassis Together
