FB3000 RTU I
nstruction M
anual
D301851X012
November
2023
I/O Configuration and Wiring
63
Figure 3
-13

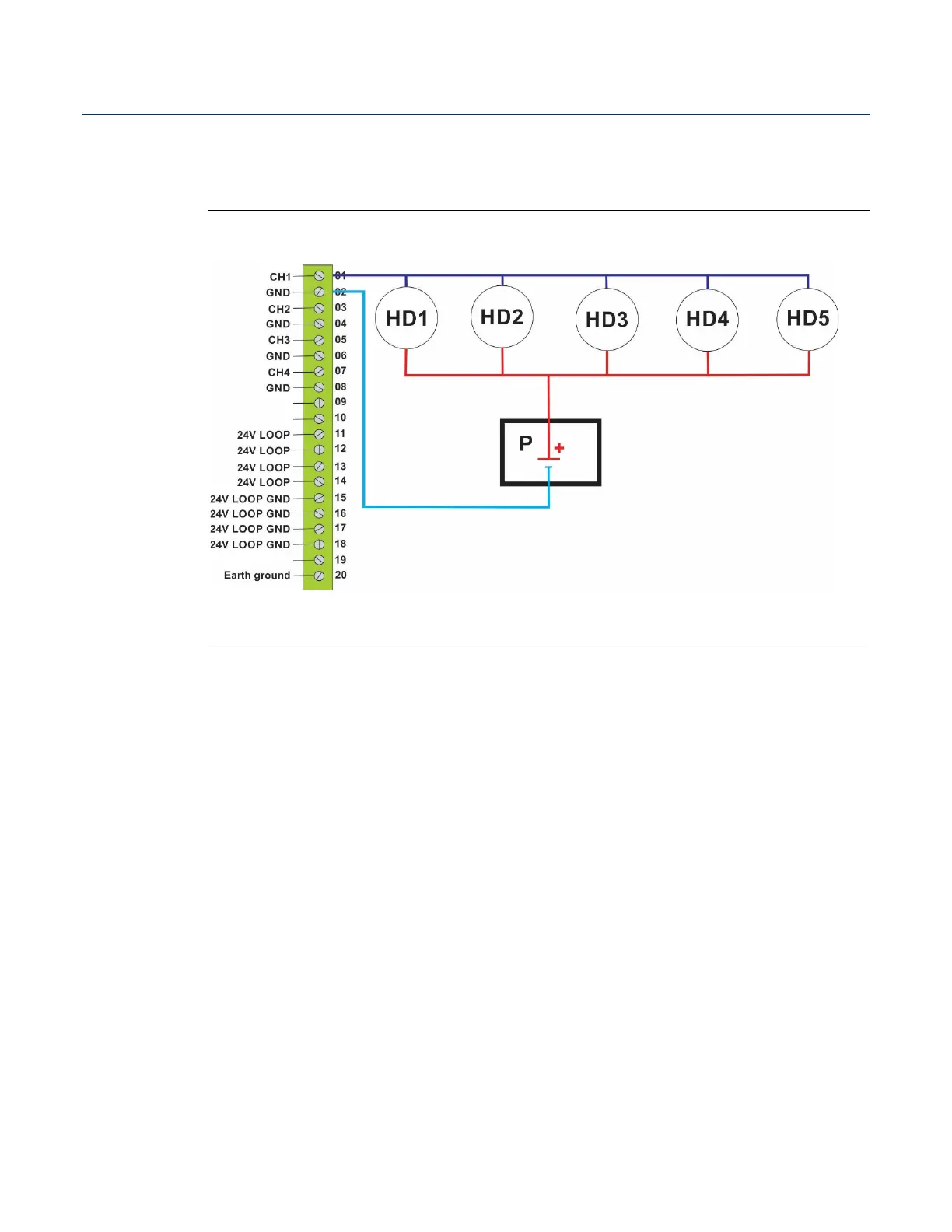

shows how to wire a HART channel for multi
-
drop mode with
power from an
external supply. Multi
-
drop mode only supports inputs, you cannot have
multi
-
drop
outputs.
Figure
3-
13
. HAR
T Wiring
–
Multi
-
Drop Mode on Chan
nel 1
–
External Supply
HD
HART Device
P
External 24V Power Supply
76
78
Table of Contents
Section 1
11
Default Chapter
11
Table of Contents
11
Hart
12
I/O
12
Chapter 1. Introduction
15
Safety Labels
16
Features
16
FB3000 RTU Chassis
17
Central Processing Unit (CPU)
18
Memory
18
Example - 12 Channel Mixed I/O Module (3MIX12/3MSG12)
18
Power
19
Communications
19
Software Tools
20
Rohs Compliance
21
Secure Gateway
21
Chapter 2. Installation
23
Hazardous Locations
23
Required Tools
23
Site Considerations
24
Connecting Extension Chassis
26
General Wiring Guidelines
28
Grounding
29
Chassis Ground Lug
29
Internal System Bus Ground
30
Isolated Ground on 3MIX12/3MSG12 Module
30
24V Loop Ground on 3MIX12/3MSG12 Module
31
Mounting the Chassis
31
Panel or Wall Mounting the Chassis
33
Removing Battery Saver Tabs
36
Connecting Power
37
Connecting External Power
37
Power Planning
38
Power Usage
38
Extended Backplane Supported Configurations
39
Power Fail and Shutdown Trip Points
40
Power Fail and Shutdown Trip Points (Approximate)
40
Removing/Replacing the I/O Cover
41
Connecting Communication Ports (3CPU16/3CPUSG)
41
Communication Terminal Blocks on the CPU Module
42
Connecting to COM1 (3CPU16/3CPUSG)
43
Connecting to COM2 (3CPU16/3CPUSG)
46
Connecting to COM3 (3CPU16/3CPUSG)
49
Connecting to COM4 (3CPU16/3CPUSG)
51
Ethernet and Micro USB Port (CPU Module)
53
D301851X012 November 2023
53
Connecting Additional Serial Communication Ports (COM04/3SERL4/3SRSG4 Module)
54
Wiring the Ports on the 3SRSG4 Personality Module
54
Communication Terminal Blocks on
54
Com04
54
Connecting a Serial Port to an RS-232 Device (3SRSG4)
55
4-Port Communications Module
55
Connecting a Serial Port to an RS-485 (4-Wire) Device (3SRSG4)
56
Connecting a Serial Port to an RS-485 (2-Wire) Device (3SRSG4)
57
Connecting a Serial Port to a Rosemount 4088B Transmitter (3SRSG4)
58
Connecting a Serial Port to Multiple Rosemount 4088B Transmitter (Multi-Drop) (3SRSG4)
59
Chapter 3. I/O Configuration and Wiring
61
12-Channel Mixed I/O Module Configuration (3MIX12/3MSG12/MIO12)
62
Analog Inputs (3MIX12/3MSG12)
62
Analog Input Characteristics
62
Analog Outputs (3MIX12/3MSG12)
64
Analog Output Characteristics
64
Digital Inputs (3MIX12/3MSG12)
66
Digital Input Characteristics
66
Digital Outputs (3MIX12/3MSG12)
67
Digital Output Characteristics
68
Pulse Inputs (3MIX12/3MSG12)
72
Pulse Input Characteristics
72
HART ® Input/Output Channels (3HRT04/3HRTSG4/HRT04)
74
Point-To-Point Mode
74
Multi-Drop Mode
76
Analog Input Mode (HART Communications Disabled)
78
Analog Output Mode (HART Communications Disabled)
79
Software Configuration
80
8-Channel Output Module Configuration (3AODO8/3OTSG8/OUT08)
81
Analog Outputs (3AODO8/3OTSG8/OUT08)
81
Digital Outputs (3AODO8/3OTSG8/OUT08)
83
Chapter 4. Operation
85
Powering Up/Powering down the Device
85
Establishing Communications
85
Communicating with the SCADA Host
85
Communicating with a Laptop Using a Serial Port
86
Communicating with a Laptop Using Ethernet
86
Maintaining Backups
87
Backing up Historical Data and Your Configuration
87
Backing up Your Solution
88
Chapter 5. Service and Troubleshooting
89
Returning the Unit for Repairs
90
Interpreting the Status Leds
91
LED Descriptions - 8-Channel Output Module
95
Removing/Replacing the Power Module
97
Removing a Power Module
97
Replacing a Power Module
97
Removing/Replacing the SRAM Batteries
98
Battery in Power Module
99
Battery in CPU Module
99
Removing/Replacing the CPU Logic Module (3CPU16)
100
Removing/Replacing an I/O or Communications Logic Module
102
Removing/Replacing a Personality Module
