1.3 Appearance and Components
1.3.1 Appearance
The Liebert GXT4 rack/tower models in various power ratings have the same general appearance,
controls and features (see Figure 1-1). The various rack/tower models differ largely in the type of
receptacles each has.

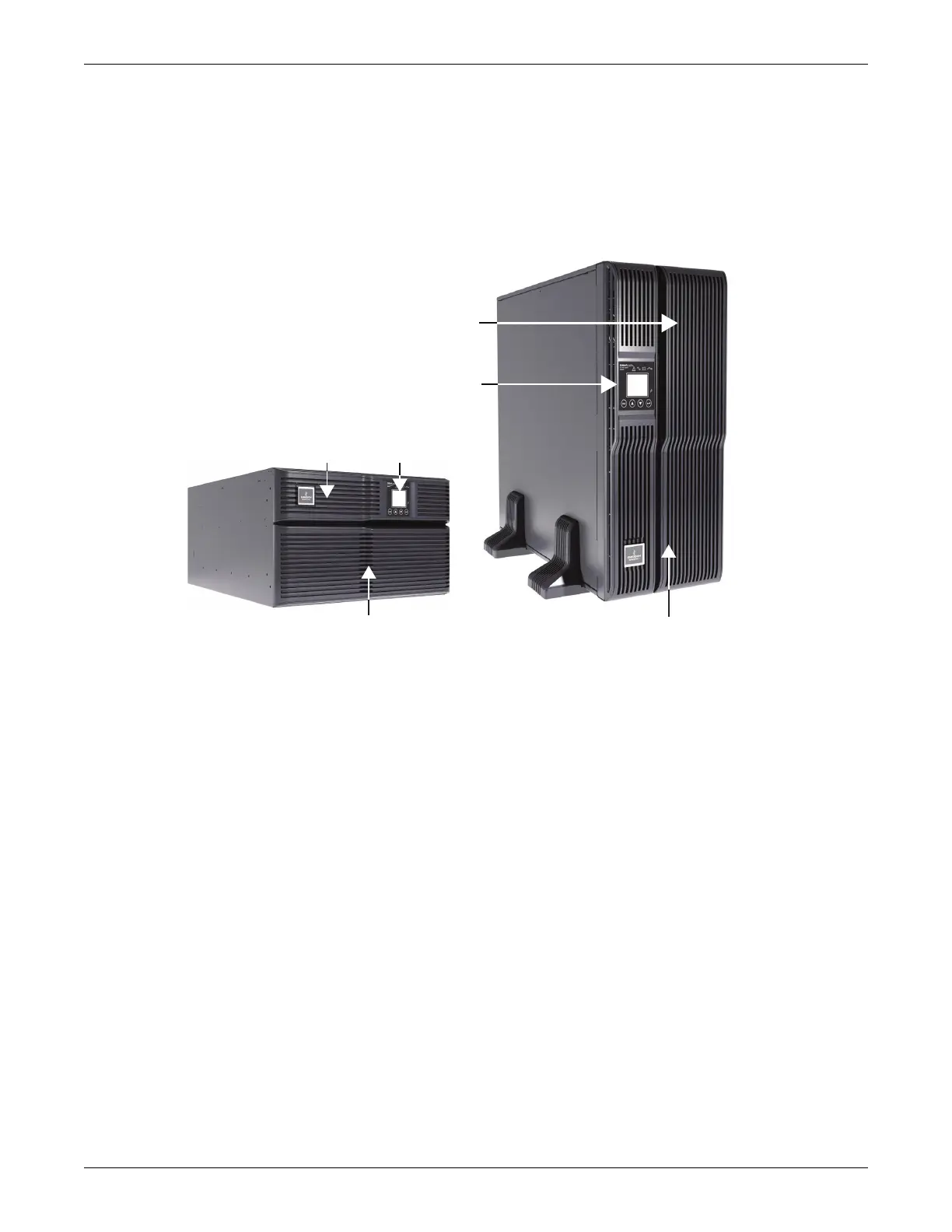

Figure 1-1 Liebert GXT4 5000VA and 6000VA, front view
1.3.2 Rear Panel Features
The rear panel of the Liebert GXT4 has these features:
• Liebert IntelliSlot
®
Port
• USB port
• Input Circuit Breaker
• Maintenance Bypass Circuit Breaker
• General Output ReceptaclesExternal Battery Connector
• Cooling Fan
• Terminal Block Communication
• Output Circuit Breakers
Upper Bezel
Operation and Display Panel
Lower Bezel and Battery Access DoorLower Bezel and Battery Access Door
Upper Bezel
Operation and
Display Panel
