Product Description
Liebert
®
GXT4
™
User Manual 8
1.4 Removable Power Distribution Box
The UPS is shipped with a power-distribution pack installed. This box contains the UPS input circuit
breaker.

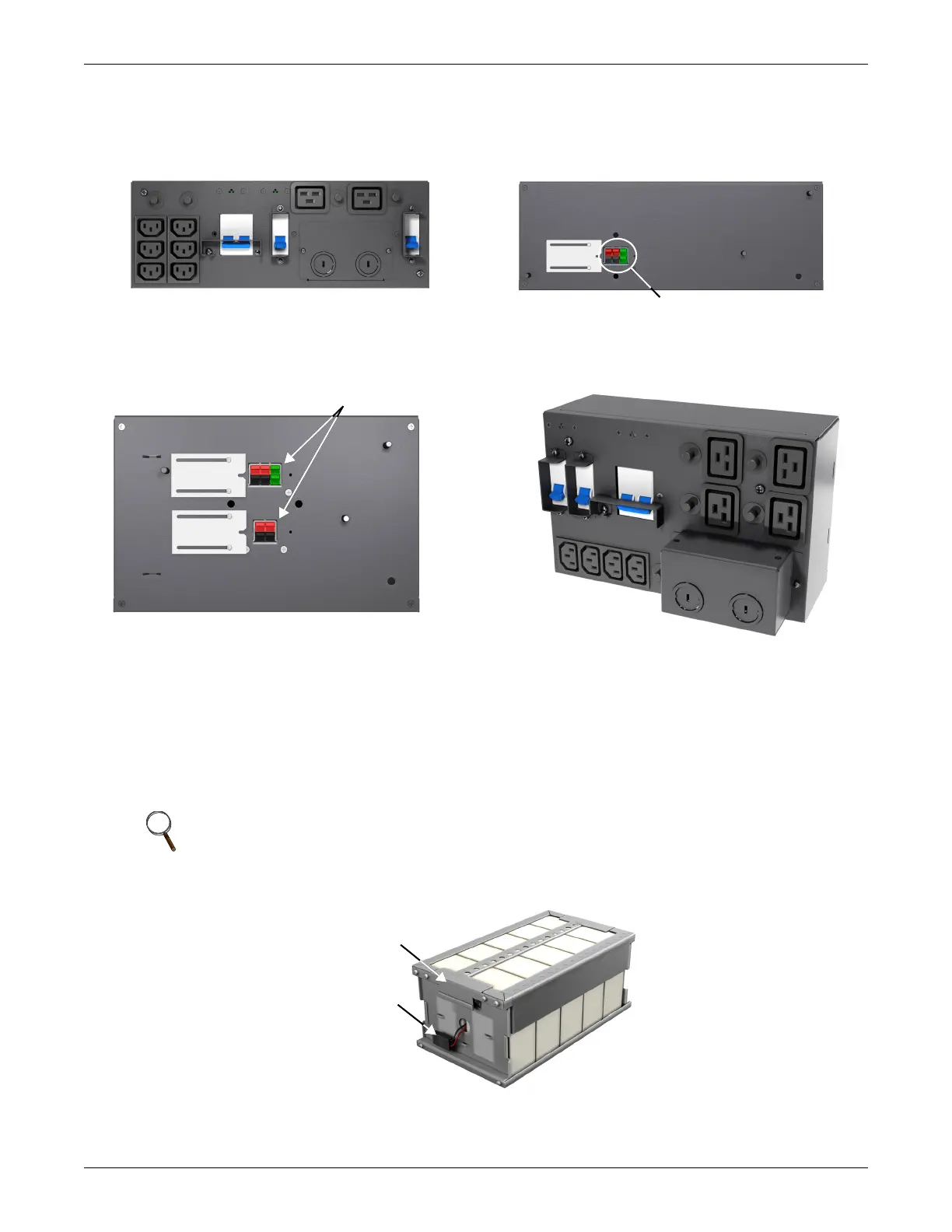

Figure 1-4 Power distribution box for 5000 VA and 6000 VA models
Figure 1-5 Power distribution box for 10,000 VA models
1.5 Internal Battery Packs
The UPS has two internal battery packs behind a battery access door on the front of the unit. Each internal
battery pack is fitted with a connector to link to the UPS.
Figure 1-6 Internal battery pack with connector
NOTE
GXT4 10,000-VA battery pack shown in Figure 1-6. 5000-VA and 6000-VA
battery packs have the same features.
Outer Surface View
Quick-Connect
Front View
Power Distribution Box for 10000VA model
PD2-CE10HDWRMBS
Inner Surface View
Power Distribution Box for 10000VA model
PD2-CE10HDWRMBS
Quick-Connects
Battery Connector
Front of Battery Pack
Battery Handle
