16 Chapter 3 Mechanical Installation
Liebert.CRV+ Series Air Cooled Precision Air Conditioner User Manual
水泵排水孔
水盘排水管
水盘排水孔
水泵排水管
A
Drainage pipe of water tray
Drainage hole of water tray
A
Drainage pipe of pump
Drainage hole of pump
排水接 头
上排水 铜管
Drainage pipe(copper)
Drainage pipe connector
A amplified (left side)

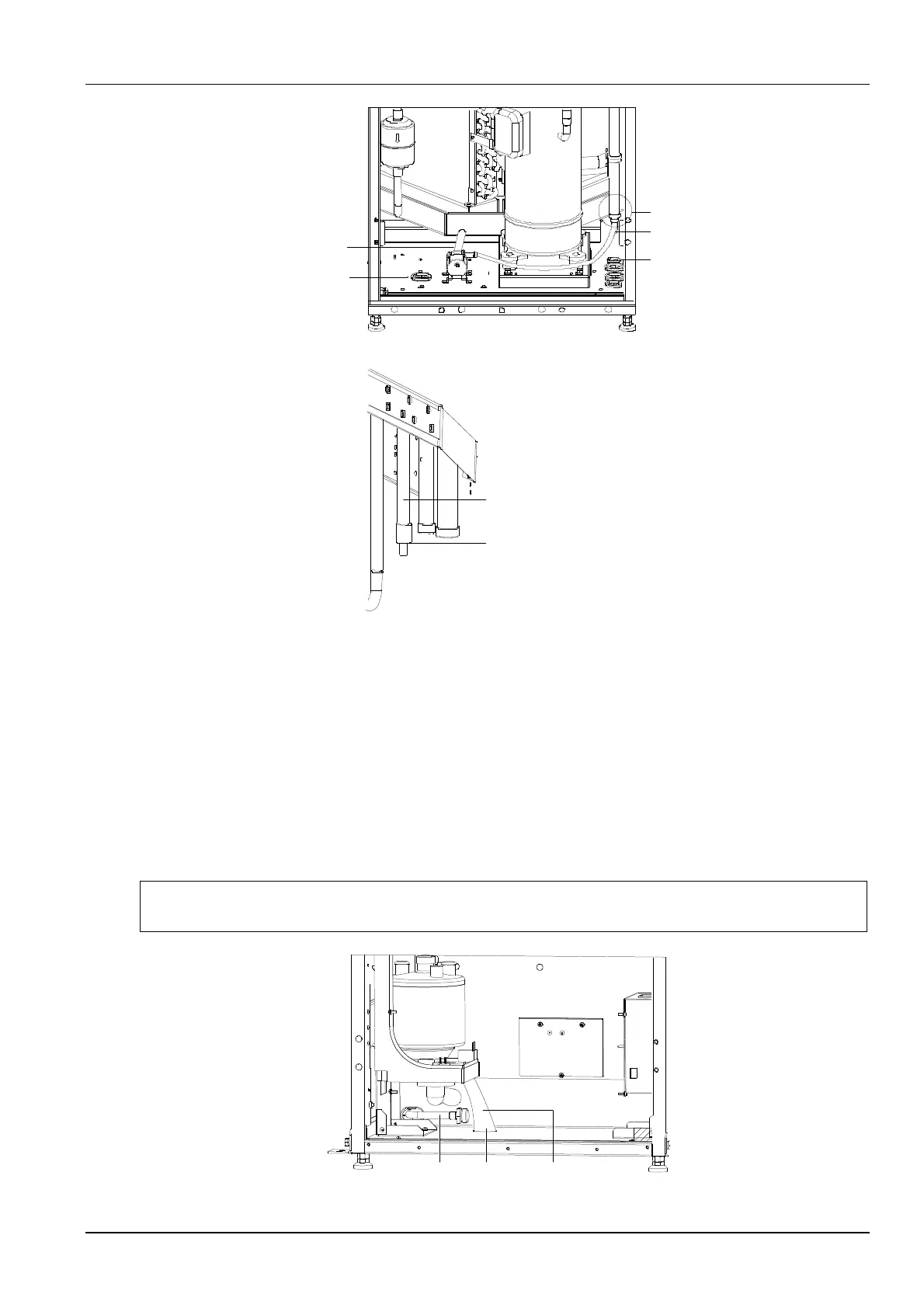

Figure 3-14 Connection of drainage pipe
3.4.3 Connecting Water Inlet Pipe Of Electrode Humidifier
Water pipes should be connected for the electrode humidifier. The unit adopts top water inlet mode by default. If you
need to fill water from the top, do not change the water inlet pipe in the unit, you only need to connect a water inlet
pipe to the water inlet hole (see Figure 3-16, the pile connector has been connected, 1/2"-BSP) on top of the cabinet;
if you need to fill water from the bottom, unscrew the connector (connected with the copper pipe, 3/4"GAS) of the
water inlet soft pipe of humidifier, lead the water inlet soft pipe through the rubber plug hole close to the humidifier,
and connect it to the outer water inlet pipe. Screw down the threaded connector on the water inlet pipe for fixing (A
seal ring is inside without PTFE tape.), as shown in Figure 3-15. Other connecting mode can also be selected in
engineering, but the connection must be sealed to avoid water leaking, and the pressure range of main pipe should
be 100kPa ~ 700kPa.
Note
Some product may contain components involved in local laws and regulations.
Water inlet
soft pipe
Water inlet
hole
Top water inlet
copper pipe
Figure 3-15 Connection of bottom water inlet pipe of electrode humidifier
