Chapter 3 Mechanical Installation 13
Liebert.CRV+ Series Air Cooled Precision Air Conditioner User Manual
Top fixing hole
Top fixing hole
Bottom fixing hole
Bottom fixing hole

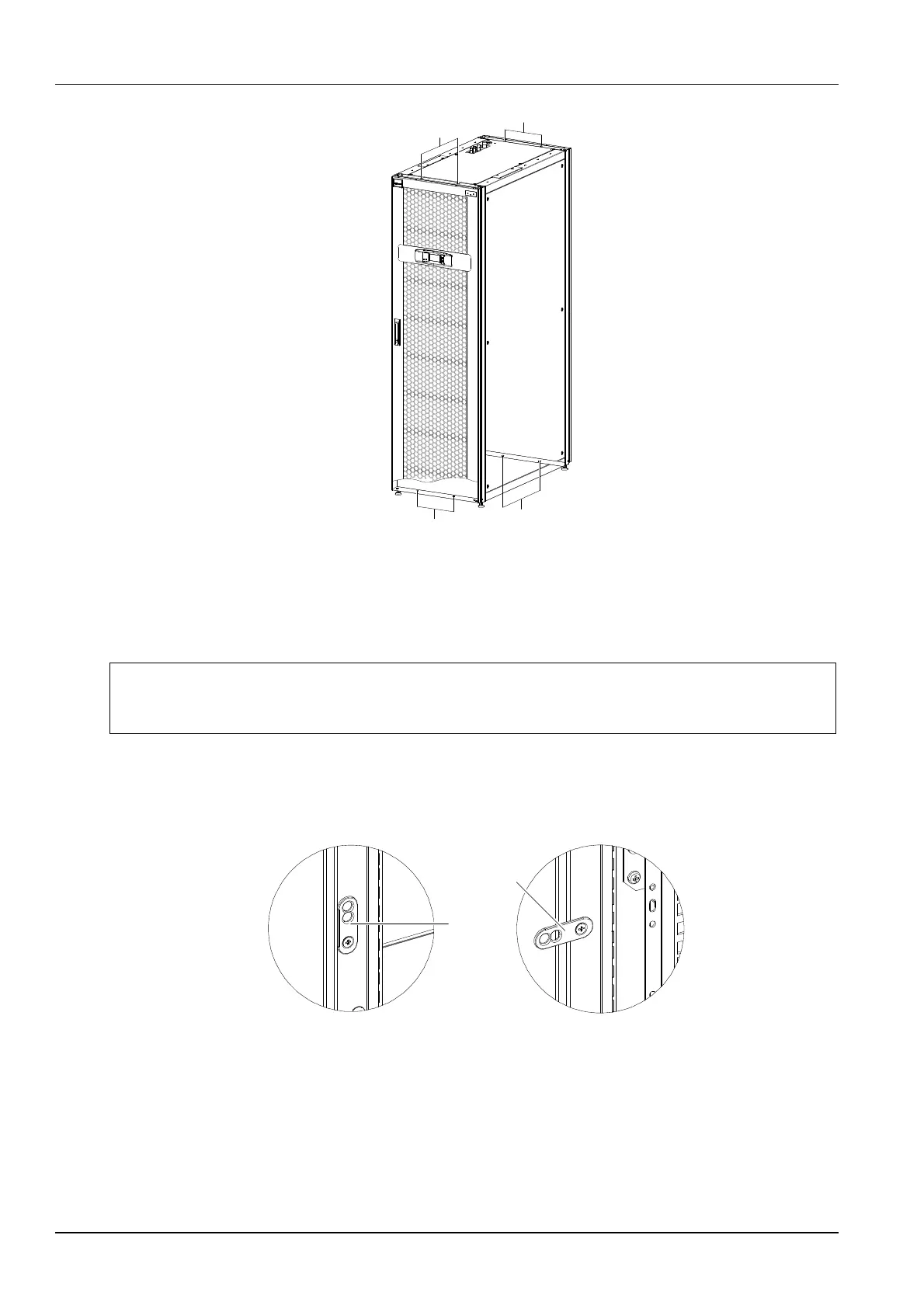

Figure 3-9 Fixing holes of cabinet
3.3.3 Cabinet Connection
The cabinet connectors are provided in accessories. You can connect the unit with adjacent cabinets through the
cabinet connectors.
Note
Before connecting the cabinet, please level the cabinet first. Refer to 3.3.1 Leveling The Cabinet in this
section for the method.
Procedures for connecting the cabinet:
1. Loosen the fixing screw of the cabinet connector on the cabinet frame, and rotate the cabinet connector 90° to
horizontal position, and use M5 countersunk head screws to fix it on the cabinet frame (side of the door lock), as
shown in Figure 3-10.
Cabinet
connector
Cabinet
connector
Figure 3-10 Rotating the cabinet connector
2. Use the M5 countersunk head screws to fix the cabinet connector (L shape) in the installation holes of the cabinet
frame (side of the hinge) and the rack frame adjacent to the cabinet, as shown in Figure 3-11.
