8 Chapter 3 Mechanical Installation
Liebert.CRV+ Series Air Cooled Precision Air Conditioner User Manual
Chapter 3 Machanical Installation
This chapter expounds the mechanical installation of the CRV+ air cooled AC unit, including installation notes, system
arrangement, installing indoor unit, installing outdoor unit, piping, removing transportation fastener and vibration
absorber, and checklist for completed installation.
3.1 Installation Notes
To realize the designed performance and maximize the product life, correct installation is vital. This section should be
applied in conjunction with the prevailing industry standards of mechanical and electrical installation.
1. The CRV+ air cooled AC unit is designed for split floor installation. The indoor unit must be installed on the floor of
the equipment room or computer room, and the outdoor unit can be installed outdoors or on the floor of other rooms.
2. Before the installation, make sure that the installation environment meets the requirements (refer to 2.3
Environmental Requirements) and confirm whether the building needs to be transformed to accommodate the
construction work of piping, wiring and ventilation ducts.
3. Follow the design drawings strictly when installing the equipment, and reserve space for daily maintenance and
service. The manufacturer’s engineering dimension drawings can be served as a reference.
3.2 System Arrangement
3.2.1 General Arrangement

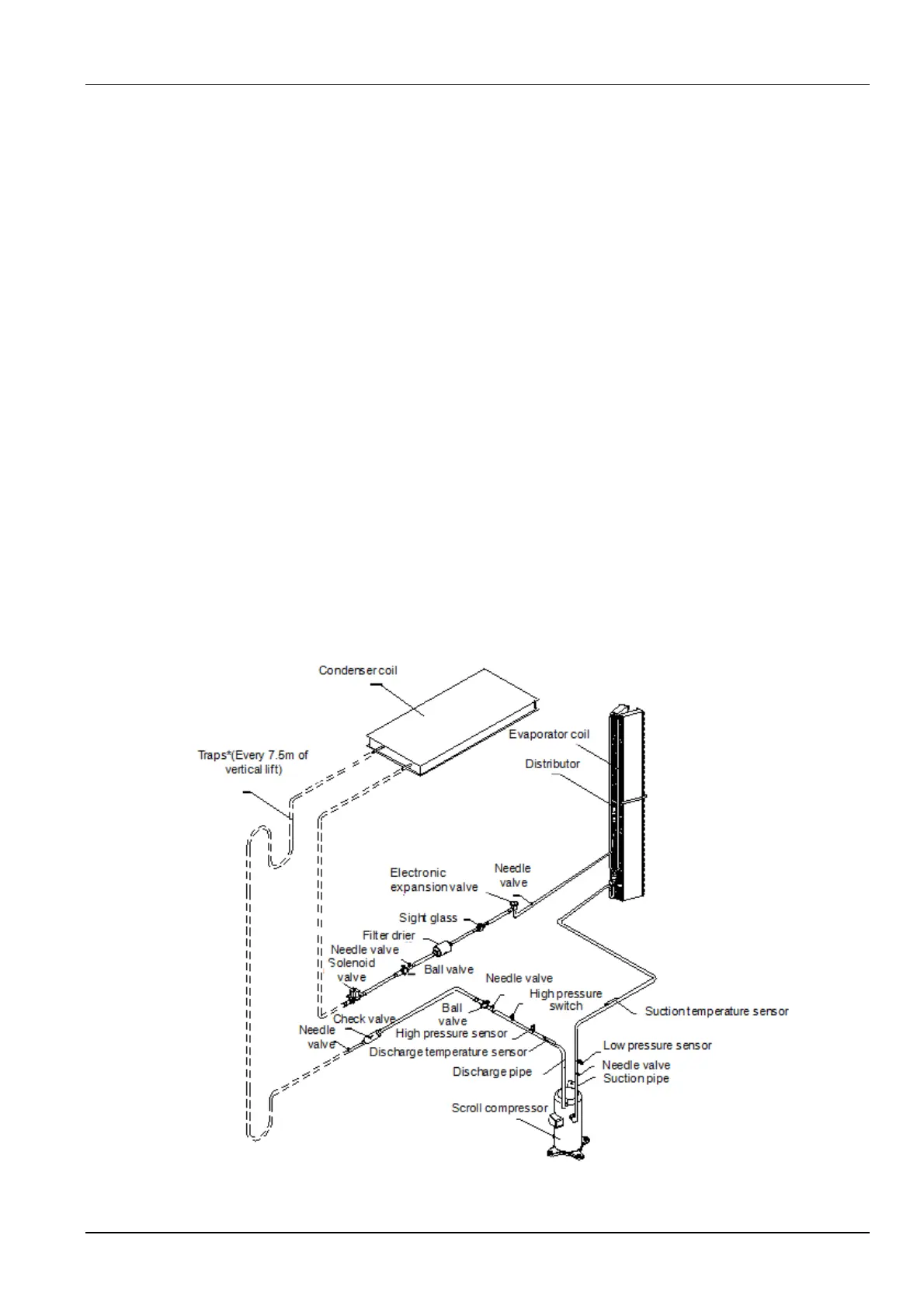

The general arrangement of the CRV+ air cooled AC unit is shown in Figure 3-1.
Figure 3-1 Overall system arrangement
To Next Page
