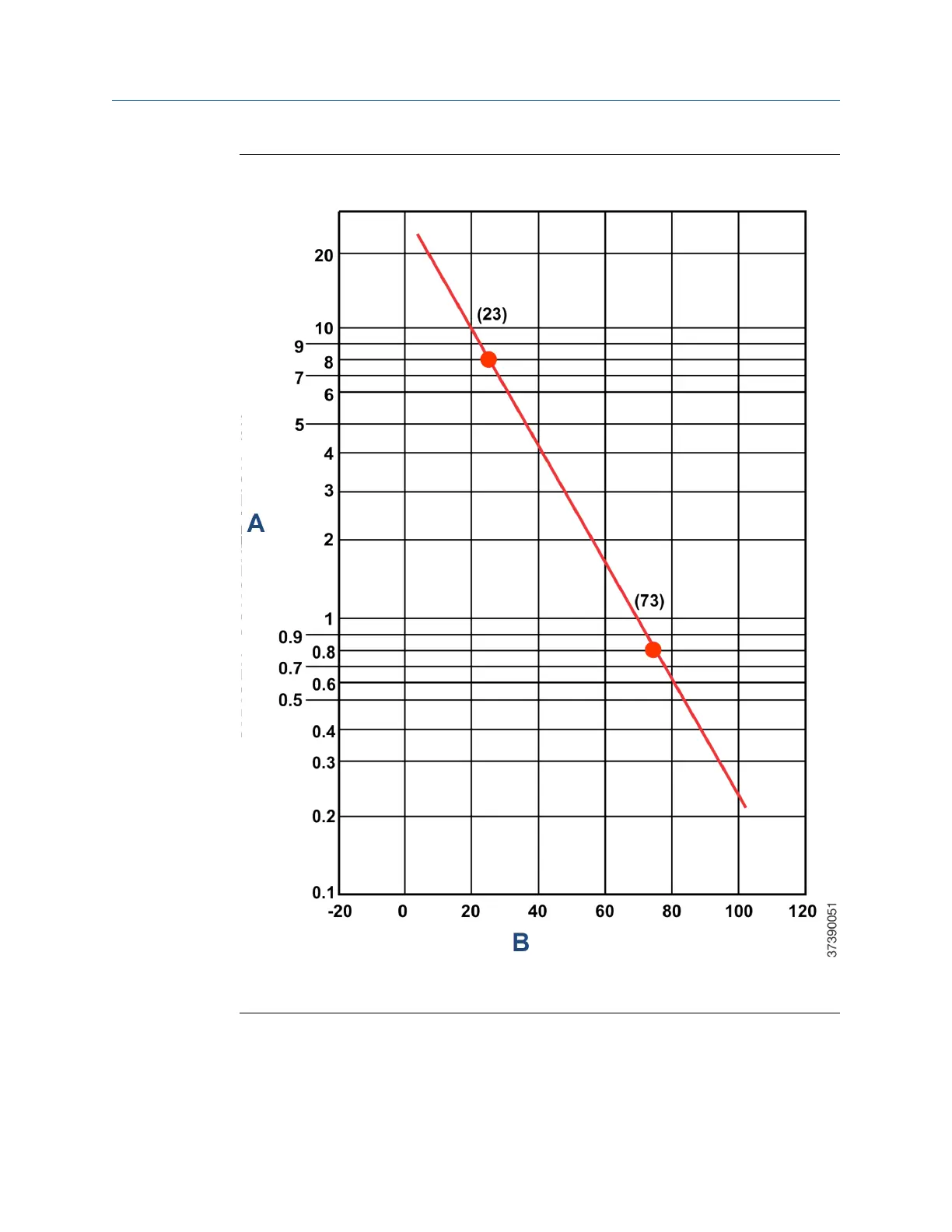

Figure 9-3: Oxygen and Cell Output
A. Oxygen concentration (percentage)
B. Transmitter output (millivolt)
9.3.1
O2 Sensor R High or O2 Sensor Open
Oxygen sensor resistance high, > 5000 ohms or oxygen sensor disconnected.
