4 Using the local operator interface
(LOI)
This section describes the installation and operation of the LOI module in the
Rosemount OCX8800.
4.1 Display orientation
The local operator interface (LOI) module mounts to a connector on the LOI
board.
The board is installed on the end of the electronics stack in the electronics
housing, Figure 4-1. There are four mating connectors on the back of the LOI
module that allow the LOI to be oriented as desired.

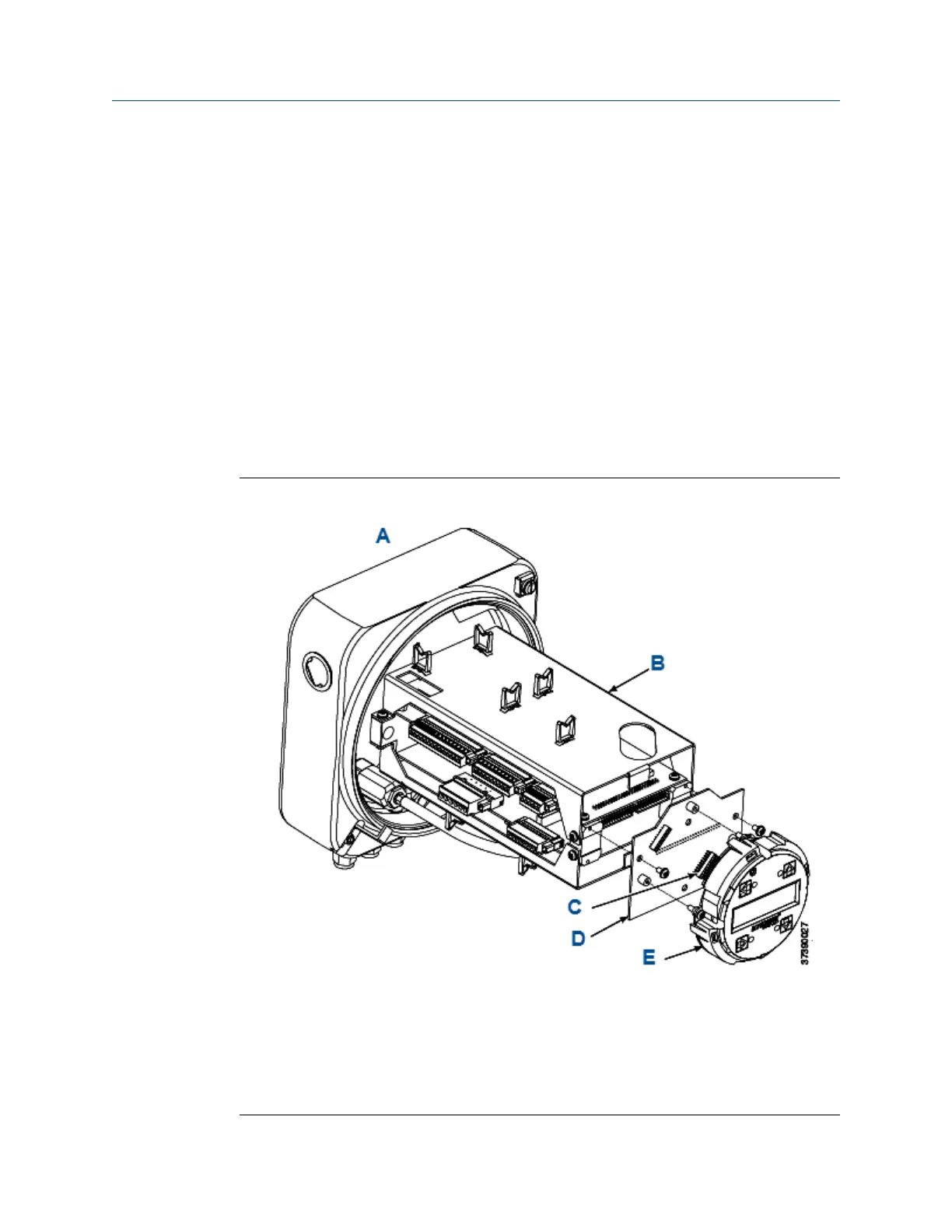

Figure 4-1: LOI components mounting
A. Electronics housing (cover removed)
B. Electronics stack
C. LOI connector
D. LOI board
E. LOI module
