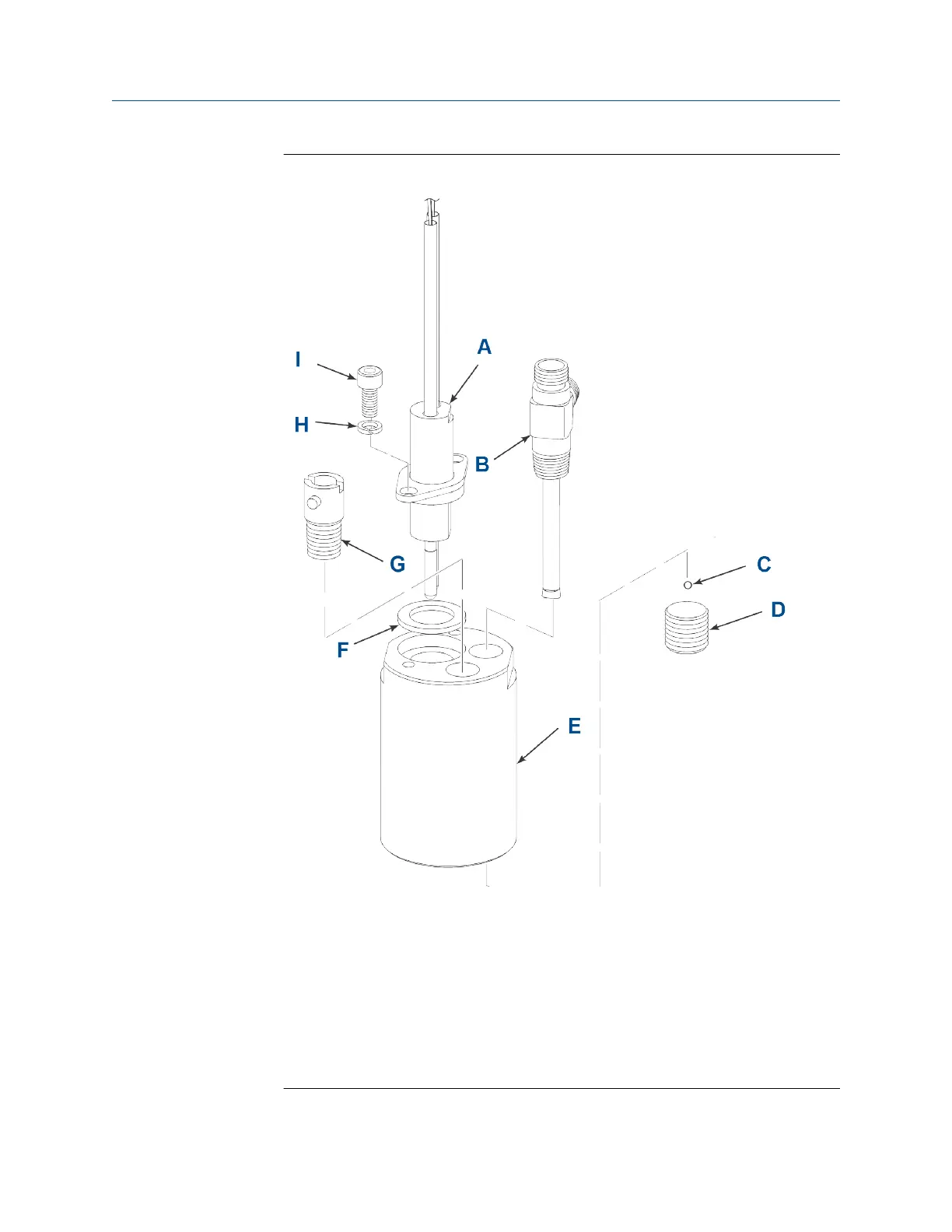

Figure 10-15: COe Sensor, Exploded View
A. COe sensor
B. Pre-heater
C. Stainless steel balls
D. Plug
E. Sensor holder
F. Gasket
G. Thermocouple adapter
H. Lockwasher
I. Screw
Manual Maintenance and service
00809-0500-4880 December 2022
Rosemount OCX8800A 265
