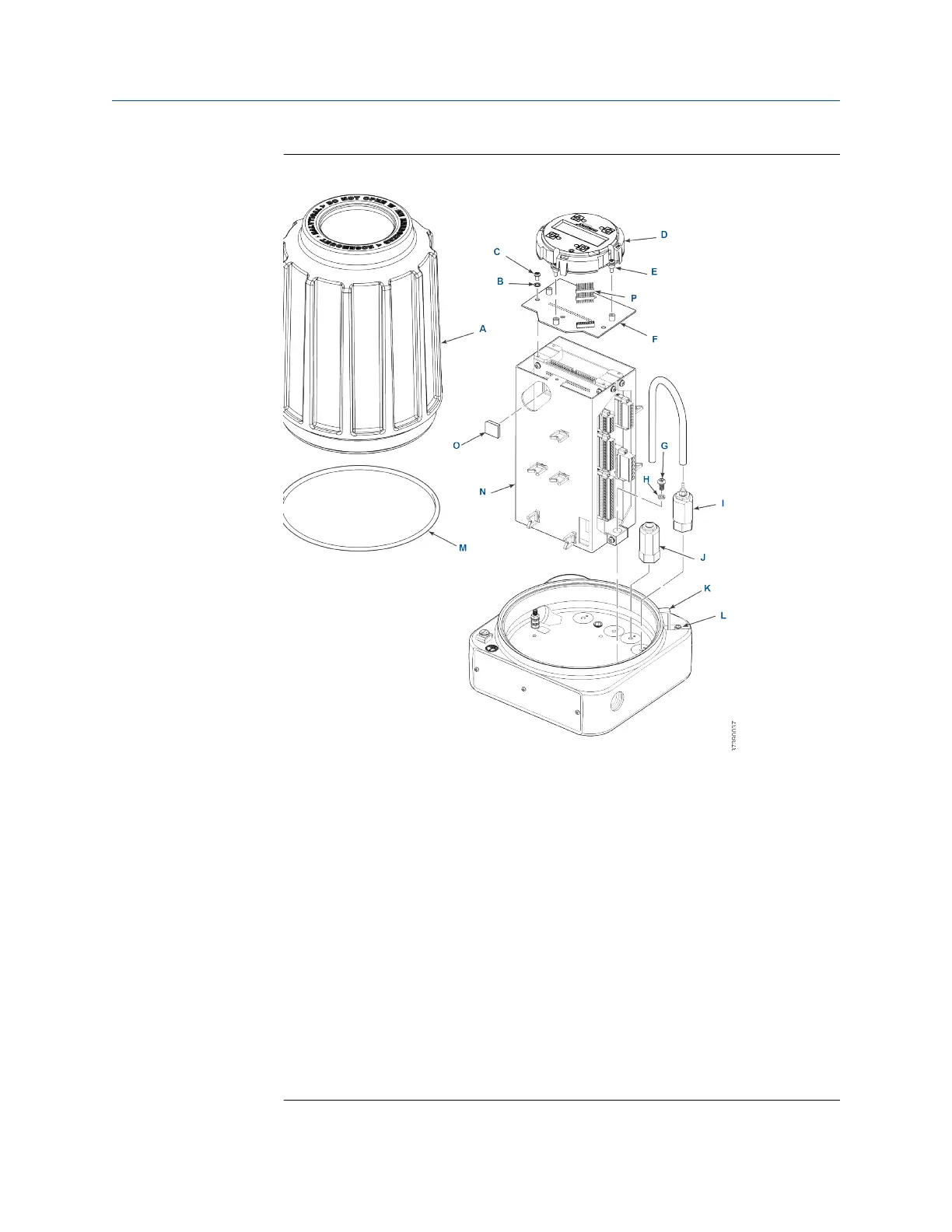

Figure 10-25: Removal/Installation of Electronics Housing Components
A. Cover
B. Lockwasher
C. Screw
D. Local operator interface (LOI) module
E. Screw
F. LOI board
G. Screw
H. Lockwasher
I. Solenoid valve (three-way)
J. Solenoid valve
K. Locking clip
L. Screw
M. O-ring
N. Electronics stack
O. Flash PROM
P. LOI connector
