48 Unidrive SP Regen Installation Guide
www.controltechniques.com Issue Number: 2

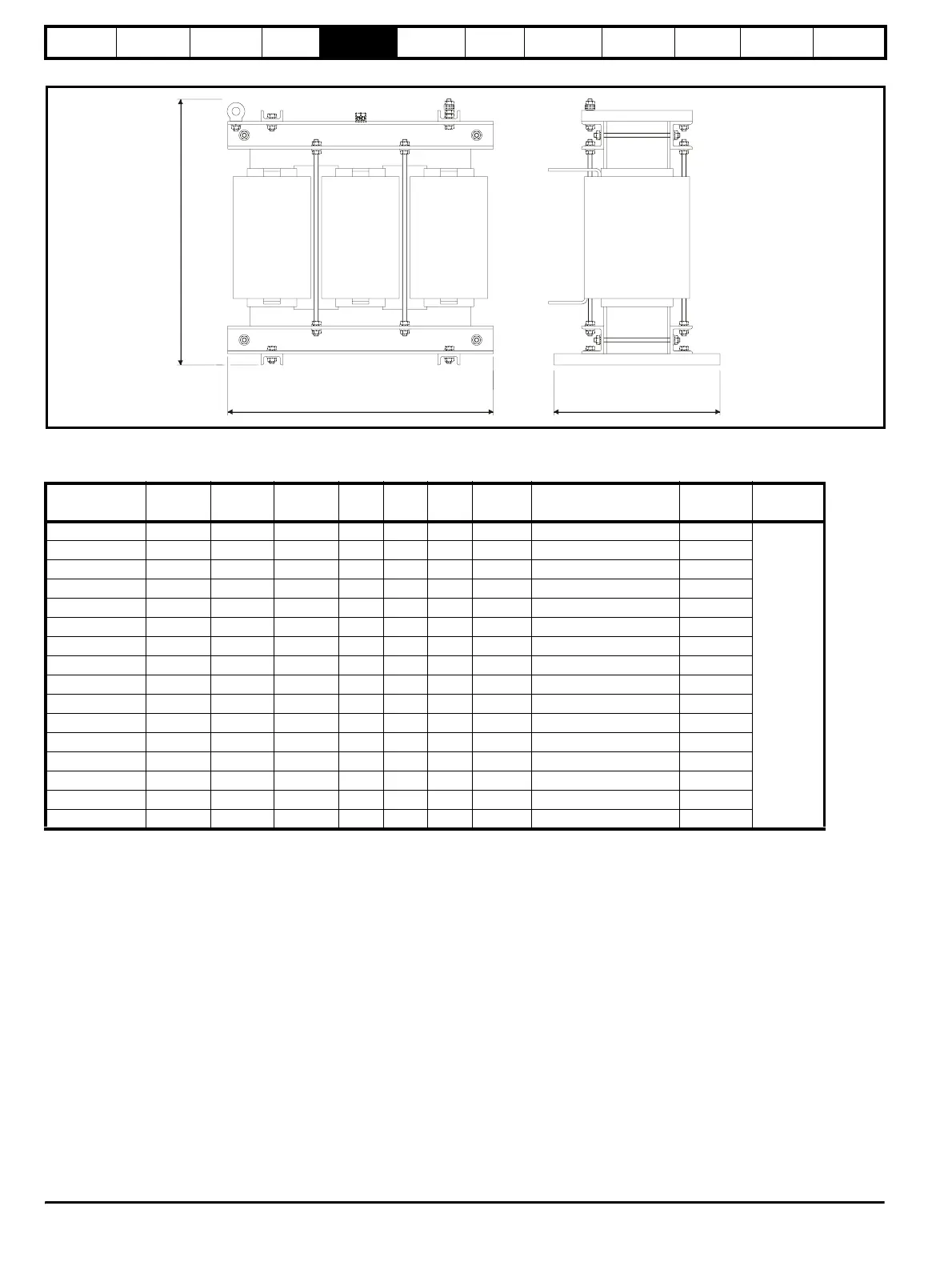

Figure 5-4 Regen inductor type 3 dimensions
5.3.2 Switching frequency filter inductor
Table 5-4 200V SFF inductor specifications
A2 B2 C2
A1 B1 C1
H
LD
TH
Inductor part
number
Amps mH
Losses
W
L
mm
D
mm
H
mm
Weight
kg
Fixing centres (x * y)
mm
Fixing
mm
Fixing
type
4401-1310 9.6 0.88 10 150 90 150 4 120 x 47 8 x 18
B
4401-1311 11.0 1.50 18 150 90 150 4 120 x 47 8 x 18
4401-1312 15.5 1.10 26 150 90 150 4 120 x 47 8 x 18
4401-1313 22 0.70 33 150 90 150 4 120 x 47 8 x 18
4401-1314 31 0.50 37 190 100 180 6 130 x 54 8 x 20
4401-1315 42 0.40 38 190 120 180 10 130 x 74 8 x 20
4401-1316 56 0.30 48 190 160 180 12 130 x 184 8 x 20
4401-1317 68 0.25 58 190 160 180 12 130 x 184 8 x 20
4401-1318 80 0.20 60 190 160 180 13 130 x 184 8 x 20
4401-1319 105 0.16 78 255 160 240 16 200 x 180 10 x 20
4401-1320 130 0.13 86 255 170 240 20 200 x 90 10 x 20
4401-1321 156 0.11 92 255 180 240 22 200 x 100 10 x 20
4401-1322 192 0.088 97 255 190 240 25 200 x 100 10 x 20
4401-1323 250 0.068 119 300 180 300 37 204 x 113 10 x 20
4401-1324 312 0.055 170 300 180 300 37 204 x 113 10 x 20
4401-1325 350 0.048 162 300 190 300 49 204 x 123 10 x 20
