52 Unidrive SP Regen Installation Guide
www.controltechniques.com Issue Number: 2

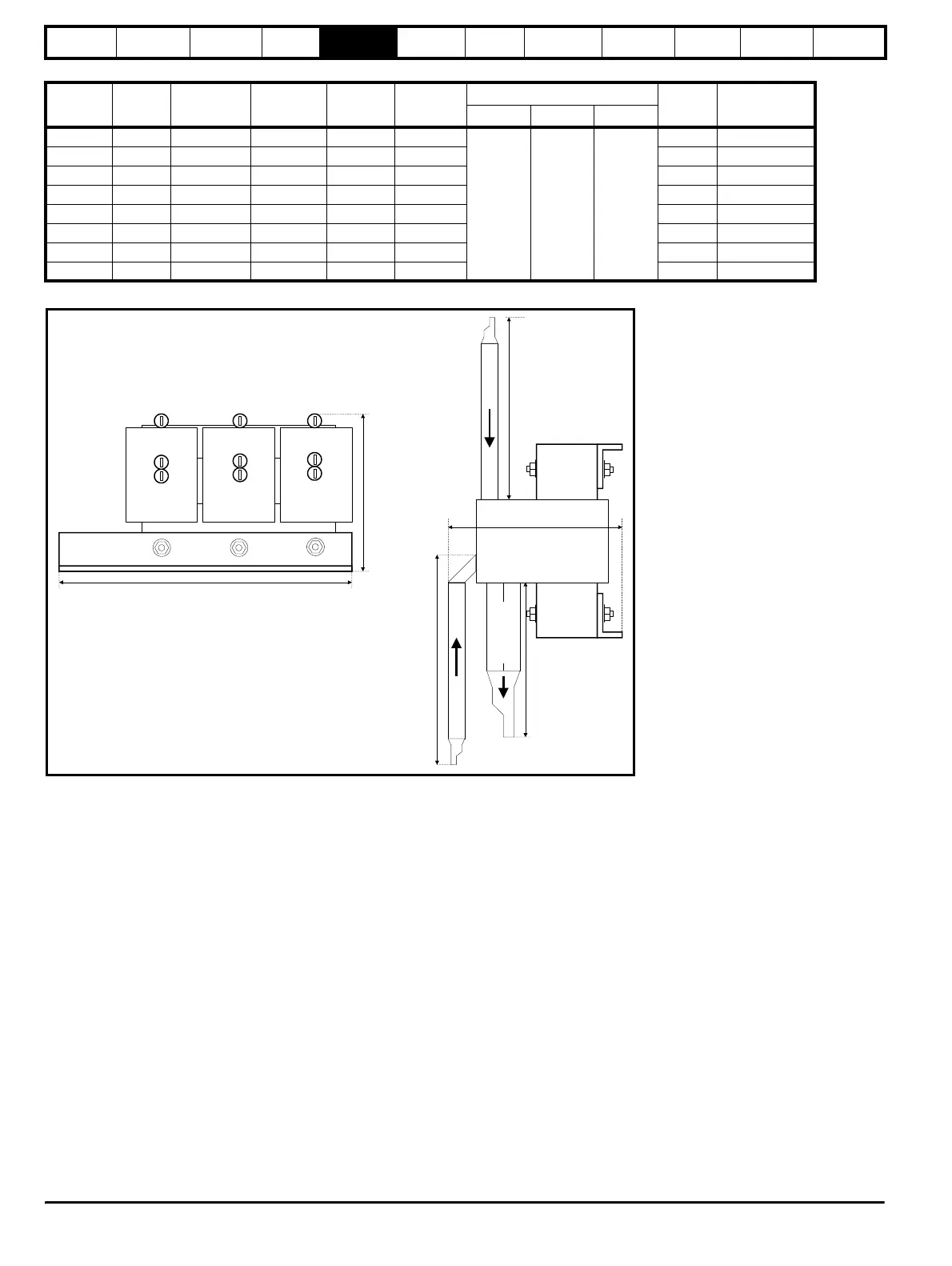

Table 5-8 400 / 600V centre tapped output sharing choke ratings
Figure 5-12 OTLx1x centre tapped dual output sharing choke
Model
Current
A
Inductance
µH
Width (W)
mm
Depth (D)
mm
Height (H)
mm
Cable length mm
Weight
kg
Part No.
CLa CLb CLc
OTL411 389.5 42.8 300 150 160
335 335 265
8 4401-0188-00
OTL412 470.3 36.7 300 150 160 8 4401-0189-00
OTL413 551 31.1 300 150 160 8 4401-0192-00
OTL414 665 26.6 300 150 160 9 4401-0186-00
OTL611 237.5 110.4 300 150 160 8 4401-0193-00
OTL612 273.6 88.4 300 150 160 8 4401-0194-00
OTL613 319.2 76.7 300 150 160 8 4401-0195-00
OTL614 364.8 65.7 300 150 160 8 4401-0196-00
U motor V motor
W motor
H
W
U, V, W (a)
U, V, W motor
U, V, W (b)
D
CL(b)
CL(a)
CL(c)
Ua Va
Wa
M10
M10
M10
