16 Unidrive SP Regen Installation Guide
www.controltechniques.com Issue Number: 2

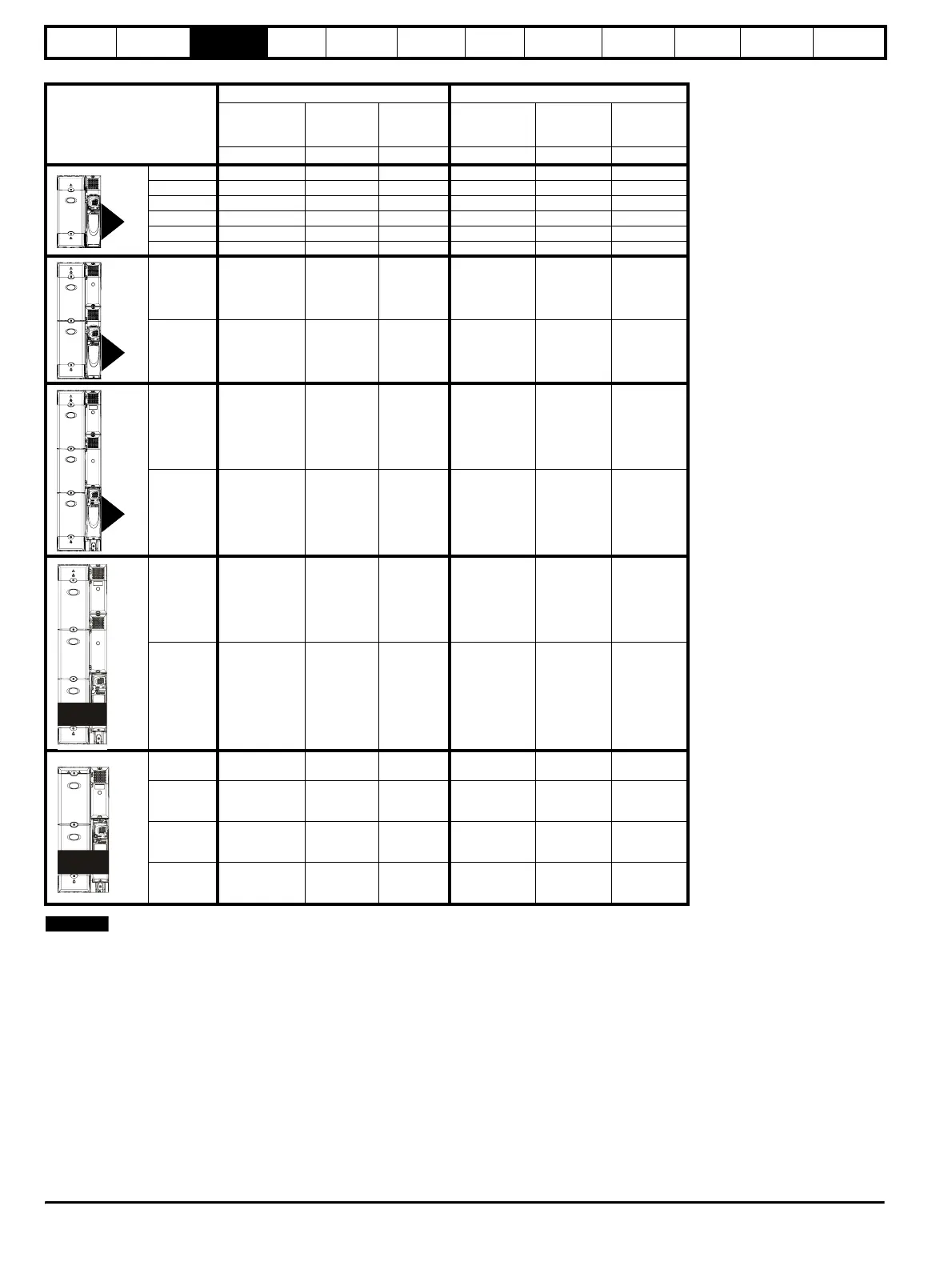

Table 3-4 690V Drive ratings (690V ±10%)
The above current ratings are given for max 40°C (104°F), and 3.0 kHz switching. Derating is required for higher switching frequencies, ambient
temperature >40°C (104°F) and high altitude. For further information, refer to both the Unidrive SP and SPM User Guides.
Model
Normal Duty Heavy Duty
Maximum
continuous
output current
Nominal
power
at 690V
Motor
power
at 690V
Maximum
continuous
output current
Nominal
power
at 690V
Motor
power
at 690V
AkWhpAkWhp
4601 22 18.5 25 19 15 20
4602 27 22 30 22 18.5 25
4603 36 30 40 27 22 30
4604 43 37 50 36 30 40
4605 52 45 60 43 37 50
4606 62 55 75 52 45 60
5601 84 75 100 63 55 75
5602 99 90 125 85 75 100
6601 125 110 150 100 90 125
6602 144 132 175 125 110 150
1601 125 110 150 100 90 125
1602 144 132 175 125 110 150
1601 125 110 150 100 90 125
1602 144 132 175 125 110 150
1603 168 160 200 144 132 175
1604 192 185 250 168 160 200
4
55
56
SPMA
SPMD
NOTE
