Fan Alarms (AF1-AF17)
Dynamic Setpoint Suction (o1-o8)
Condenser Set point (O9-O14)
Analog outputs configuration (1Q1, 3Q1)
Analog Outputs 1 (1Q1-1Q26)
Analog Outputs 2 (2Q1-2Q25)
Analog outputs 3 (3Q2-3Q26)
Analog outputs 4 (4Q1-4Q25)
Auxiliary Outputs (AR1-AR12)
Other (oT1-OT9)
NOTE: some sub menu could be absent depending on the model.

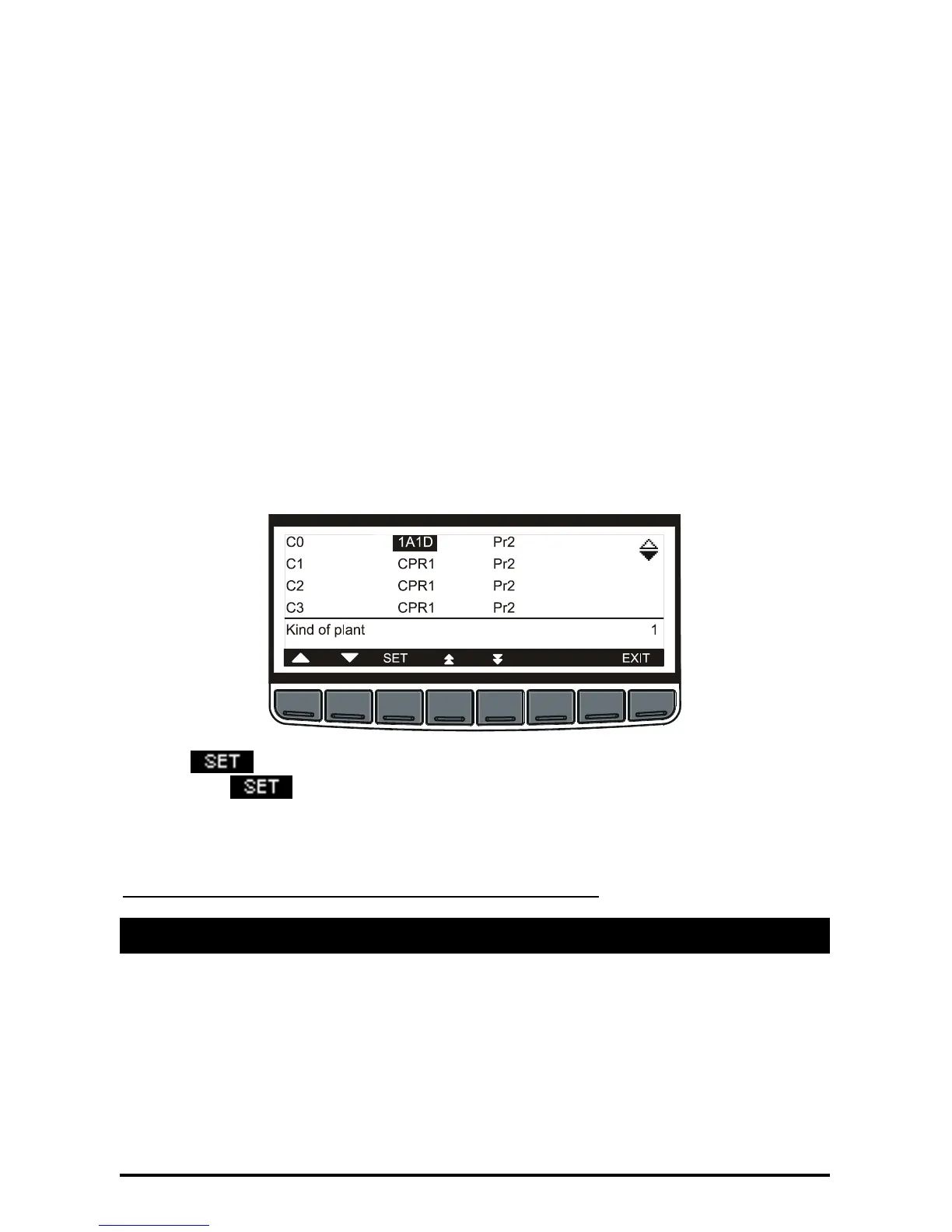

Push the SET key to enter a menu and the parameter with their value will be displayed: see below
picture.
Push the key and use the UP and DOWN keys to modify the value.
Then push the key to store the new value and move to the following parameter.
NOTE: the Pr2 or Pr1 message is present only in Pr2 menu.
It is possible to modify the level of each parameter changing Pr2 Pr1 or vice versa.
NOTE: Pushing the EXIT button the initial screen shot is displayed.
